80SK18 Sprocket (QD Type)

80SK18 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$80.99
$80.99
In Stock
On Sale Sold out
Product Code: 80SK18-SPROCKET
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
Economy Plus #80 Roller Chain - 10ft Box
Economy Plus #80 Roller Chain - 10ft Box
Login
General Duty Plus #80 Roller Chain - 10ft Box
General Duty Plus #80 Roller Chain - 10ft Box
$159.99
Login
Premium #80 Roller Chain - 10ft Box | Premier Series Chain
Premium #80 Roller Chain - 10ft Box | Premier Series Chain
$259.99
Login
View full details
Description
Specification

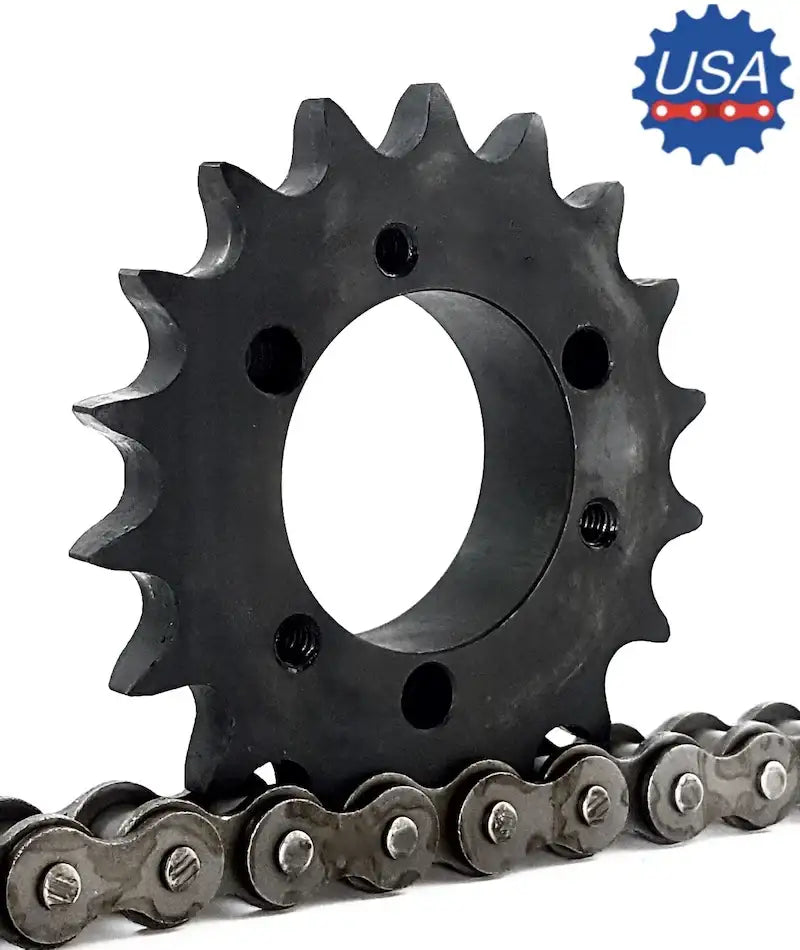

This 80SK18 sprocket is a durable, high quality, and precision sprocket with 18 hardened teeth that is manufactured to accept an SK bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #80 roller chain and sprocket. This also prevents premature wear or breakage and means that the sprocket will directly interchange with other manufactures sprockets. This sprocket is also black oxide coated thus increasing resistance to the environment and will prevent early corrosion. 80SK18 sprockets are manufactured to accept a SK type QD bushing which, we also stock with a wide range of bore sizes. Additionally offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

Dimensions:

  • Sprocket Size: 80SK18
  • Tooth Count: 18
  • Bushing Type: SK
  • Outside diameter: 6.270"
  • Pitch Diameter: 5.759"
  • Sprocket Type: B
  • Dimension (L1): 2-1/8"
  • Dimension (L2): 2-1/8"
  • Dimension (C): 3-7/8"
  • Dimension (Y): 1-19/64"
  • Dimension (G): 21/32"
  • Dimension (X): 1-1/4"
  • Dimension (T): 0.575"
  • Bushing Weight: 2.00 LBS
  • Sprocket Weight: 3.9 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Sprocket
  • Manufactured Using High-Quality Steel
  • Fully Meets ANSI Standards
  • Black Oxide Coated For Corrosion Resistance
  • Directly Interchanges With Other Manufactures
  • Extremely Durable Construction With High-Performance
Featured image
  • Sprocket Size: 80SK18
  • Tooth Count: 18
  • Bushing Type: SK
  • Outside diameter: 6.270"
  • Pitch Diameter: 5.759"
  • Sprocket Type: B
  • Dimension (L1): 2-1/8"
  • Dimension (L2): 2-1/8"
  • Dimension (C): 3-7/8"
  • Dimension (Y): 1-19/64"
  • Dimension (G): 21/32"
  • Dimension (X): 1-1/4"
  • Dimension (T): 0.575"
  • Bushing Weight: 2.00 LBS
  • Sprocket Weight: 3.9 LBS
