General Duty Plus #80 Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

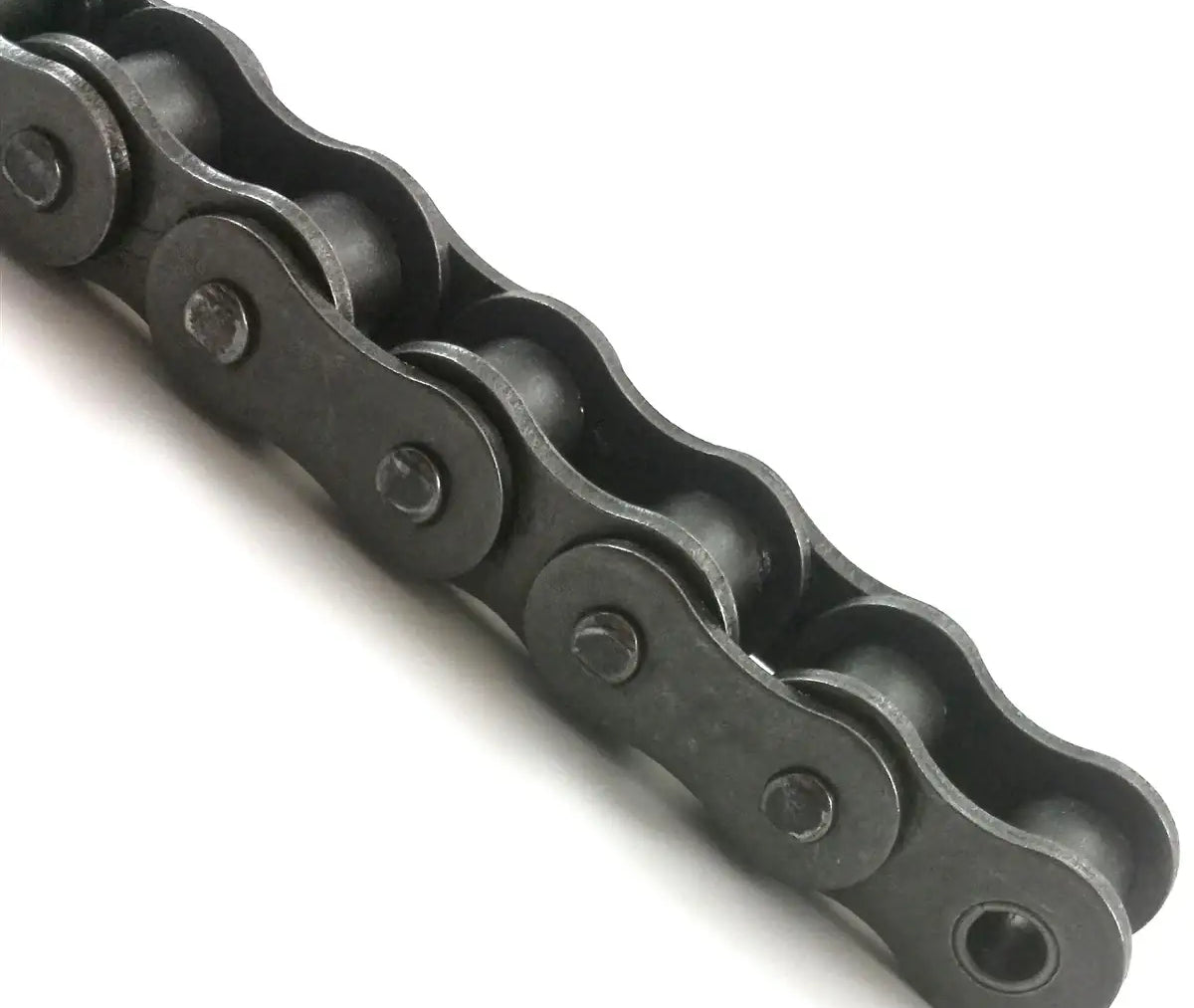

General Duty Plus #80 roller chain is a high quality ANSI standard roller chain. This #80 roller chain features heat-treated and shot peened components including the pins, side plates, rollers, and bushings. Doing this to a roller chain greatly increases the strength, working life, and durability of a chain. General Duty Plus #80 roller chain has a tensile strength of 17,000lbs and is constructed of high quality carbon steel. #80 roller chain is commonly supplied in 10ft boxes but is also available on 50ft reels, 100ft reels, and as custom lengths per request. USA Roller Chain and Sprockets also offers a full line of attachments for this chain and a full line of high quality sprockets! For more information or if you need a custom length please contact us.
#80 Roller Chain Dimensions
Chain Size: #80 Roller Chain Tensile Strength: 17,000lbs Pitch (P): 1.000" Roller Width (W): 0.625" Roller Diameter (R): 0.625" Plate Height (H): 0.935" Plate Thickness (T): 0.125" Pin Diameter (D): 0.312" Overall Width (F): 0.636"
Chain Size: #80 Roller Chain Tensile Strength: 17,000lbs Pitch (P): 1.000" Roller Width (W): 0.625" Roller Diameter (R): 0.625" Plate Height (H): 0.935" Plate Thickness (T): 0.125" Pin Diameter (D): 0.312" Overall Width (F): 0.636"
