80BTB12 Sprocket (Taper Bushed)
80BTB12 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
Regular price
$74.99
$74.99
Unit price
per
In Stock
On Sale
Sold out
Product Code: 80BTB12-SPROCKET
In Stock
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

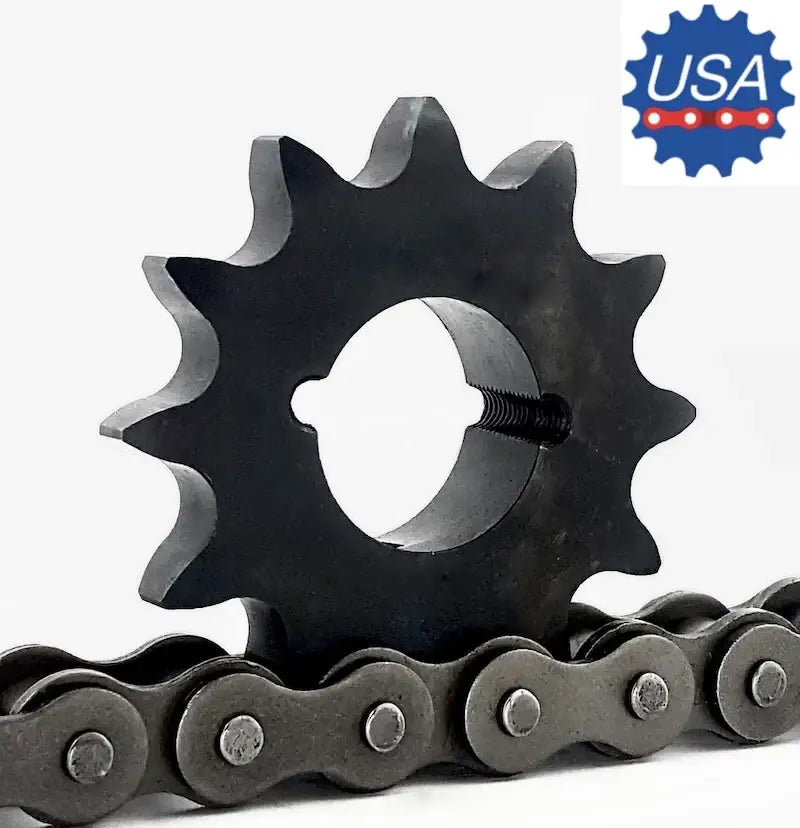

This 80BTB12 sprocket is a durable, high quality, and precision sprocket with 12 hardened teeth that is manufactured to accept a 1615 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #80 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 80BTB12 sprockets are manufactured to accept a 1615 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: 80BTB12
- Bushing Size: 1615
- Tooth Count: 12
- Outside Diameter: 4.332"
- Pitch Diameter: 3.864"
- Dimension (L): 1-1/2"
- Dimension (C): 3"
- Sprocket Type: B
- Sprocket Weight: 1.8 LBS
- Bushing Weight: 1.2 LBS
Email:
Feature
- Premium Quality Sprocket
- Manufactured Using High-Quality Steel
- Fully Meets ANSI Standards
- Black Oxide Coated For Corrosion Resistance
- Directly Interchanges With Other Manufactures
- Extremely Durable Construction With High-Performance
- Sprocket Size: 80BTB12
- Bushing Size: 1615
- Tooth Count: 12
- Outside Diameter: 4.332"
- Pitch Diameter: 3.864"
- Dimension (L): 1-1/2"
- Dimension (C): 3"
- Sprocket Type: B
- Sprocket Weight: 1.8 LBS
- Bushing Weight: 1.2 LBS
