S62R-C6E attachment chain is manufactured to DIN8189 standards and is primary used in agricultural equipment. This S62R-C6E roller chain features solid rollers, heat treated components, and is supplied with a light high-quality lubricant for extended working life. For additional chain lubricant checkout our roller chain lubricant page! Besides S62R-C6E attachment roller chain we also offer sprockets, bearings, shafting, motors, reducers and much more. For additional information or to get pricing please contact our customer support team and we will be happy to assist you.

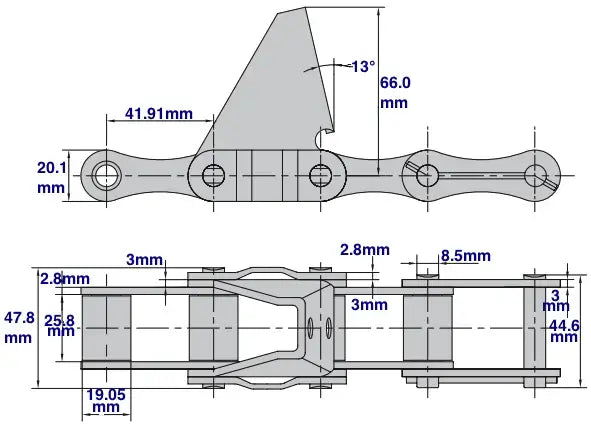

S62R-C6E Chain Dimensions
Feature
- High Quality Agricultural Chain
- Manufactured in Accordance to DIN 8189 Standards
- Extremely Durable and High Performance
- Pitch (P): 41.91mm
- Roller Diameter (d1): 19.05mm
- Width Between Inner Plates (b1): 25.8mm
- Pin Diameter (d2): 8.5mm
- Pin Length (L): 47.8mm
- Connecting Link Pin Length (Lc): 44.6mm
- Inner Plate Depth (h2): 20.1mm
- Plate Thickness (T): 3.0mm
- Plate Thickness (C): 66.0mm
- Tensile Strength: 9,448 LBS
