S62R-C6E Chain - Attachment Agricultural Chain

Note: Custom Cut to Length Chain Also Available
SKU: S62R-C6E-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51715356885359" , "metafield_value":""}]
S62R-C6E Chain - Attachment Agricultural Chain Features
S62R-C6E Chain - Attachment Agricultural Chain Specifications
S62R-C6E attachment chain is manufactured to DIN8189 standards and is primary used in agricultural equipment. This S62R-C6E roller chain features solid rollers, heat treated components, and is supplied with a light high-quality lubricant for extended working life. For additional chain lubricant checkout our roller chain lubricant page! Besides S62R-C6E attachment roller chain we also offer sprockets, bearings, shafting, motors, reducers and much more. For additional information or to get pricing please contact our customer support team and we will be happy to assist you.

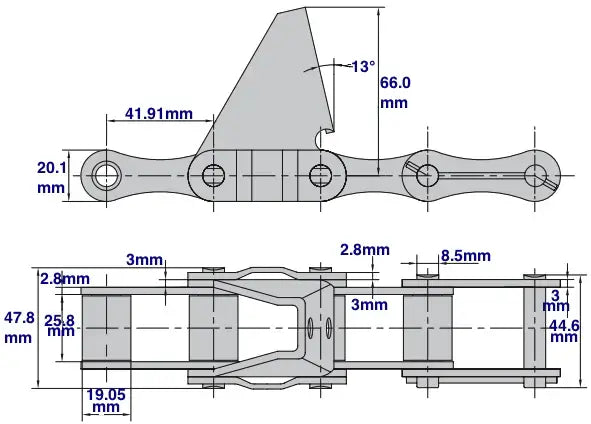

S62R-C6E Chain Dimensions

S62R-C6E Chain - Attachment Agricultural Chain



  • Pitch (P): 41.91mm
  • Roller Diameter (d1): 19.05mm
  • Width Between Inner Plates (b1): 25.8mm
  • Pin Diameter (d2): 8.5mm
  • Pin Length (L): 47.8mm
  • Connecting Link Pin Length (Lc): 44.6mm
  • Inner Plate Depth (h2): 20.1mm
  • Plate Thickness (T): 3.0mm
  • Plate Thickness (C): 66.0mm
  • Tensile Strength: 9,448 LBS
