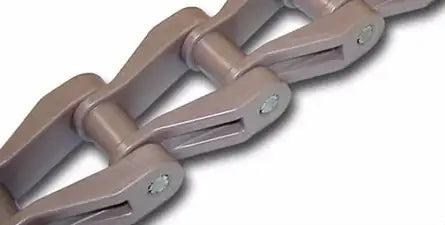

NH78 Plastic Chain | Glass-reinforced nylon

NH78 Plastic Chain | Glass-reinforced nylon

Note: Custom Cut to Length Chain Also Available
Product Code: NH78-PLASTIC-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
78 Series Chain Sprockets
78 Series Chain Sprockets
Login
NH78 F2 Attachment
NH78 F2 Attachment
Login
View full details
Description
Specification
NH78 Plastic Chain offers high strength at a lightweight and ultimate corrosion resistance. This NH78 plastic chain is directly interchangeable with 78 series chains and sprockets of all materials so it is easy and affordable to make the switch. Something special about this chain is that it features stainless steel knurled pins, meaning that it is easy to install and does not have cotter pin connecting points. The unified design of each link makes its extremely high strength, and the acetal construction makes it highly corrosion-resistant while providing a natural lubricant eliminating the need for oilers or lube lines.

Besides the NH78 plastic chain, we offer a full line of sprockets, bearings, drives, shafting, wear components, flights, and skimmer assemblies. USA Roller Chain and Sprockets sets its self apart from the competition by having 100+ years of customer experience, extremely competitive pricing, a wide range of inventory, and rapid fast customer service. To get a quote or for more information on NH78 Plastic Chain please contact us and we will be happy to assist you.

NH78 Chain Dimensions
  • Chain Size: NH78 Plastic
  • Pitch: 2.609"
  • Pin Diameter (D): 0.38"
  • Sidebar Height (F): 1.12"
  • Barrel Diameter (H): 0.88"
  • Maximum Sprocket Face (A): 0.94"
  • Bearing Length (X): 1.62"
  • Overall Width (E): 3.19"
  • Head of Pin to Center Line (J): 2.10"
  • End of Pin To Center Line Cottered (K): 2.19"
  • End of Pin To Center Line Riveted (L): 1.59"
  • Maximum Recombined Working Load: 1,750 LBS
  • Average Ultimate Strength: 3,100 LBS
  • Links Per 10ft: 46
  • Weight: 1.5 LBS/ FT
  • Link Material: Nylon-6
  • Pin Material: Stainless Steel

Phone: (407) 347-3519
Email:sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • Premium NH78 Drive Chain
  • Typically In-Stock
  • Non-Metallic Material
  • Wide Range of Attachments and Sprockets Available
  • Commonly Found in Wastewater Applications
Featured image
  • Chain Size: NH78 Plastic
  • Pitch: 2.609"
  • Pin Diameter (D): 0.38"
  • Sidebar Height (F): 1.12"
  • Barrel Diameter (H): 0.88"
  • Maximum Sprocket Face (A): 0.94"
  • Bearing Length (X): 1.62"
  • Overall Width (E): 3.19"
  • Head of Pin to Center Line (J): 2.10"
  • End of Pin To Center Line Cottered (K): 2.19"
  • End of Pin To Center Line Riveted (L): 1.59"
  • Maximum Recombined Working Load: 1,750 LBS
  • Average Ultimate Strength: 3,100 LBS
  • Links Per 10ft: 46
  • Weight: 1.5 LBS/ FT
  • Link Material: Nylon-6
  • Pin Material: Stainless Steel
