NH78 F2 Attachment

Name: NH78 F2 Attachment
Brand: USA ROLLER CHAIN
SKU: NH78-F2-ATTACHMENT
Availability: InStock

Note: Se habla espanol

SKU: NH78-F2-ATTACHMENT

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

NH78 F2 Attachment Description/Features

NH78 F2 Attachment Specifications

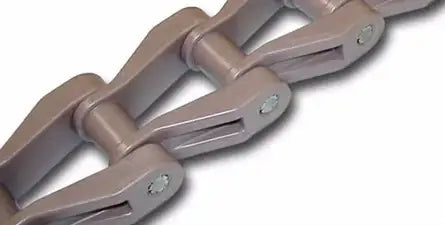

NH78 F2 Attachment is manufactured to the same standards as NH78 chain and is a non metallic and high strength attachment. We can supply them as individual attachment links or already assembled onto NH78 chain in any configuration needed. On top of the chain and attachments we also offer a full line of flights, sprockets, wear materials, bearings, shafting, skimmers, and drives. To get a quote on NH78 F2 attachments or NH78 chain with attachments assembled onto it simply give us a call or send an email and one of our customer service representatives will be happy to assist you.

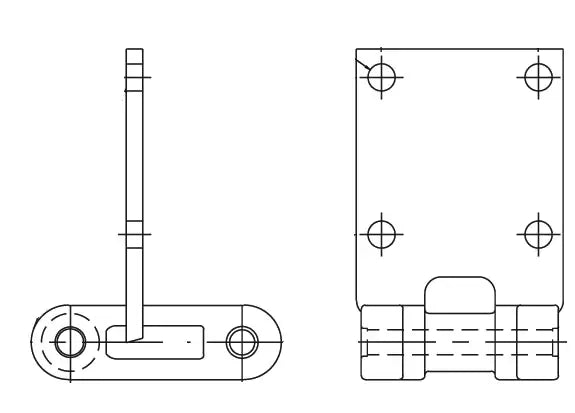

Dimensions:

Attachment Size: NH78-F2
Pitch: 2.609"
Bolt Diameter (D): 0.38"
Hole Diameter (D): 0.41"
Dimension (J): 4.44"
Dimension (K): 1.50"
Dimension (M): 2.380"
Dimension (M1): 2.38"
Dimension (T): 0.25"
Dimension (U): 1.62"
Dimension (W): 3.12"
