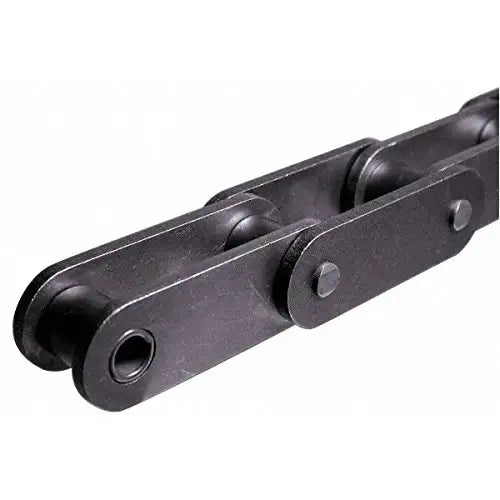

Economy Plus C2160H Double Pitch Roller Chain - 10ft Box
Economy Plus C2160H Double Pitch Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
Product Code: ECO-C2160H-ROLLER-CHAIN
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
Economy Plus C2160H Double Pitch Roller Chain
C2160H Roller Chain is Also Commonly Known As C2160H Double Pitch Roller Chain and C2160H Conveyor Chain. This C2160H Roller Chain fully meets all ANSI Standards and is a durable and dependable product. Economy Plus C2160H double pitch roller chain has a tensile strength of 71,000lbs and is supplied in 10ft boxes including one connecting link, but alternate lengths are available per request. We also offer additional connecting links and offset links, along with a full line of C2160H sprockets and attachments. For more information about C2160H roller chain or to get a quote on sprockets, or attachments give us a call!
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
C2160H Roller Chain is Also Commonly Known As C2160H Double Pitch Roller Chain and C2160H Conveyor Chain. This C2160H Roller Chain fully meets all ANSI Standards and is a durable and dependable product. Economy Plus C2160H double pitch roller chain has a tensile strength of 71,000lbs and is supplied in 10ft boxes including one connecting link, but alternate lengths are available per request. We also offer additional connecting links and offset links, along with a full line of C2160H sprockets and attachments. For more information about C2160H roller chain or to get a quote on sprockets, or attachments give us a call!
Dimensions:
- Pitch (P): 4.000"
- Roller Width (W): 1.250"
- Roller Diameter (R): 1.125"
- Plate Height (H): 1.898"
- Plate Thickness (T): 0.281"
- Pin Diameter (D): 0.562"
- Overall Width (F): 2.620"
- Tensile Strength: 71,000lbs
- Weight: 6.17 lbs/ft
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Feature
- Fully Meets All ANSI Standards
- 71,000lbs Tensile Strength
- Heat Treated For Increased Strength
- Supplied As A 10ft Box Including One Connecting Link
- Has Solid Roller For Better Performance
- Extended Working Life
- Pitch (P): 4.000"
- Roller Width (W): 1.250"
- Roller Diameter (R): 1.125"
- Plate Height (H): 1.898"
- Plate Thickness (T): 0.281"
- Pin Diameter (D): 0.562"
- Overall Width (F): 2.620"
- Tensile Strength: 71,000lbs
- Weight: 6.17 lbs/ft
