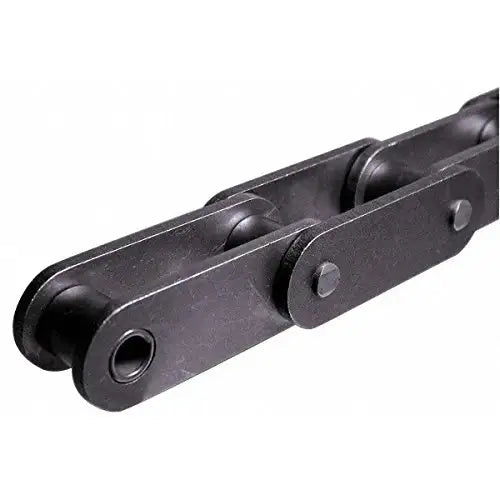

Economy Plus C2160H Double Pitch Roller Chain - 10ft Box
SKU: ECO-C2160H-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Economy Plus C2160H Double Pitch Roller Chain - 10ft Box Description/Features
Economy Plus C2160H Double Pitch Roller Chain - 10ft Box Specifications
Economy Plus C2160H Double Pitch Roller Chain
C2160H Roller Chain is Also Commonly Known As C2160H Double Pitch Roller Chain and C2160H Conveyor Chain. This C2160H Roller Chain fully meets all ANSI Standards and is a durable and dependable product. Economy Plus C2160H double pitch roller chain has a tensile strength of 71,000lbs and is supplied in 10ft boxes including one connecting link, but alternate lengths are available per request. We also offer additional connecting links and offset links, along with a full line of C2160H sprockets and attachments. For more information about C2160H roller chain or to get a quote on sprockets, or attachments give us a call!
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
C2160H Roller Chain is Also Commonly Known As C2160H Double Pitch Roller Chain and C2160H Conveyor Chain. This C2160H Roller Chain fully meets all ANSI Standards and is a durable and dependable product. Economy Plus C2160H double pitch roller chain has a tensile strength of 71,000lbs and is supplied in 10ft boxes including one connecting link, but alternate lengths are available per request. We also offer additional connecting links and offset links, along with a full line of C2160H sprockets and attachments. For more information about C2160H roller chain or to get a quote on sprockets, or attachments give us a call!
Dimensions:
- Pitch (P): 4.000"
- Roller Width (W): 1.250"
- Roller Diameter (R): 1.125"
- Plate Height (H): 1.898"
- Plate Thickness (T): 0.281"
- Pin Diameter (D): 0.562"
- Overall Width (F): 2.620"
- Tensile Strength: 71,000lbs
- Weight: 6.17 lbs/ft
Phone: (407) 347-3519
Email: sales@usarollerchain.com
- Pitch (P): 4.000"
- Roller Width (W): 1.250"
- Roller Diameter (R): 1.125"
- Plate Height (H): 1.898"
- Plate Thickness (T): 0.281"
- Pin Diameter (D): 0.562"
- Overall Width (F): 2.620"
- Tensile Strength: 71,000lbs
- Weight: 6.17 lbs/ft
