C2052 Roller Chain 10ft Box

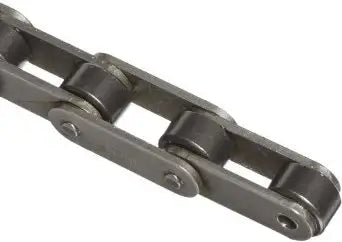

This C2052 chain is manufactured in accordance to ANSI B29.1 standards dimensionally. Basically meaning that it will directly interchange with a multitude of brands and manufactures. What sets this economically priced chain apart from others is the use of heat-treated and shot peened components which drastically increase the strength and overall durability of the chain. It is also factory pre-stretched which means lower elongation over the life of the chain, additionally, all of our ANSI roller chains are shipped with a high-quality lubricant. Other common industry terms for C2052 roller chain are; C2052 conveyor chain or C2052 oversized roller chain. This is due to the large rollers that extend past the side plates on the chain.

C2052 Chain Operation

As you can see above the implementation of oversized rollers makes it to where the chain can smoothly and productively roll or convey on top of a surface. The main benefit of this feature is that it can turn complex conveying jobs and applications int simplified ones.

C2052 Roller Chain Dimensions

• Chain Size: C2052
• Pitch (P): 1.250"
• Roller Width (W): 0.375"
• Roller Diameter (R): 0.750"
• Plate Height (H): 0.593"
• Plate Thickness (T): 0.080"
• Pin Diameter (D): 0.200"
• Chain Width (F): 0.806"
• Connecting Link Width (G): 0.856"
• Tensile Strength: 6,290 LBS
• Weight: 0.885 LBS/ FT

C2052 Conveyor Chain Maintenance

Because of the simplistic design and operation of this chain, a common misconception is a need to maintain this chain. For proper maintenance on C2052 roller chains, you want to keep consistent chain lubricant applied as well as tension. Additionally, for an increased working life we recommend using a roller chain guide, also known as a wear strip.

C2052 Roller Chain Sprockets

We also stock a full line of premium quality C2052 sprockets, as well as roller chain attachments. Another important part of maintaining a chain is making sure your sprockets are in good shape and aligned. All of out sprockets that have 30-teeth or less use hardened teeth for extended working life.

Stock C2052 Chain Sprockets

Sprocket Size	Tooth Count	Outside Diameter	Stock Bore	Maximum Bore	Length Thru Bore	Weight
2052B8	8	3.770"	5/8"	1-19/32"	1"	1.38 LBS
2052B9	9	4.190"	5/8"	1-25/32"	1"	1.92 LBS
2052B10	10	4.600"	5/8"	2"	1"	2.30 LBS
2052B11	11	5.010"	5/8"	2"	1"	2.54 LBS
2052B12	12	5.420"	3/4"	2"	1-1/4"	3.20 LBS
2052B13	13	5.820"	3/4"	2"	1-1/4"	3.48 LBS
2052B14	14	6.230"	3/4"	2"	1-1/4"	3.88 LBS
2052B15	15	6.630"	3/4"	2-1/4"	1-1/4"	4.46 LBS
2052B16	16	7.030"	3/4"	2-1/4"	1-1/4"	4.80 LBS
2052B17	17	7.440"	3/4"	2-1/4"	1-1/4"	5.34 LBS
2052B18	18	7.840"	3/4"	2-1/4"	1-1/4"	5.64 LBS
2052B19	19	8.240"	3/4"	2-1/4"	1-1/4"	6.04 LBS
2052B20	20	8.640"	3/4"	2-1/4"	1-1/4"	6.48 LBS
2052B21	21	9.040"	3/4"	2-1/4"	1-1/4"	7.00 LBS
2052B22	22	9.440"	3/4"	2-1/4"	1-1/4"	7.30 LBS
2052B23	23	9.850"	1"	2-3/4"	1-1/4"	8.66 LBS
2052B24	24	10.250"	15/16"	2-3/4"	1-1/4"	9.32 LBS
2052B25	25	10.650"	15/16"	2-3/4"	1-1/4"	10.30 LBS
2052B26	26	11.050"	15/16"	2-3/4"	1-1/4"	11.00 LBS
2052B28	28	11.840"	15/16"	2-3/4"	1-1/4"	11.70 LBS
2052B30	30	12.640"	15/16"	2-3/4"	1-1/4"	12.90 LBS
