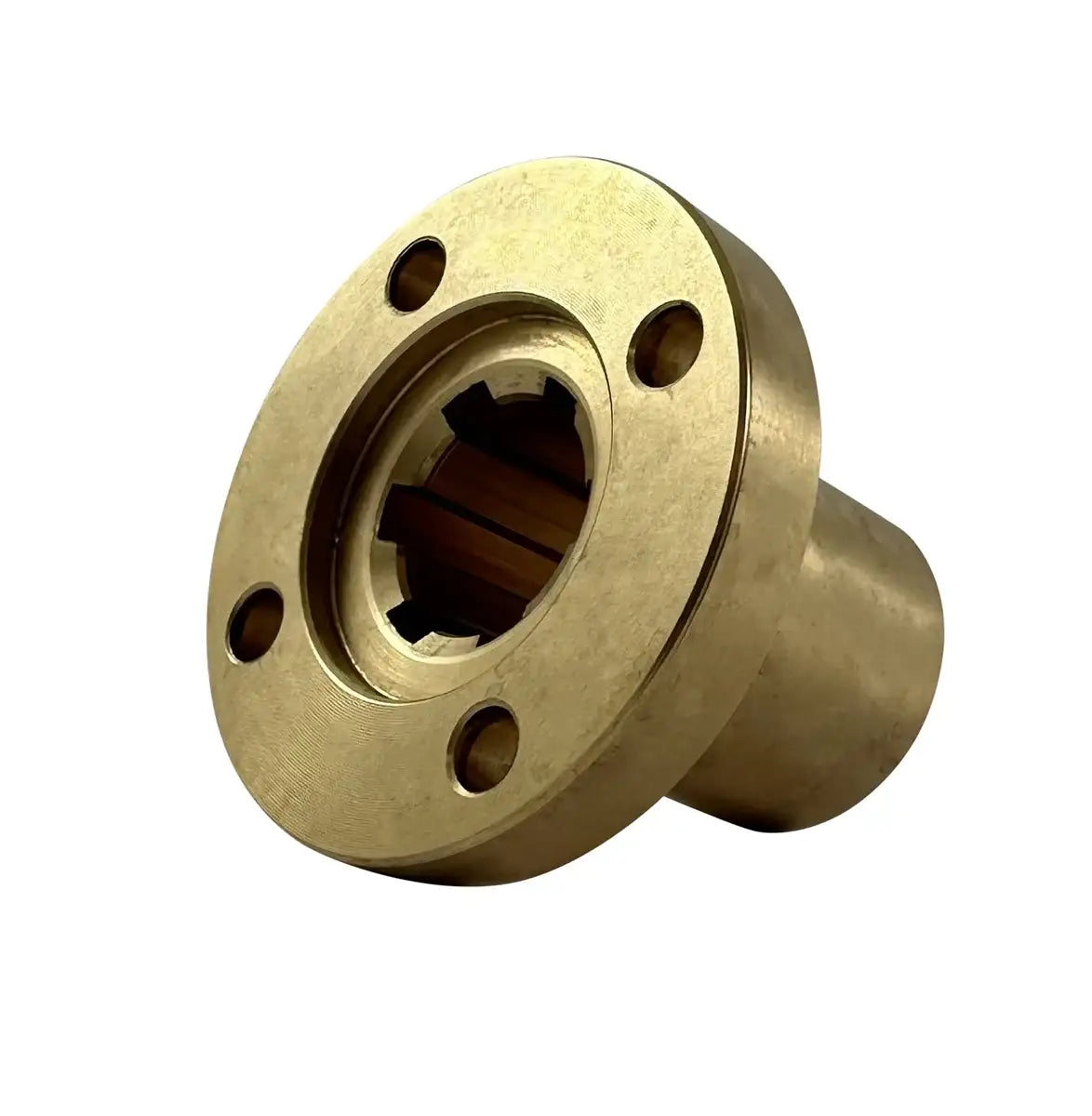

Splined Hub With Flange for 22mm Shaft With 6 Splines - Brass Material
Splined Hub With Flange for 22mm Shaft With 6 Splines - Brass Material
Note:
Custom Cut to Length Chain Also Available
Product Code: 64855100-FLANGED-HUB
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
Enhance your system with our top-tier splined hub featuring a flange, crafted from premium brass for a 22mm shaft with 6 splines. Meeting ISO DIN 14 standards, this hub guarantees smooth interchangeability and precise torque transmission for a variety of applications. Designed for a 22mm diameter splined shaft with 6 splines, it ensures easy installation and reliable, long-lasting performance. We also provide splined clamp collars with four pre-drilled holes to complement this hub. For more details or to request a quote on our outstanding splined hub with flange for a 22mm shaft with 6 splines, please contact our responsive customer service team, who are eager to assist you!
22mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 22mm
- Profile Description: KN18x22
- Material: Brass
- Part #: 64855100
- Dimension (A): 54mm
- Dimension (B): 40mm
- Dimension (B1): 5.5mm
- Dimension (C): 30mm
- Dimension (F): 30mm
- Dimension (d): 18mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 45mm
- Weight: 0.30 KG
Feature
- Precision Made from Red Brass
- Made for 22mm Splined Shafting
- Pre-Drilled Holes to Accommodate Through-Bolts
- Conforms to DIN ISO 14 Standard
- Made for Shaft Diameter: 22mm
- Profile Description: KN18x22
- Material: Brass
- Part #: 64855100
- Dimension (A): 54mm
- Dimension (B): 40mm
- Dimension (B1): 5.5mm
- Dimension (C): 30mm
- Dimension (F): 30mm
- Dimension (d): 18mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 45mm
- Weight: 0.30 KG
