22mm Spline Shaft 6-Splines C45 Material - 1000mm
22mm Spline Shaft 6-Splines C45 Material - 1000mm
Note:
Custom Cut to Length Chain Also Available
Product Code: 64840100-SHAFT
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

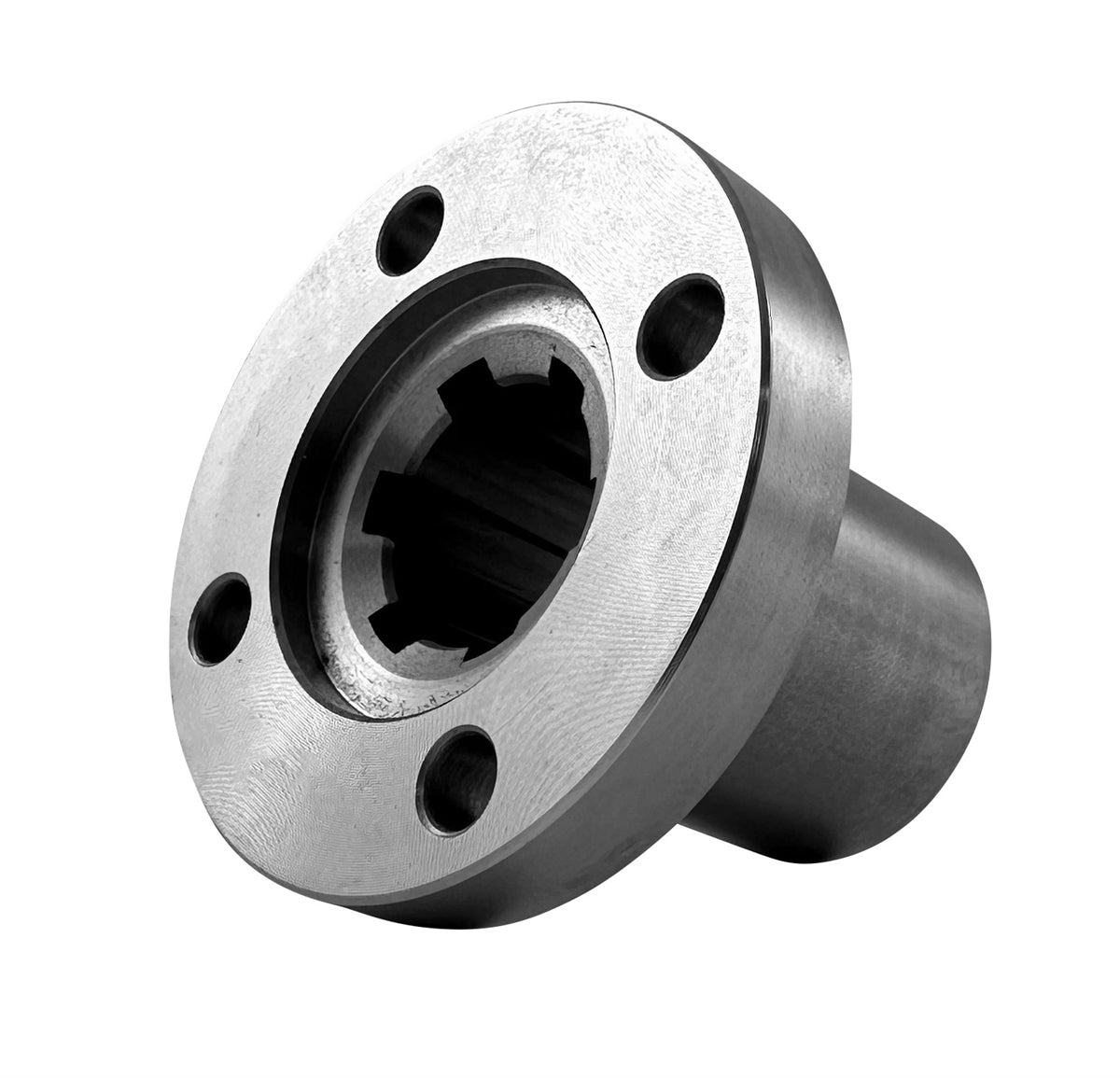

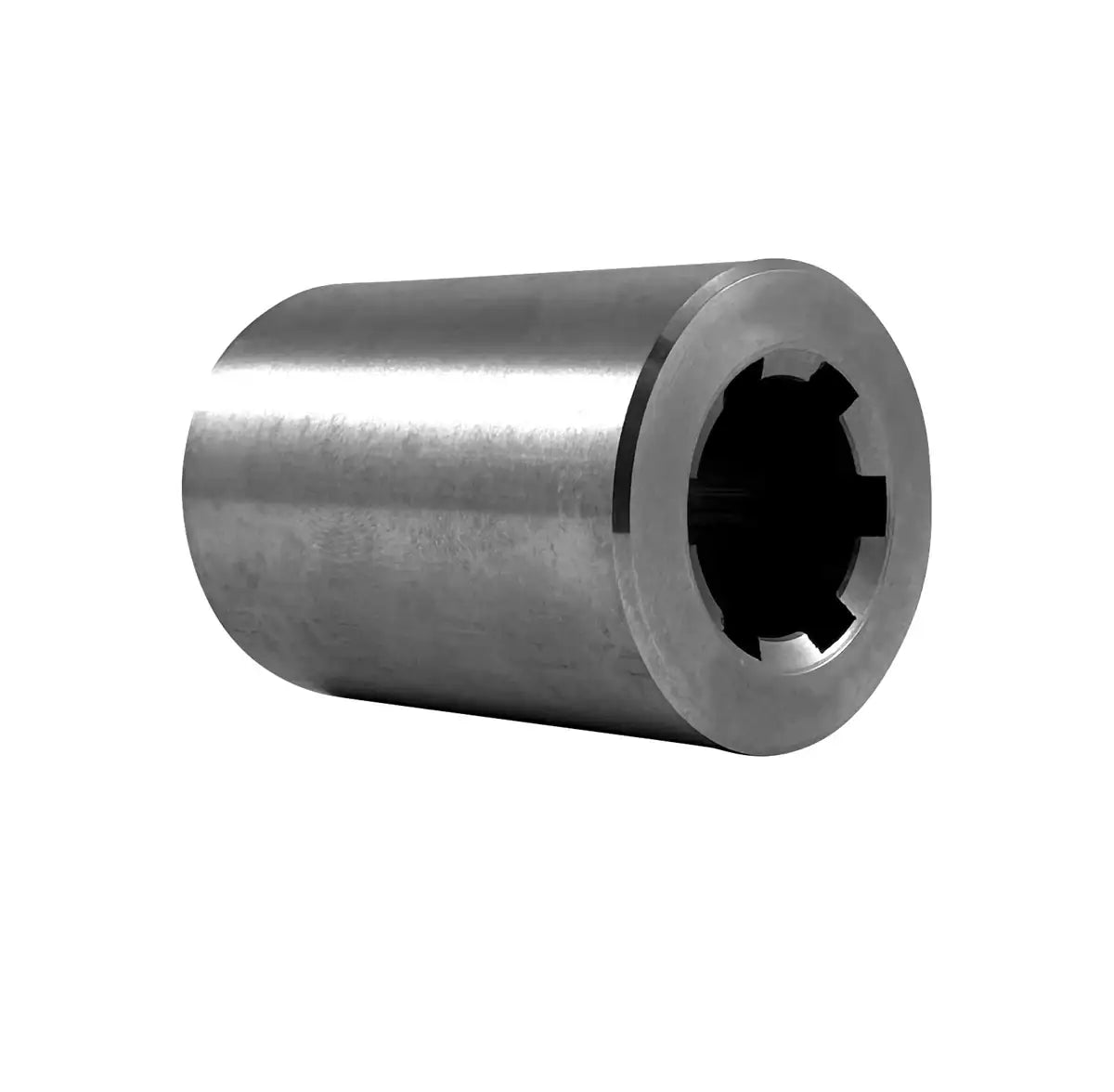

Our premium 22mm spline shaft with 6 splines is made from high-quality C45 steel and pre-cut to a 1000mm length for convenience. Manufactured to DIN ISO 14 Standards, this 22mm spline shaft is ideal for precise torque transmission and alignment, making it perfect for applications such as agricultural machinery, industrial equipment, and drive shafts. We also supply compatible parts like spline hubs, collars, and clamps to support your setup. For additional information or a quote on our precision C45 steel 22mm spline shaft with 6 splines in a 1000mm length, contact our customer service team, and we will gladly assist you!
22mm Spline Shaft With 6-Splines Dimensions
- Shaft Diameter (D): 22mm
- Amount of Splines: 6
- Dimension (d): 18mm
- Dimension (b): 5mm
- Length: 1000mm
- Material: C45
- Weight: 2.453 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
Feature
- High Precision 22mm Splined Shaft
- Features 6-Splines
- Made From C45 Steel Material
- Cut to a 1000mm Length
- Conforms to ISO DIN 14 Dimensions
- Shaft Diameter (D): 22mm
- Amount of Splines: 6
- Dimension (d): 18mm
- Dimension (b): 5mm
- Length: 1000mm
- Material: C45
- Weight: 2.453 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
