SALF200 Bearings

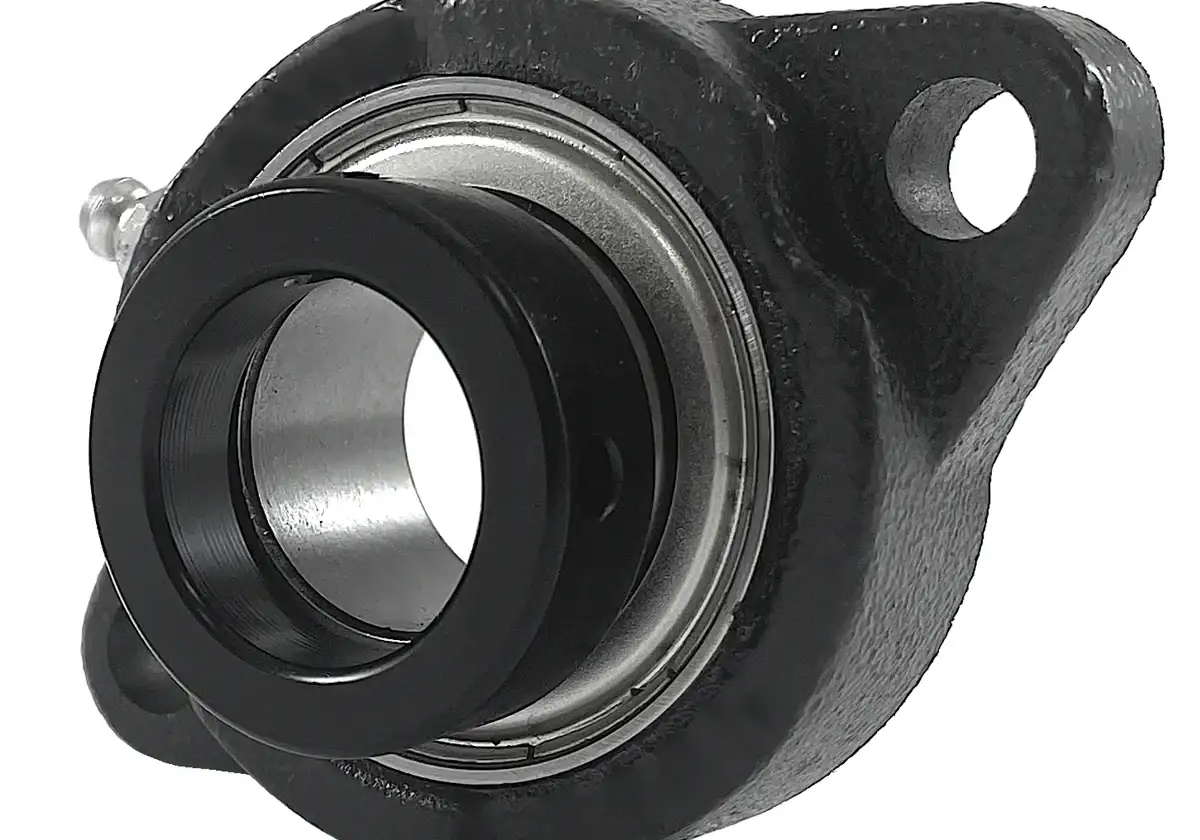

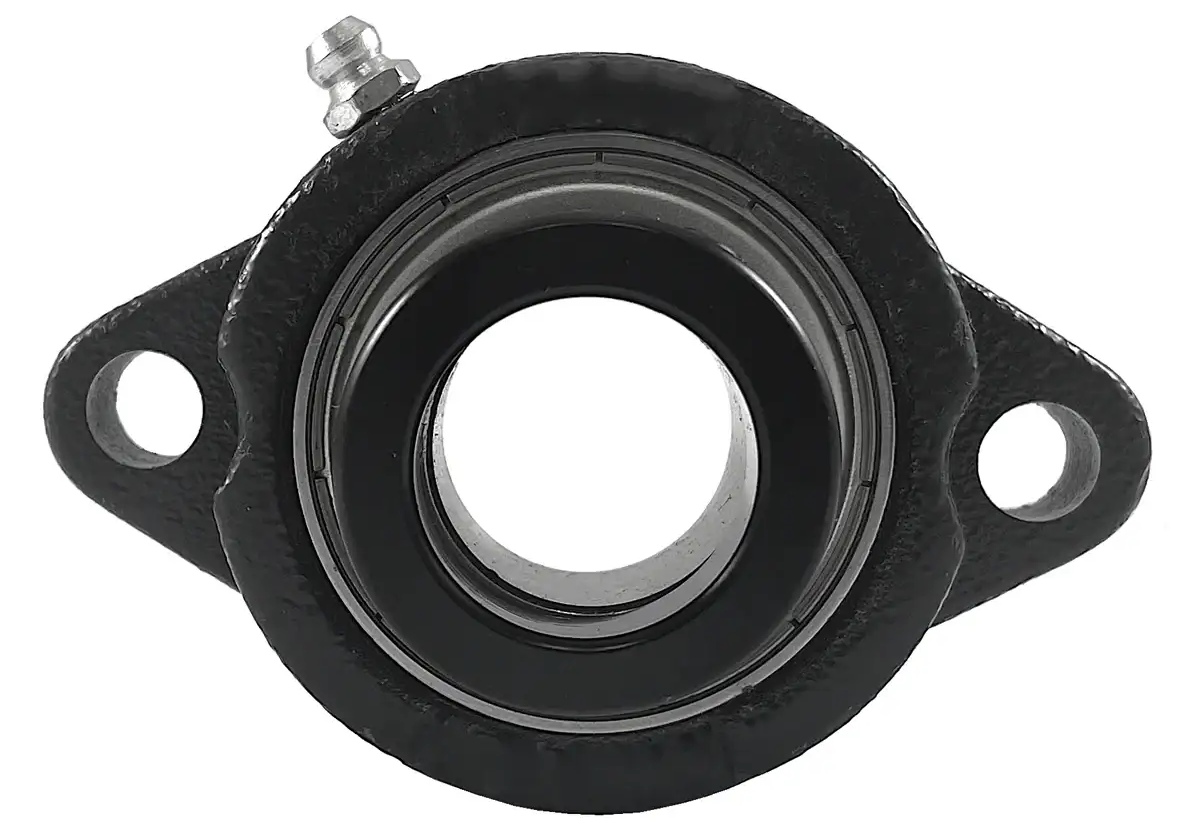

SALF200 bearings are light-duty two-bolt flange bearings that utilize an eccentric locking collar for securing onto a shaft. Our premium SALF200 flange bearings feature a performance C3 precision bearing insert housed within a high-strength cast housing that is made to industry standard dimensions for direct interchangeability with almost every brand. SALF200 bearings are designed with two mounting holes for a decreased footprint and increased design compatibility. These bearings are found in a range of applications such as; conveyors, plant machinery, agricultural equipment, and many more! For additional information or to get a quote on SALF200 light-duty bearings contact our customer service team and we will be happy to assist you.
SALF200 Bearing Dimensions
| Bearing # | Shaft Dia. | (A) | (E) | (I) | (G) | (L) | (S) | (B) | (Z) | (Bi) | (N) | (M) |
Bolt Used
|
Dynamic Load Rating | Static Load Rating | Bearing Insert | Housing Number | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SALF201 | 12mm | 81.0mm | 63.5mm | 9.5mm | 9.5mm | 18.0mm | 8.0mm | 56.0mm | 32.1mm | 28.6mm | 6.0mm | 13.1mm | M6 | 9.55 kN | 4.78 kN | SA 201 | LF 203 | 0.5 kg |
| SALF201-8 | 1/2" | 3.19" | 2.500" | 0.37" | 0.37" | 0.71" | 0.31" | 2.20" | 1.26" | 1.1260" | 0.2362" | 0.5157" | 1/4" | 2,147 LBS | 1,075 LBS | SA 201-8 | LF 203 | 1.1 LBS |
| SALF202 | 15mm | 81.0mm | 63.5mm | 9.5mm | 9.5mm | 18.0mm | 8.0mm | 56.0mm | 32.1mm | 28.6mm | 6.0mm | 13.1mm | M6 | 9.55 kN | 4.78 kN | SA 202 | LF 203 | 0.5 kg |
| SALF202-10 | 5/8" | 3.19" | 2.500" | 0.37" | 0.37" | 0.71" | 0.31" | 2.20" | 1.26" | 1.1260" | 0.2362" | 0.5157" | 1/4" | 2,147 LBS | 1,075 LBS | SA 202-10 | LF 203 | 1.1 LBS |
| SALF203 | 17mm | 81.0mm | 63.5mm | 9.5mm | 9.5mm | 18.0mm | 8.0mm | 56.0mm | 32.1mm | 28.6mm | 6.0mm | 13.1mm | M6 | 9.55 kN | 4.78 kN | SA 203 | LF 203 | 0.5 kg |
| SALF204-12 | 3/4" | 3.54" | 2.815" | 0.43" | 0.43" | 0.79" | 0.39" | 2.40" | 1.38" | 1.2205" | 0.2756" | 0.5709" | 5/16" | 2,883 LBS | 1,496 LBS | SA 204-12 | LF 204 | 1.3 LBS |
| SALF204 | 20mm | 90.0mm | 71.5mm | 11.0mm | 11.0mm | 20.0mm | 10.0mm | 61.0mm | 35.0mm | 31.0mm | 7.0mm | 14.5mm | M8 | 12.82 kN | 6.65 kN | SA 204 | LF 204 | 0.6 kg |
| SALF205-14 | 7/8" | 3.74" | 2.992" | 0.43" | 0.43" | 0.79" | 0.39" | 2.52" | 1.38" | 1.2402" | 0.2953" | 0.5709" | 5/16" | 3,155 LBS | 1,810 LBS | SA 205-14 | LF 205 | 1.5 LBS |
| SALF205-15 | 15/16" | 3.74" | 2.992" | 0.43" | 0.43" | 0.79" | 0.39" | 2.52" | 1.38" | 1.2402" | 0.2953" | 0.5709" | 5/16" | 3,155 LBS | 1,810 LBS | SA 205-15 | LF 205 | 1.5 LBS |
| SALF205 | 25mm | 95.0mm | 76.0mm | 11.0mm | 11.0mm | 20.0mm | 10.0mm | 64.0mm | 35.0mm | 31.5mm | 7.5mm | 14.5mm | M8 | 14.04 kN | 8.05 kN | SA 205 | LF 205 | 0.7 kg |
| SALF205-16 | 1" | 3.74" | 2.992" | 0.43" | 0.43" | 0.79" | 0.39" | 2.52" | 1.38" | 1.2402" | 0.2953" | 0.5709" | 5/16" | 3,155 LBS | 1,810 LBS | SA 205-16 | LF 205 | 1.5 LBS |
| SALF206-17 | 1-1/16" | 4.45" | 3.563" | 0.47" | 0.47" | 0.89" | 0.47" | 2.99" | 1.56" | 1.4055" | 0.3150" | 0.6220" | 3/8" | 4,377 LBS | 2,569 LBS | SA 206-17 | LF 206 | 2.2 LBS |
| SALF206-18 | 1-1/8" | 4.45" | 3.563" | 0.47" | 0.47" | 0.89" | 0.47" | 2.99" | 1.56" | 1.4055" | 0.3150" | 0.6220" | 3/8" | 4,377 LBS | 2,569 LBS | SA 206-18 | LF 206 | 2.2 LBS |
| SALF206 | 30mm | 113.0mm | 90.5mm | 12.0mm | 12.0mm | 23.0mm | 12.0mm | 76.0mm | 39.7mm | 35.7mm | 8.0mm | 15.8mm | M10 | 19.47 kN | 11.43 kN | SA 206 | LF 206 | 1.0 kg |
| SALF206-19 | 1-3/16" | 4.45" | 3.563" | 0.47" | 0.47" | 0.89" | 0.47" | 2.99" | 1.56" | 1.4055" | 0.3150" | 0.6220" | 3/8" | 4,377 LBS | 2,569 LBS | SA 206-19 | LF 206 | 2.2 LBS |
| SALF206-20 | 1-1/4" | 4.45" | 3.563" | 0.47" | 0.47" | 0.89" | 0.47" | 2.99" | 1.56" | 1.4055" | 0.3150" | 0.6220" | 3/8" | 4,377 LBS | 2,569 LBS | SA 206-20 | LF 206 | 2.2 LBS |
| SALF207-20 | 1-1/4" | 4.80" | 3.937" | 0.51" | 0.51" | 0.94" | 0.47" | 3.50" | 1.71" | 1.5315" | 0.3346" | 0.6654" | 3/8" | 5,775 LBS | 3,497 LBS | SA 207-20 | LF 207 | 2.9 LBS |
| SALF207-21 | 15/16" | 4.80" | 3.937" | 0.51" | 0.51" | 0.94" | 0.47" | 3.50" | 1.71" | 1.5315" | 0.3346" | 0.6654" | 3/8" | 5,775 LBS | 3,497 LBS | SA 207-21 | LF 207 | 2.9 LBS |
| SALF207-22 | 1-3/8" | 4.80" | 3.937" | 0.51" | 0.51" | 0.94" | 0.47" | 3.50" | 1.71" | 1.5315" | 0.3346" | 0.6654" | 3/8" | 5,775 LBS | 3,497 LBS | SA 207-22 | LF 207 | 2.9 LBS |
| SALF207 | 35mm | 122.0mm | 100.0mm | 13.0mm | 13.0mm | 24.0mm | 12.0mm | 89.0mm | 43.4mm | 38.9mm | 8.5mm | 16.9mm | M10 | 25.69 kN | 15.56 kN | SA 207 | LF 207 | 1.3 kg |
| SALF207-23 | 1-7/16" | 4.80" | 3.937" | 0.51" | 0.51" | 0.94" | 0.47" | 3.50" | 1.71" | 1.5315" | 0.3346" | 0.6654" | 3/8" | 5,775 LBS | 3,497 LBS | SA 207-23 | LF 207 | 2.9 LBS |
