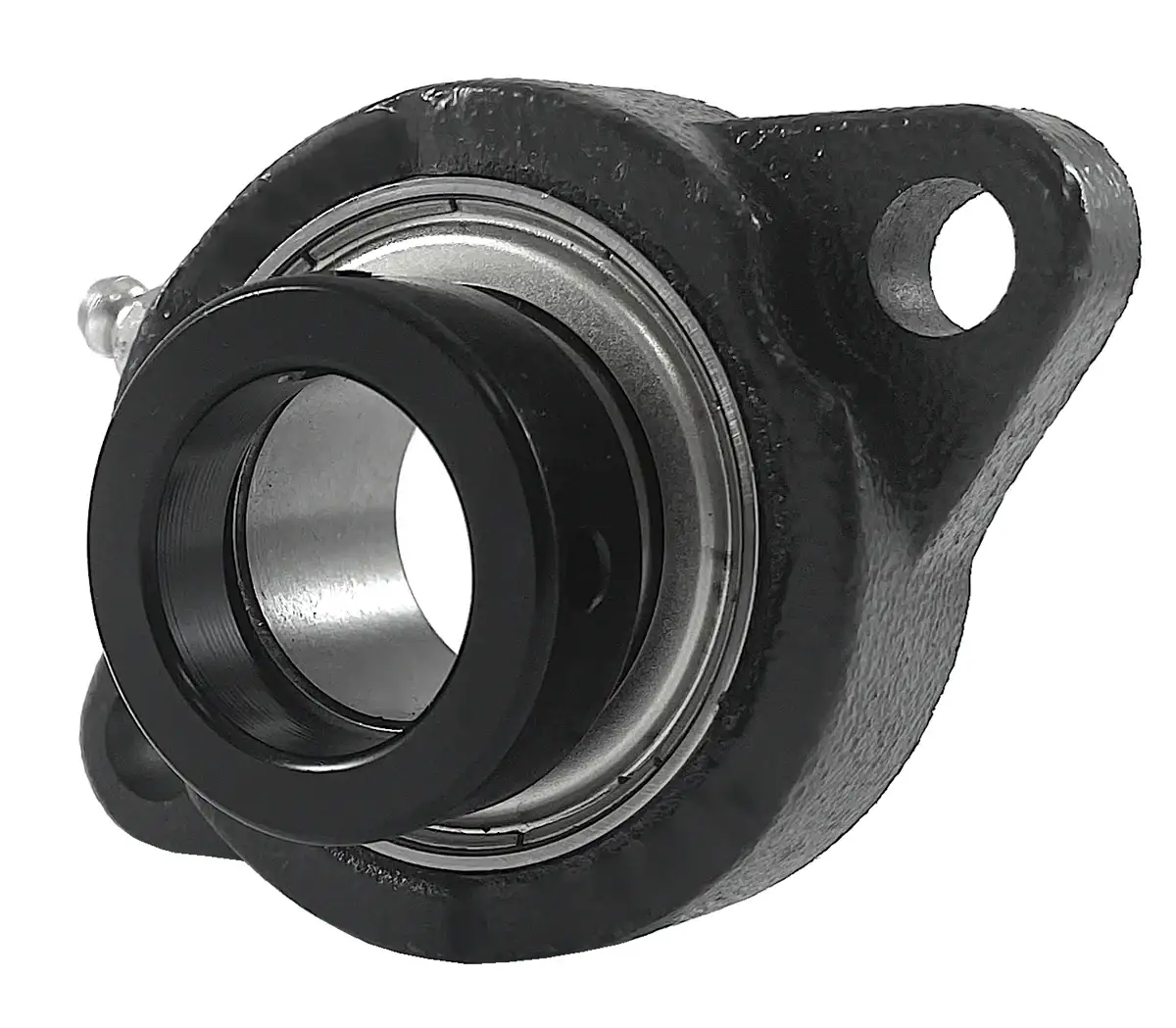

SALF206-19 Bearing | 1-3/16" 2-Bolt Eccentric Locking Bearing

SALF206-19 bearing is a 1-3/16" bore two-bolt light-duty flange bearing that utilizes an eccentric locking collar device to secure to a 1-3/16" shaft. SALF206-19 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior SALF206-19 bearing with a 1-3/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SALF206-19 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. SALF206-19 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SALF206-19 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SALF206-19 bearings, and we will be happy to assist you!

SALF206-19 Bearing Dimensions

• Part #: SALF 206-19
• Shaft Diameter (d): 1-3/16"
• Dimension (A): 4.45"
• Dimension (E): 3.563"
• Dimension (I): 0.47"
• Dimension (G): 0.47"
• Dimension (L): 0.89"
• Dimension (S): 0.47"
• Dimension (B): 2.99"
• Dimension (Z): 1.56"
• Dimension (Bi): 1.4055"
• Dimension (N): 0.3150"
• Dimension (M): 0.6220"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 19.47
• Static Load Rating (LBS): 11.43
• Bearing Insert: SA 206-19
• Housing Number: LF 206
• Weight (LBS): 1.0
