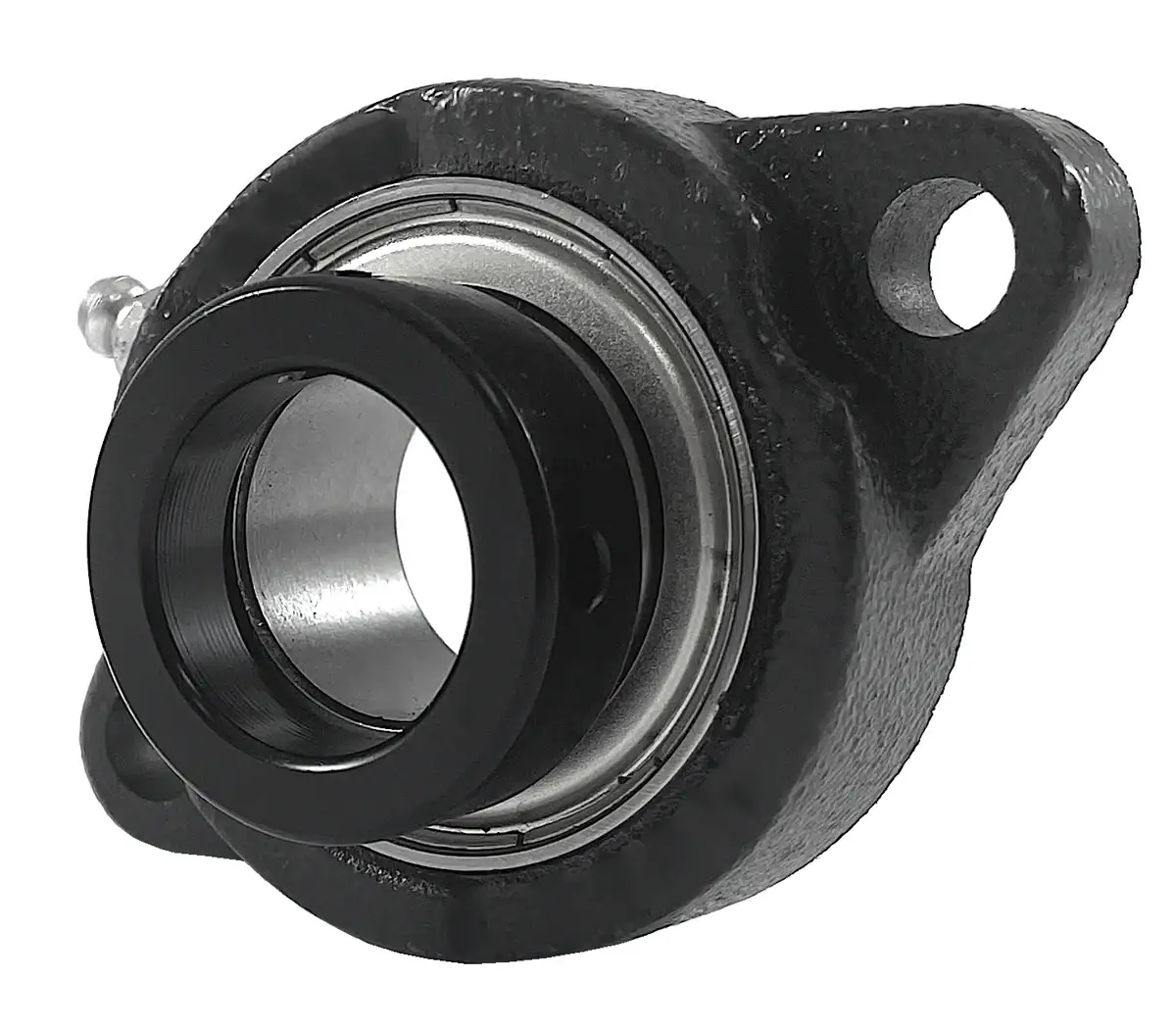

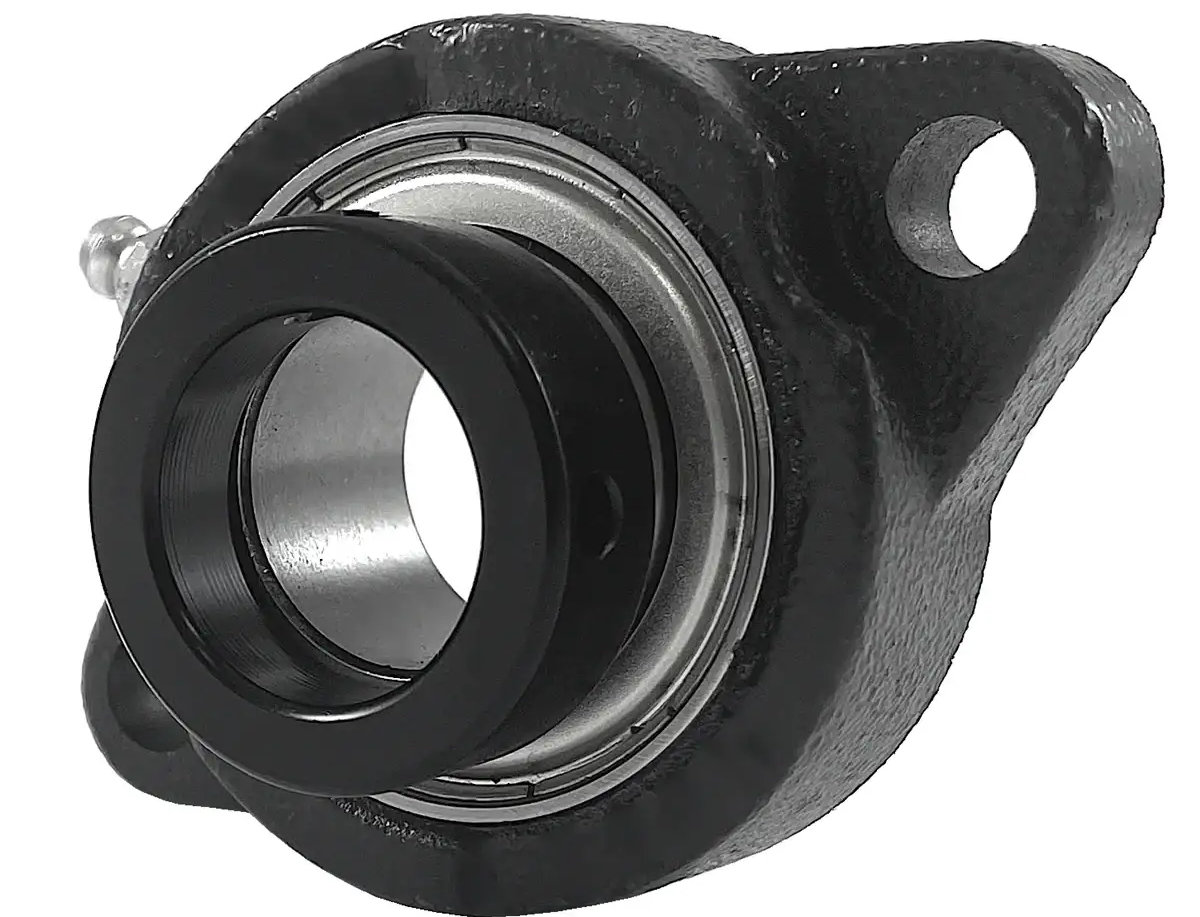

SALF206 Bearing | 30mm 2-Bolt Eccentric Locking Bearing

SALF206 bearing is a 30mm bore two-bolt light-duty flange bearing that utilizes an eccentric locking collar device to secure to a 30mm shaft. SALF206 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior SALF206 bearing with a 30mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SALF206 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. SALF206 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SALF206 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SALF206 bearings, and we will be happy to assist you!

SALF206 Bearing Dimensions

• Part #: SALF 206
• Shaft Diameter (d): 30mm
• Dimension (A): 113.0mm
• Dimension (E): 90.5mm
• Dimension (I): 12.0mm
• Dimension (G): 12.0mm
• Dimension (L): 23.0mm
• Dimension (S): 12.0mm
• Dimension (B): 76.0mm
• Dimension (Z): 39.7mm
• Dimension (Bi): 35.7mm
• Dimension (N): 8.0mm
• Dimension (M): 15.8mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 19.47
• Static Load Rating (kN): 11.43
• Bearing Insert: SA 206
• Housing Number: LF 206
• Weight (kg): 1.0
