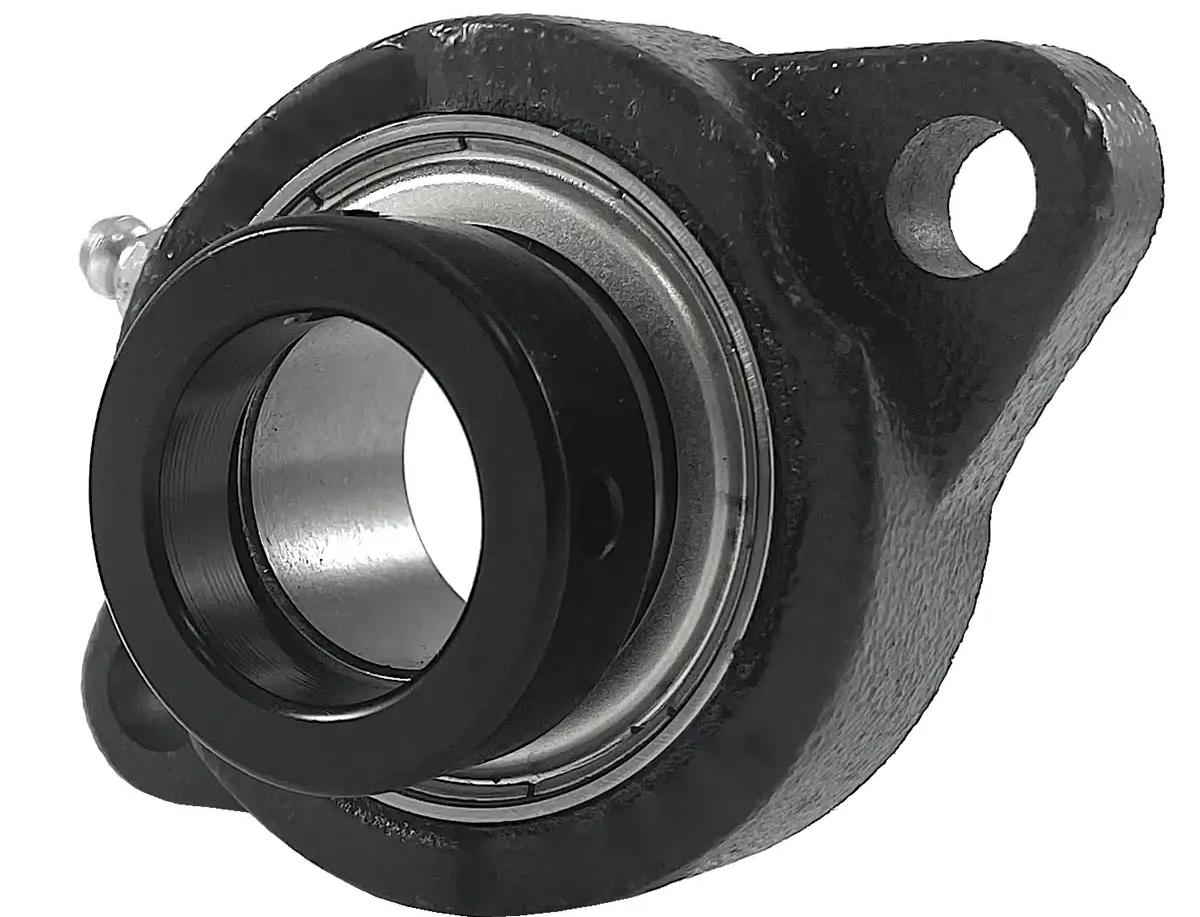

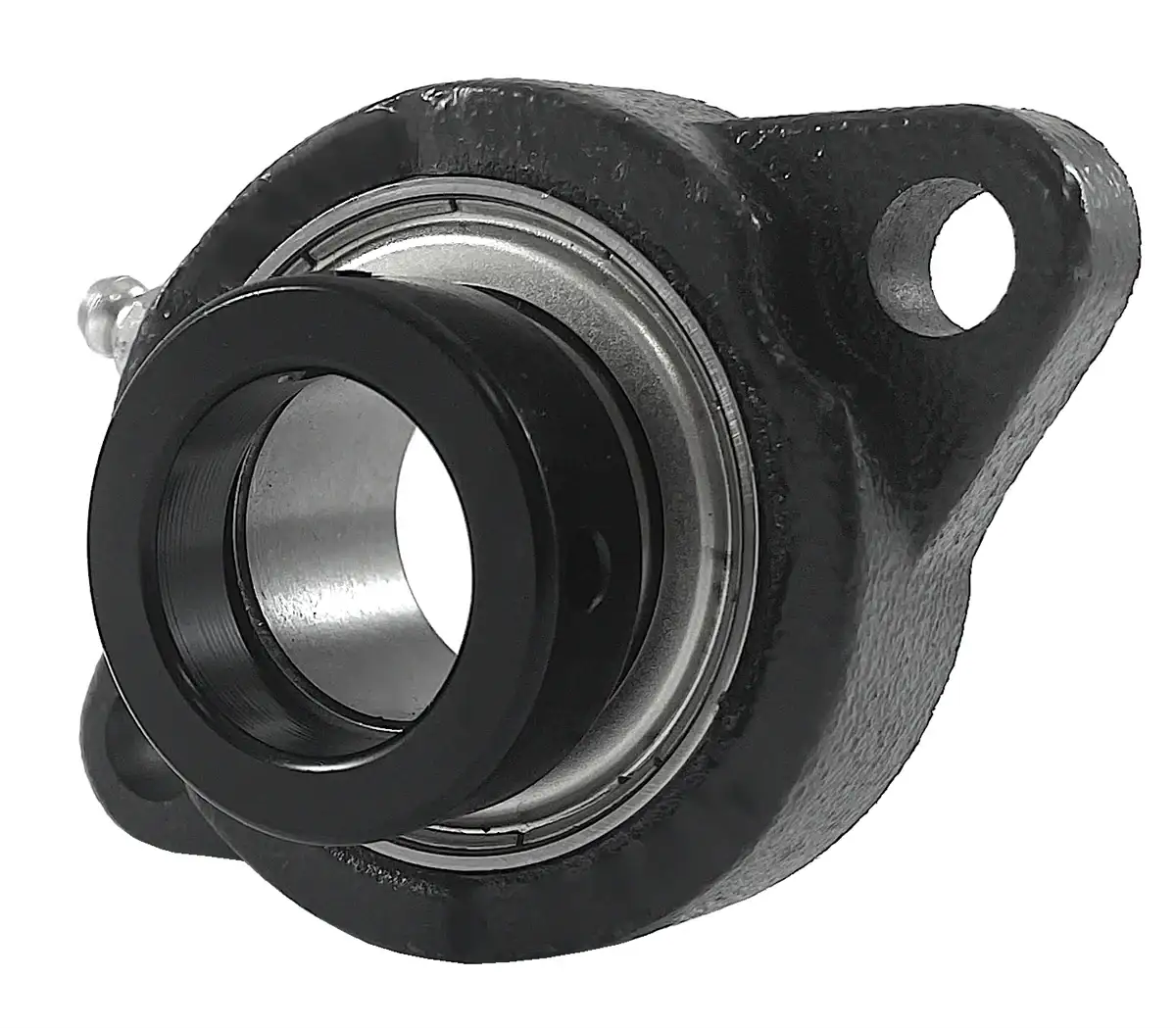

SALF202-10 Bearing | 5/8" 2-Bolt Eccentric Locking Bearing

SALF202-10 bearing is a 5/8" bore two-bolt light-duty flange bearing that utilizes an eccentric locking collar device to secure to a 5/8" shaft. SALF202-10 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior SALF202-10 bearing with a 5/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SALF202-10 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. SALF202-10 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SALF202-10 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SALF202-10 bearings, and we will be happy to assist you!

SALF202-10 Bearing Dimensions

• Part #: SALF 202-10
• Shaft Diameter (d): 5/8
• Dimension (A): 3.19"
• Dimension (E): 2.500"
• Dimension (I): 0.37"
• Dimension (G): 0.37"
• Dimension (L): 0.71"
• Dimension (S): 0.31"
• Dimension (B): 2.20"
• Dimension (Z): 1.26"
• Dimension (Bi): 1.1260"
• Dimension (N): 0.2362"
• Dimension (M): 0.5157"
• Bolt Used: 1/4
• Dynamic Load Rating (LBS): 2,147
• Static Load Rating (LBS): 1,075

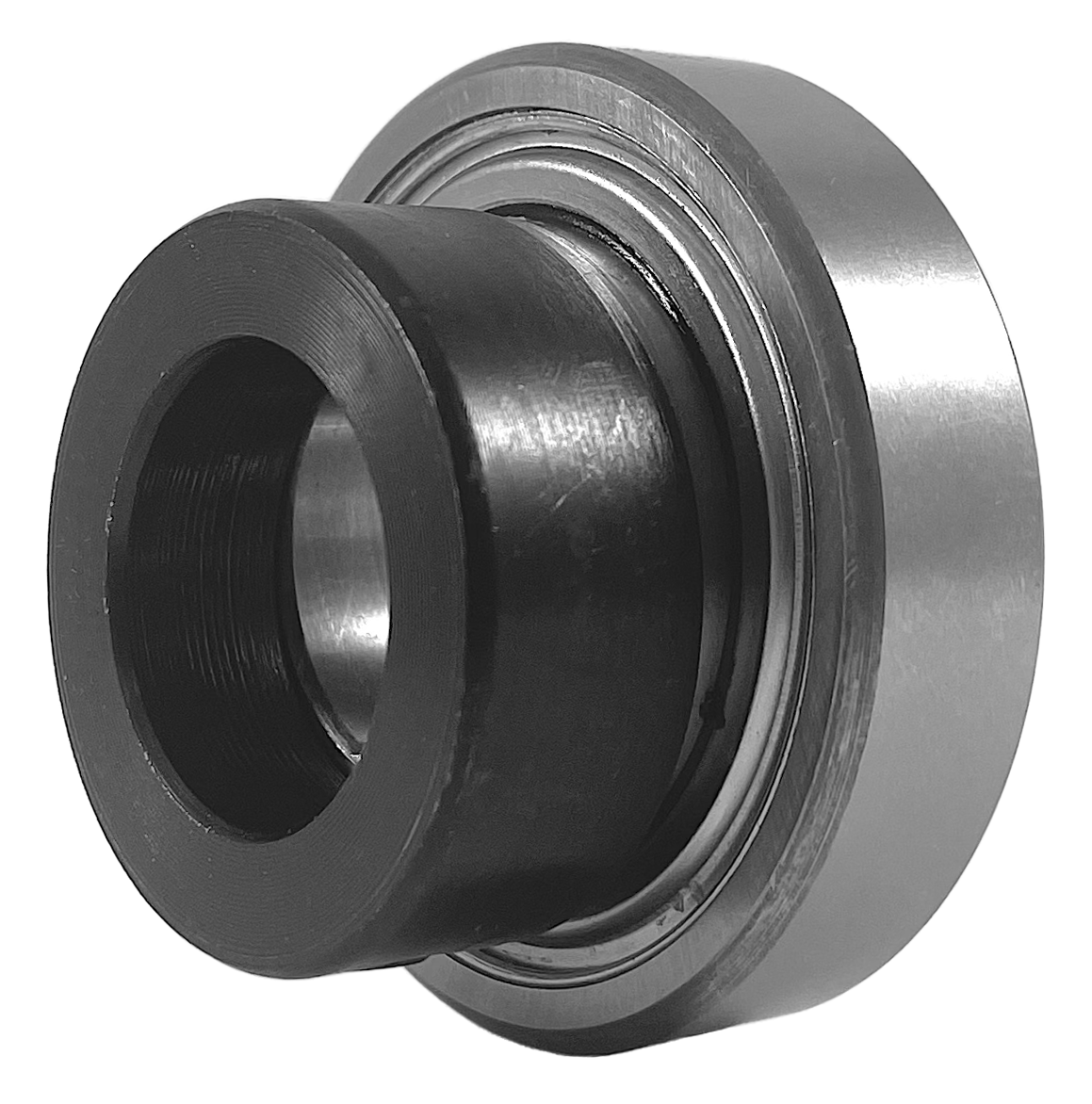

• Bearing Insert: SA 202-10
• Housing Number: LF 203
• Weight (LBS): 0.5
