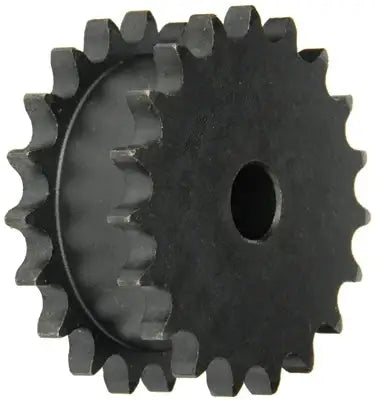

DS50A19H Sprocket (Double Single)
DS50A19H sprocket ANSI double single sprocket
DS50A19H Sprocket

Our Price: $74.99
Note: Contact Us For Large Quantity Request


Product Code: DS50A19H-SPROCKET
Qty:

Description Technical Specs

This DS50A19H sprocket is a durable, high quality, and precision double single sprocket with 19 hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket thus preventing premature wear or breakage. This double single sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. DS50A19H sprockets with a stock bore are supplied with a standard 5/8" inside diameter hole with no keyway or set screws and can be easily machine bored to custom sizes. If you are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.

Dimensions:

  • Sprocket Size: DS50A19H
  • Tooth Count: 19
  • Outside Diameter: 4.120"
  • Pitch Diameter: 3.797"
  • Sprocket Type: A
  • Minimum Bore Size: 5/8"
  • Maximum Bore Size: 2-1/16"
  • Dimension (L): 1-21/32"
  • Dimension (C): 1-5/16"
  • Dimension (E): 3-5/64"
  • Dimension (W): 0.343"
  • Sprocket Weight: 3.7 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • Premium Quality Sprocket
    • Manufactured Using High-Quality Steel
    • Fully Meets ANSI Standards
    • Black Oxide Coated
    • Interchangeable With Other Manufactures
    • Extremely Durable and High-Performance
