General Duty Plus #50 Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

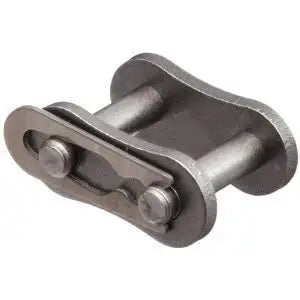

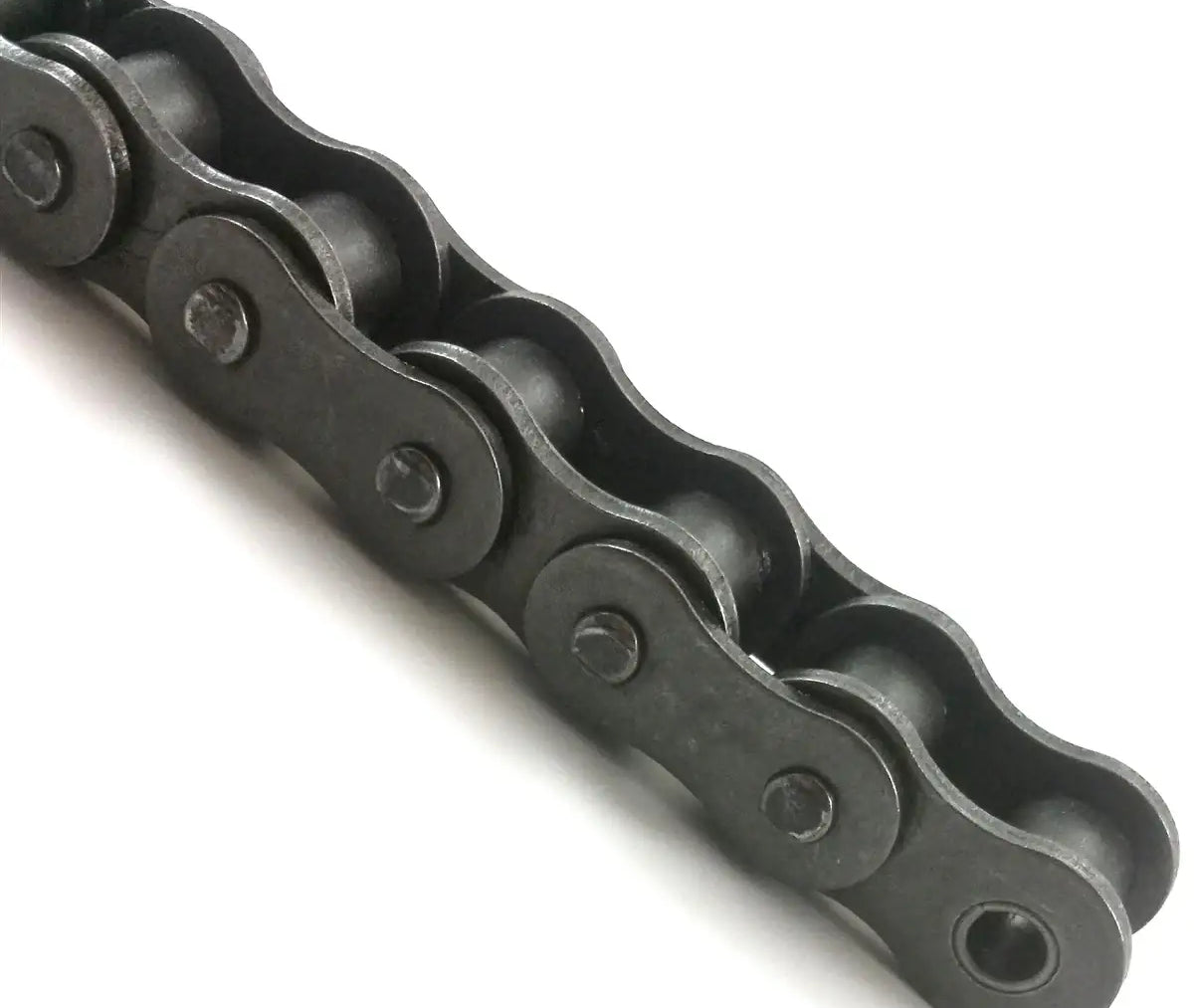

This #50 roller chain offers high strength, a long working life, and durability. General Duty Plus Series roller chains have shot peened and heat treated components that drastically increase the chains strength, working life, and overall performance. This #50 roller chain has a tensile strength of 6,600lbs and is commonly supplied as 10ft boxes, 50ft reels, and 100ft reels. But we also offer #50 roller chain at alternate lengths per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation and keep you up and running. Another thing that extra connecting links and offset links are good for is making those miscellaneous repairs that need to be done to keep you in operation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #50 Roller chain or any of its accessories that we offer, please contact us and we will be happy to assist you.
#50 Roller Chain Dimensions
Chain Size: #50 Roller Chain Tensile Strength: 6,600lbs Pitch (P): 0.625" Roller Width (W): 0.400" Roller Diameter (R): 0.375" Plate Height (H): 0.579" Plate Thickness (T): 0.080" Pin Diameter (D): 0.156" Overall Width (F): 0.802"
Chain Size: #50 Roller Chain Tensile Strength: 6,600lbs Pitch (P): 0.625" Roller Width (W): 0.400" Roller Diameter (R): 0.375" Plate Height (H): 0.579" Plate Thickness (T): 0.080" Pin Diameter (D): 0.156" Overall Width (F): 0.802"
