Description
Specification

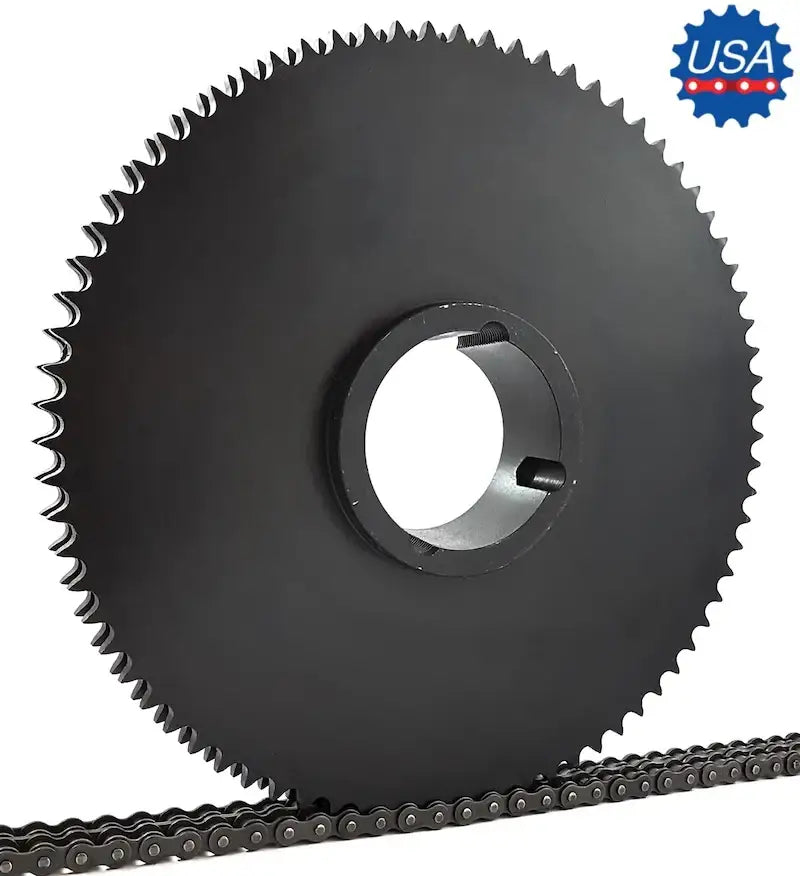

This D50CTB76 sprocket is a durable, high quality, and precision double sprocket that is manufactured to accept a 2517 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. D50CTB76 sprockets are made to accept a 2517 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

Dimensions:

  • Sprocket Size: D50CTB76
  • Bushing Type: 2517
  • Tooth Count: 76
  • Outside Diameter: 15.486"
  • Pitch Diameter: 15.124"
  • Dimension (L): 1-3/4"
  • Dimension (C): 4-3/8"
  • Sprocket Type: C
  • Sprocket Weight: 41.2 LBS
  • Bushing Weight: 3.5 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Sprocket
  • Manufactured Using High-Quality Steel
  • Fully Meets ANSI Standards
  • Black Oxide Coated
  • Interchangeable With Other Manufactures
  • Extremely Durable and High-Performance
Featured image
  • Sprocket Size: D50CTB76
  • Bushing Type: 2517
  • Tooth Count: 76
  • Outside Diameter: 15.486"
  • Pitch Diameter: 15.124"
  • Dimension (L): 1-3/4"
  • Dimension (C): 4-3/8"
  • Sprocket Type: C
  • Sprocket Weight: 41.2 LBS
  • Bushing Weight: 3.5 LBS
