#50-2 Roller Chain - Duplex Roller Chain

50-2 roller chain is a duplex roller chain with a 0.625" pitch. This chain is manufactured to ANSI B29.1 standards and directly interchanges with other manufactures. Our 50-2 chain is manufactured using heat-treated components for added strength, that are also shot peened for fatigue resistance, then the chain is pre-stretched at the factory so there is reduced long term elongation. We supply this chain as 10' boxes but also stock 50' and 100' reels for customers who need longer lengths of chain.

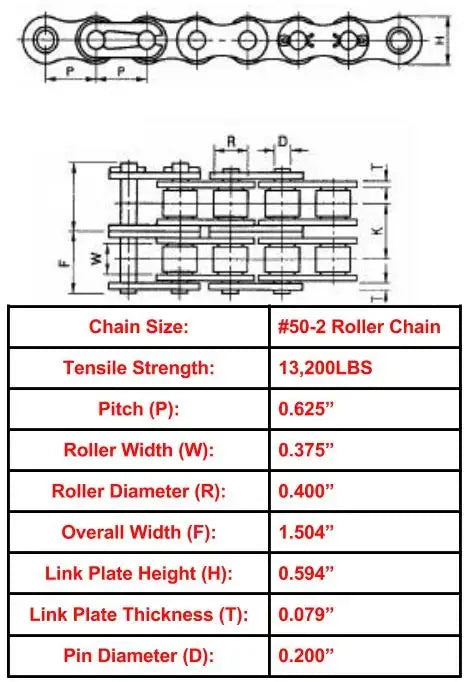

50-2 Roller Chain Dimensions

• Chain Size: #50-2
• Tensile Strength: 13,200lbs
• Pitch (P): 0.625"
• Roller Width (W): 0.375"
• Roller Diameter (R): 0.400"
• Overall Chain Width (F): 1.504"
• Link Plate Height (H): 0.594"
• Link Plate Thickness (T): 0.079"
• Pin Diameter (D): 0.200"
• Specifications Met: ANSI Standards

50-2 Roller Chain Sprockets

Besides ANSI 50-2 roller chain we also stock a full line of high-quality double strand (duplex) sprockets. All of our 50-2 roller chain sprockets feature hardened teeth for sprockets 30-teeth and under, as well as black oxide coating, and most of them are manufactured from SAR1045 steel.

50-2 Roller Chain Attachments

Duplex chain attachments can be difficult to source however, USA Roller Chain and Sprockets can supply 50-2 roller chain attachments right off the shelf. We can also supply a complete chain with the attachments already assembled onto it. To get a quote on 50-2 attachments or attachment roller chain you can give us a call or submit a request for quote form on our roller chain attachments section.

Additional 50-2 Chain Accessories

If you need to pull, break, or tension your 50-2 roller chain we can supply the tools and accessories necessary to do so. We also stock roller chain guides for double strand roller chains, as well as chain lube.
