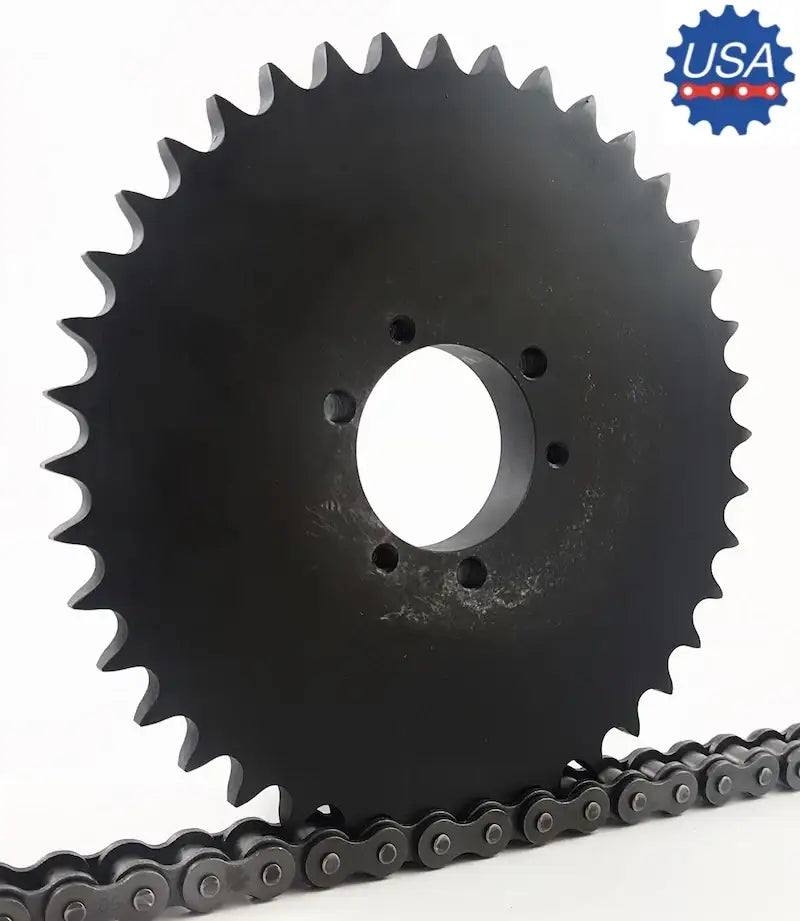

50SDS40 Sprocket (QD Type)
50SDS40 Sprocket QD Type 50SDS40 Sprocket
50SDS40 Sprocket

Our Price: $96.99
Note: Contact Us For Large Quantity Request


Availability: In-Stock
Product Code: 50SDS40-SPROCKET
Qty:

Description Technical Specs

This 50SDS40 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept an SDS bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket . This also prevents premature wear or breakage and means that the sprocket will directly interchange with other manufactures sprockets. This sprocket is also black oxide coated thus increasing resistance to the environment and will prevent early corrosion. 50SDS40 sprockets are manufactured to accept a SDS type QD bushing which, we also stock with a wide range of bore sizes. Additionally offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

50SDS40 Sprocket Dimensions
  • Sprocket Size: 50SDS40
  • Tooth Count: 40
  • Bushing Size: SDS
  • Outside Diameter: 8.320"
  • Pitch Diameter: 7.966"
  • Dimension (L1): 1-1/2"
  • Dimension (L2): 1-1/2"
  • Dimension (C): 3-3/16"
  • Dimension (Y): 31/32"
  • Dimension (G): 13/32"
  • Dimension (X): 3/4"
  • Dimension (T): 0.343"
  • Bushing Weight: 1.00 LBS
  • Sprocket Weight: 4.74 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • Premium Quality Sprocket
    • Manufactured Using High-Quality Steel
    • Fully Meets ANSI Standards
    • Black Oxide Coated
    • Interchangeable With Other Manufactures
    • Extremely Durable and High-Performance
