50H38 Sprocket (Taper Bushed)
50H38 Sprocket Taper Bushed 50H38 Sprocket
50H38 Sprocket

Our Price: $119.99
Note: Contact Us For Large Quantity Request


Availability: In-Stock
Product Code: 50H38-SPROCKET
Qty:

Description Technical Specs

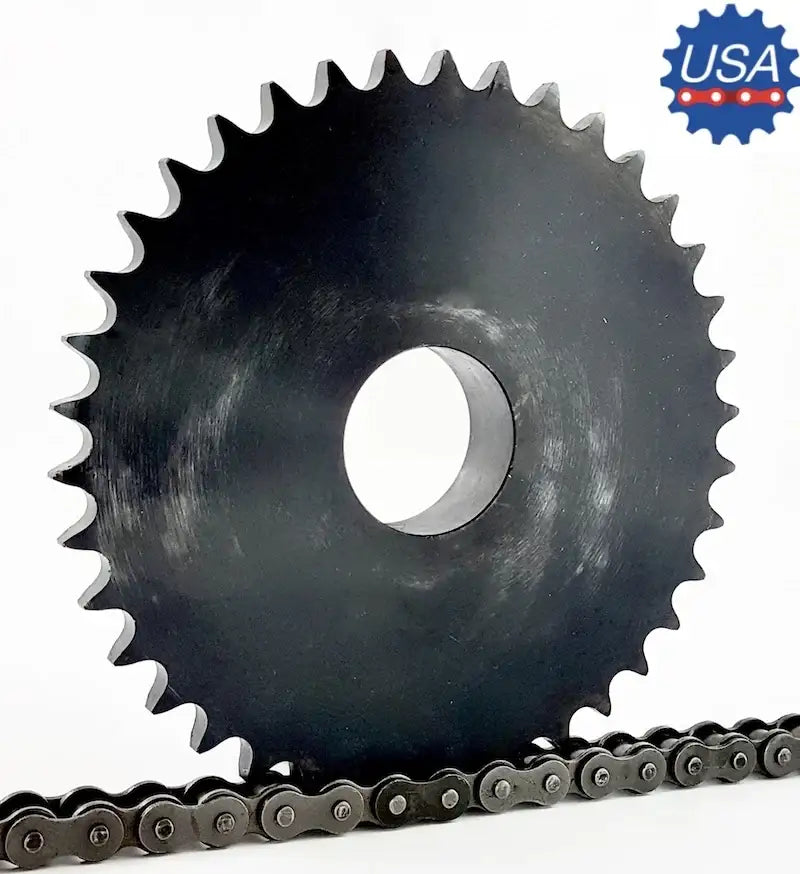

This 50H38 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a H bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket which prevents premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment thus preventing early rust build up. 50H38 sprockets are made to accept a H type taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore or MTO sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

50H38 Taper Bushed Sprocket Dimensions
  • Sprocket Size: 50H38
  • Tooth Count: 38
  • Bushing Type: H
  • Outside Diameter: 7.920"
  • Pitch Diameter: 7.569"
  • Dimension (OL): 1-1/2"
  • Dimension (L): 1-1/4"
  • Dimension (C): 1/16"
  • Dimension (H): 2-1/2"
  • Dimension (P): 31/32"
  • Dimension (T): 0.343"
  • Sprocket Weight: 4.4 LBS
  • Bushing Weight: 0.8 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • Premium Quality Sprocket
    • Manufactured Using High-Quality Steel
    • Fully Meets ANSI Standards
    • Black Oxide Coated
    • Interchangeable With Other Manufactures
    • Extremely Durable and High-Performance
