• 41SH22 Sprocket QD Type 41SH22 Sprocket
1 1

41SH22 Sprocket (QD Type)

41SH22 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$36.99
$36.99
In Stock
On Sale Sold out
Product Code: 41SH22-SPROCKET
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
41 Roller Chain | ANSI 41 Chain 10ft Box
41 Roller Chain | ANSI 41 Chain 10ft Box
Login
General Duty Plus #41 Roller Chain - 10ft Box
General Duty Plus #41 Roller Chain - 10ft Box
$32.99
Login
Premium #41 Roller Chain - 10ft Box | Premier Series Chain
Premium #41 Roller Chain - 10ft Box | Premier Series Chain
$59.99
Login
View full details
Description
Specification

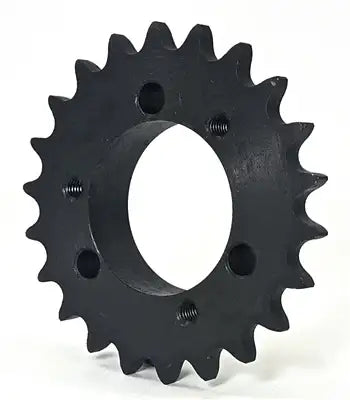

This 41SH22 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a SH bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #41 roller chain and sprocket which prevents premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated thus increasing resistance to the environment and will prevent early corrosion. 41SH22 sprockets are bored to accept a SH size QD bushing which, we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom sprocket we have the capabilities on providing them within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

41SH22 Sprocket Dimensions
  • Sprocket Size: 41SH22
  • Tooth Count: 22
  • Bushing Size: SH
  • Outside Diameter: 3.780"
  • Pitch Diameter: 3.513"
  • Hub Type: B
  • Dimension (L1): 1-7/16"
  • Dimension (L2): 1-7/16"
  • Dimension (C): 2-11/16"
  • Dimension (Y): 1-1/32"
  • Dimension (G): 37/64"
  • Dimension (X): 13/16"
  • Dimension (T): 0.227"
  • Sprocket Weight: 1.06 LBS
  • Weight With Hub: 2.06 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Sprocket
  • Fully Meets ANSI Standards
  • QD-Type Configuration
  • Manufactured Out Of High-Quality Steel
  • Interchangeable With Other Brands
  • Extremely Durable
Featured image
  • Sprocket Size: 41SH22
  • Tooth Count: 22
  • Bushing Size: SH
  • Outside Diameter: 3.780"
  • Pitch Diameter: 3.513"
  • Hub Type: B
  • Dimension (L1): 1-7/16"
  • Dimension (L2): 1-7/16"
  • Dimension (C): 2-11/16"
  • Dimension (Y): 1-1/32"
  • Dimension (G): 37/64"
  • Dimension (X): 13/16"
  • Dimension (T): 0.227"
  • Sprocket Weight: 1.06 LBS
  • Weight With Hub: 2.06 LBS
