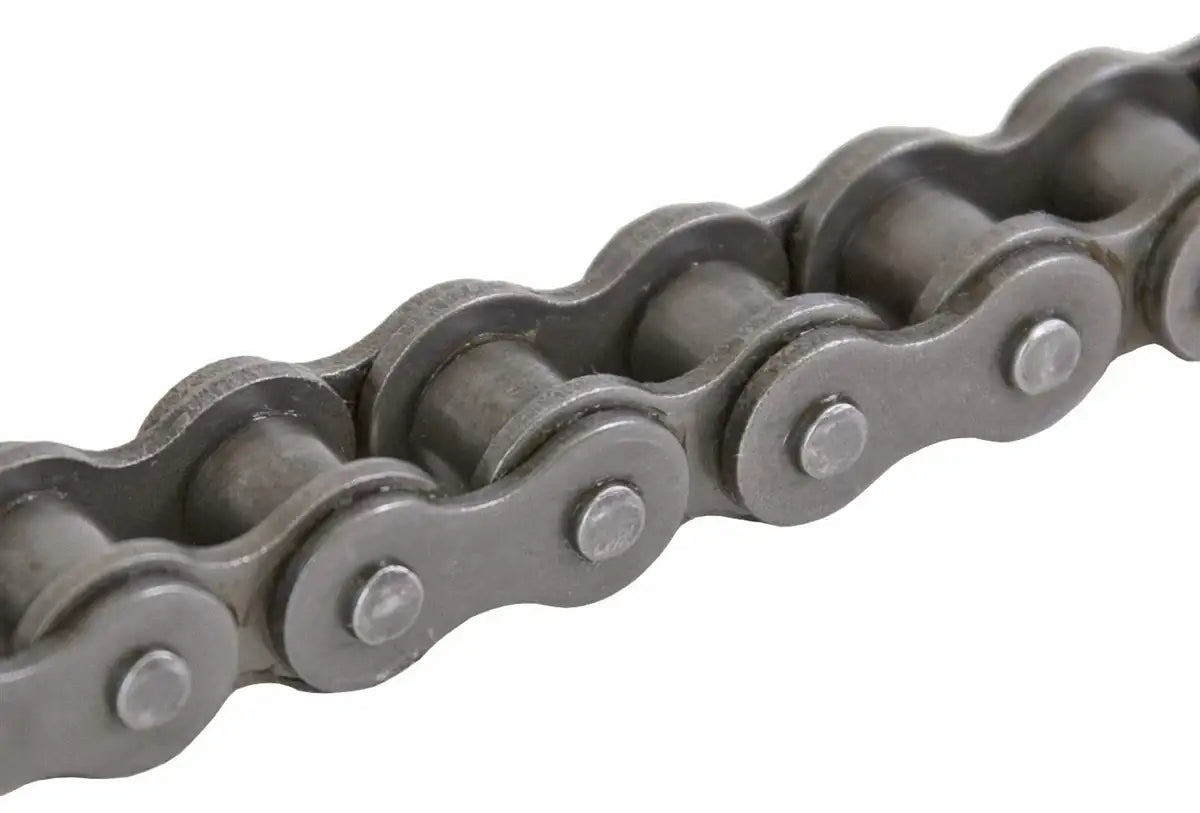

41 Roller Chain - ANSI 41 Chain 10ft Box
SKU: ECO-41RC-10ft
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
41 Roller Chain - ANSI 41 Chain 10ft Box Description/Features
41 Roller Chain - ANSI 41 Chain 10ft Box Specifications
#41 roller chain is a 1/2" ANSI B29.1 chain that possesses a high tensile strength with a narrow form-factor for application flexibility and usability. Standard Duty series 41 chain was engineered for general light to even medium-duty industrial or agricultural applications, it is made using heat-treated components, factory pre-loaded to minimize initial stretch as well as operation stretch over time, and is part pre-lubed then factory dipped in a good-quality lubricant. Specifically, this 41 chain provides solid durability and great long-term performance versus other chains within the same price range or class. Because of its design, 41 chain has become the most common size of chain used for gate operators, garage door openers, roll-up doors, and an assortment of light to medium duty conveying and drive applications. At USA Roller Chain we supply our #41 roller chain in a range of packaging options ranging from 10ft boxes to 500ft reels for applications requiring loner continuous-lengths of the chain. After you select and purchase your chain make sure to use proper roller chain lubrication as well as proper roller chain tension, these practices not only improve chain performance but greatly increases longevity which reduces the need for downtime.
Pitch (P): 0.500"
Roller Width (W): 0.251"
Roller Diameter (D): 0.306"
Overall Width (A): 0.522"
Plate Height (H): 0.390"
Plate Thickness (T): 0.050"
Pin Diameter (E): 0.141"
Average Ultimate Strength: 2,000 LBS
Weight: 0.28 LBS/ FT
- Download The #41 Roller Chain Spec Sheet
In our ANSI 41 chain class, we offer a range of options as far as quality levels, packaging, and even material options. We also supply various attachments and even problem solver series #41 roller chain. To find out more view our complete section of 41 Roller Chain here!
41 Roller Chain Dimensions
Pitch (P): 0.500"
Roller Width (W): 0.251"
Roller Diameter (D): 0.306"
Overall Width (A): 0.522"
Plate Height (H): 0.390"
Plate Thickness (T): 0.050"
Pin Diameter (E): 0.141"
Average Ultimate Strength: 2,000 LBS
Weight: 0.28 LBS/ FT
- Download The #41 Roller Chain Spec SheetBulk 41 Roller Chain
Please note that we also supply cut-to-length custom strands of 35 chain as well.
41 Roller Chain Sprockets
The below charts show our standArd sprockets for 41 roller chain, we also supply custom and MTO sprockets upoin request.#41 A-Plate Sprockets
| Sprocket Size | Tooth Count | Type | Outside Diameter | Stock Bore | Weight (LBS) |
|---|---|---|---|---|---|
| 41A15 | 15 | A | 5/8 |
|
0.28 |
| 41A16 | 16 | A | 5/8 |
|
0.34 |
| 41A17 | 17 | A | 5/8 |
|
0.36 |
| 41A18 | 18 | A | 5/8 |
|
0.44 |
| 41A19 | 19 | A | 5/8 |
|
0.46 |
| 41A20 | 20 | A | 5/8 |
|
0.52 |
| 41A21 | 21 | A | 5/8 |
|
0.60 |
| 41A22 | 22 | A | 5/8 |
|
0.66 |
| 41A23 | 23 | A | 5/8 |
|
0.72 |
| 41A24 | 24 | A | 5/8 |
|
0.82 |
| 41A25 | 25 | A | 5/8 |
|
0.88 |
| 41A26 | 26 | A | 5/8 |
|
0.94 |
| 41A27 | 27 | A | 5/8 |
|
1.00 |
| 41A28 | 28 | A | 5/8 |
|
1.08 |
| 41A30 | 30 | A | 19/32 |
|
1.20 |
| 41A32 | 32 | A | 19/32 |
|
1.44 |
| 41A35 | 35 | A | 19/32 |
|
1.70 |
| 41A36 | 36 | A | 19/32 |
|
1.84 |
| 41A40 | 40 | A | 23/32 |
|
2.22 |
| 41A42 | 42 | A | 23/32 |
|
2.50 |
| 41A45 | 45 | A | 23/32 |
|
2.52 |
| 41A48 | 48 | A | 23/32 |
|
2.92 |
| 41A54 | 54 | A | 23/32 |
|
3.54 |
| 41A60 | 60 | A | 21/32 |
|
4.60 |
| 41A70 | 70 | A | 23/32 |
|
6.22 |
| 41A72 | 72 | A | 23/32 |
|
6.32 |
| 41A80 | 80 | A | 23/32 |
|
8.46 |
| 41A84 | 84 | A | 23/32 |
|
9.12 |
| 41A96 | 96 | A | 15/16 |
|
11.84 |
| 41A112 |
112 |
A | 15/16 |
|
15.84 |
#41 B-Hub Sprockets
| Sprocket Size | Tooth Count | Type | Outside Diameter | Stock Bore | Recommend Max. Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|
| 41B6 | 6 | B | 1.170 | 3/8 | 3/8 | 21/32 | 7/8 | 0.07 |
| 41B7 | 7 | B | 1.340 | 3/8 | 3/8 | 3/4 | 7/8 | 0.10 |
| 41B8 | 8 | B | 1.510 | 1/2 | 1/2 | 63/64 | 7/8 | 0.19 |
| 41B9 | 9 | B | 1.670 | 1/2 | 5/8 | 1-1/8 | 7/8 | 0.20 |
| 41B10 | 10 | B | 1.840 | 1/2 | 3/4 | 1-1/4 | 7/8 | 0.27 |
| 41B11 | 11 | B | 2.000 | 1/2 | 7/8 | 1-7/16 | 7/8 | 0.35 |
| 41B12 | 12 | B | 2.170 | 1/2 | 15/16 | 1-9/16 | 7/8 | 0.44 |
| 41B13 | 13 | B | 2.330 | 1/2 | 1 | 1-9/16 | 7/8 | 0.50 |
| 41B14 | 14 | B | 2.490 | 1/2 | 1-1/4 | 1-3/4 | 7/8 | 0.57 |
| 41B15 | 15 | B | 2.650 | 1/2 | 1-5/16 | 1-29/32 | 7/8 | 0.72 |
| 41B16 | 16 | B | 2.810 | 5/8 | 1-3/8 | 2-1/16 | 7/8 | 0.91 |
| 41B17 | 17 | B | 2.970 | 5/8 | 1-1/2 | 2-15/64 | 1 | 1.09 |
| 41B18 | 18 | B | 3.140 | 5/8 | 1-5/8 | 2-3/8 | 1 | 1.25 |
| 41B19 | 19 | B | 3.300 | 5/8 | 1-3/4 | 2-15/32 | 1 | 1.49 |
| 41B20 | 20 | B | 3.460 | 5/8 | 1-7/8 | 2-3/4 | 1 | 1.64 |
| 41B21 | 21 | B | 3.620 | 5/8 | 1-7/8 | 2-7/8 | 1 | 1.81 |
| 41B22 | 22 | B | 3.780 | 5/8 | 2 | 3 | 1 | 1.93 |
| 41B23 | 23 | B | 3.940 | 5/8 | 2-1/4 | 3-3/16 | 1 | 2.25 |
| 41B24 | 24 | B | 4.100 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.33 |
| 41B25 | 25 | B | 4.260 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.46 |
| 41B26 | 26 | B | 4.420 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.50 |
| 41B27 | 27 | B | 4.580 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.56 |
| 41B28 | 28 | B | 4.740 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.64 |
| 41B30 | 30 | B | 5.060 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.80 |
| 41B32 | 32 | B | 5.380 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.96 |
| 41B35 | 35 | B | 5.860 | 5/8 | 2-3/8 | 3-1/4 | 1 | 3.12 |
| 41B36 | 36 | B | 6.020 | 5/8 | 2-3/8 | 3-1/4 | 1 | 3.32 |
| 41B40 | 40 | B | 6.650 | 3/4 | 2-3/8 | 3-1/4 | 1-1/16 | 4.06 |
| 41B42 | 42 | B | 6.970 | 3/4 | 2-3/8 | 3-1/2 | 1-1/16 | 4.10 |
| 41B45 | 45 | B | 7.450 | 3/4 | 2-3/8 | 3-1/2 | 1-1/16 | 4.18 |
| 41B48 | 48 | B | 7.930 | 3/4 | 2-3/8 | 3-1/2 | 1-1/16 | 4.92 |
| 41B54 | 54 | B | 8.880 | 3/4 | 2-3/8 | 3-1/2 | 1-1/16 | 5.68 |
| 41B60 | 60 | B | 9.840 | 3/4 | 2-3/8 | 3-1/2 | 1-1/16 | 6.78 |
| 41B70 | 70 | B | 11.430 | 3/4 | 2-3/4 | 4 | 1-3/16 | 9.54 |
| 41B72 | 72 | B | 11.750 | 3/4 | 2-3/4 | 4 | 1-3/16 | 9.64 |
| 41B80 | 80 | B | 13.030 | 3/4 | 2-3/4 | 4 | 1-3/16 | 11.54 |
| 41B84 | 84 | B | 13.660 | 3/4 | 2-3/4 | 4 | 1-3/16 | 12.20 |
| 41B96 | 96 | B | 15.570 | 1 | 2-3/4 | 4 | 1-3/16 | 14.86 |
| 41B112 | 112 | B | 18.120 | 1 | 2-3/4 | 4 | 1-3/16 | 19.16 |
#41 Taper Bushed Sprockets
| Sprocket Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Max. Bore | Dimension (L) | Dimension (C) | Type | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|
| 41BTB14 | 14 | 1008 | 2.490 | 2.247 | 1 | 7/8 | 1-7/8 | B | 0.4 |
| 41BTB15 | 15 | 1008 | 2.650 | 2.405 | 1 | 7/8 | 1-7/8 | B | 0.5 |
| 41BTB16 | 16 | 1008 | 2.810 | 2.503 | 1 | 7/8 | 2 | B | 0.6 |
| 41BTB17 | 17 | 1210 | 2.970 | 2.721 | 1-1/4 | 1 | 2-3/8 | B | 0.7 |
| 41BTB18 | 18 | 1210 | 3.140 | 2.879 | 1-1/4 | 1 | 2-3/8 | B | 0.9 |
| 41BTB19 | 19 | 1210 | 3.300 | 3.038 | 1-1/4 | 1 | 2-1/2 | B | 1.1 |
| 41BTB20 | 20 | 1610 | 3.460 | 3.196 | 1-5/8 | 1 | 2-7/8 | B | 1.1 |
| 41BTB21 | 21 | 1610 | 3.620 | 3.355 | 1-5/8 | 1 | 3 | B | 1.2 |
| 41BTB22 | 22 | 1610 | 3.780 | 3.513 | 1-5/8 | 1 | 3 | B | 1.3 |
| 41BTB23 | 23 | 1610 | 3.940 | 3.672 | 1-5/8 | 1 | 3 | B | 1.4 |
| 41BTB24 | 24 | 1610 | 4.100 | 3.831 | 1-5/8 | 1 | 3 | B | 1.4 |
| 41BTB25 | 25 | 1610 | 4.260 | 3.989 | 1-5/8 | 1 | 3 | B | 1.5 |
| 41BTB26 | 26 | 1610 | 4.420 | 4.148 | 1-5/8 | 1 | 3 | B | 1.5 |
| 41BTB28 | 28 | 1610 | 4.740 | 4.466 | 1-5/8 | 1 | 3 | B | 1.7 |
| 41BTB30 | 30 | 1610 | 5.060 | 4.783 | 1-5/8 | 1 | 3 | B | 1.8 |
| 41BTB32 | 32 | 1610 | 5.380 | 5.101 | 1-5/8 | 1 | 3 | B | 1.9 |
| 41BTB35 | 35 | 1610 | 5.860 | 5.578 | 1-5/8 | 1 | 3 | B | 2.3 |
| 41BTB36 | 36 | 1610 | 6.020 | 5.737 | 1-5/8 | 1 | 3 | B | 2.4 |
| 41BTB40 | 40 | 1610 | 6.650 | 6.373 | 1-5/8 | 1 | 3 | B | 2.7 |
| 41BTB45 | 45 | 1610 | 7.450 | 7.168 | 1-5/8 | 1 | 3 | B | 3.5 |
| 41BTB48 | 48 | 1610 | 7.930 | 7.645 | 1-5/8 | 1 | 3 | B | 4.1 |
| 41BTB54 | 54 | 1610 | 8.880 | 8.599 | 1-5/8 | 1 | 3 | B | 4.9 |
| 41BTB60 | 60 | 1610 | 9.840 | 9.554 | 1-5/8 | 1 | 3 | B | 5.7 |
| 41BTB70 | 70 | 1610 | 11.430 | 11.145 | 1-5/8 | 1 | 3 | B | 7.4 |
| 41BTB72 | 72 | 1610 | 11.750 | 11.463 | 1-5/8 | 1 | 3 | B | 8.2 |
| 41BTB80 | 80 | 1610 | 13.030 | 12.736 | 1-5/8 | 1 | 3 | B | 9.6 |
| 41BTB96 | 96 | 1610 | 15.570 | 15.282 | 1-5/8 | 1 | 3 | B | 13.1 |
#41 QD Sprockets
| Sprocket Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Type | Max. Bore | Dimension (L1) | Dimension (L2) | Dimension (C) | Dimension (Y) | Dimension (G) | Dimension (T) | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41JA15 | 15 | JA | 2.650 | 2.405 | B | 1-1/4 | 1-1/8 | 1-1/8 | 2-1/16 | 49/64 | 25/64 | .227 | 0.32 |
| 41JA16 | 16 | JA | 2.810 | 2.563 | B | 1-1/4 | 1-1/8 | 1-1/8 | 2-1/16 | 49/64 | 25/64 | .227 | 0.40 |
| 41JA17 | 17 | JA | 2.980 | 2.721 | B | 1-1/4 | 1-1/8 | 1-1/8 | 2-1/16 | 49/64 | 25/64 | .227 | 0.50 |
| 41JA18 | 18 | JA | 3.140 | 2.879 | B | 1-1/4 | 1-1/8 | 1-1/8 | 2-1/16 | 49/64 | 25/64 | .227 | 0.60 |
| 41JA19 | 19 | JA | 3.300 | 3.038 | B | 1-1/4 | 1-1/8 | 1-1/8 | 2-1/16 | 49/64 | 25/64 | .227 | 0.68 |
| 41SH20 | 20 | SH | 3.460 | 3.196 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 0.78 |
| 41SH21 | 21 | SH | 3.620 | 3.355 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 0.82 |
| 41SH22 | 22 | SH | 3.780 | 3.513 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.06 |
| 41SH23 | 23 | SH | 3.940 | 3.672 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.14 |
| 41SH24 | 24 | SH | 4.100 | 3.831 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.16 |
| 41SH25 | 25 | SH | 4.260 | 3.989 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.22 |
| 41SH26 | 26 | SH | 4.420 | 4.148 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.26 |
| 41SH27 | 27 | SH | 4.580 | 4.307 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.40 |
| 41SH28 | 28 | SH | 4.740 | 4.466 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.54 |
| 41SH30 | 30 | SH | 5.060 | 4.783 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.58 |
| 41SH32 | 32 | SH | 5.380 | 5.101 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.68 |
| 41SH35 | 35 | SH | 5.860 | 5.578 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.79 |
| 41SDS36 | 36 | SDS | 6.020 | 5.737 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 1.92 |
| 41SDS40 | 40 | SDS | 6.650 | 6.373 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 2.32 |
| 41SDS42 | 42 | SDS | 6.970 | 6.691 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 2.44 |
| 41SDS45 | 45 | SDS | 7.450 | 7.168 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 2.76 |
| 41SDS48 | 48 | SDS | 7.930 | 7.645 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 3.36 |
| 41SDS54 | 54 | SDS | 8.890 | 8.599 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 3.98 |
| 41SDS60 | 60 | SDS | 9.840 | 9.554 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 5.54 |
| 41SK70 | 70 | SK | 11.430 | 11.145 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 7.42 |
| 41SK72 | 72 | SK | 11.750 | 11.463 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 8.02 |
| 41SK80 | 80 | SK | 13.030 | 12.736 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 9.64 |
| 41SK84 | 84 | SK | 13.660 | 13.372 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 10.40 |
| 41SK96 | 96 | SK | 15.570 | 15.281 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 12.82 |
| 41SK112 | 112 | SK | 18.120 | 17.828 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 17.28 |
- Chain Size: #41 Roller Chain
- Tensile Strength: 2,000lbs
- Pitch (P): 0.500"
- Roller Width (W): 0.306"
- Roller Diameter (R): 0.250"
- Plate Height (H): 0.386"
- Plate Thickness (T): 0.050"
- Pin Diameter (D): 0.1410"
- Overall Width (F): 0.530"
