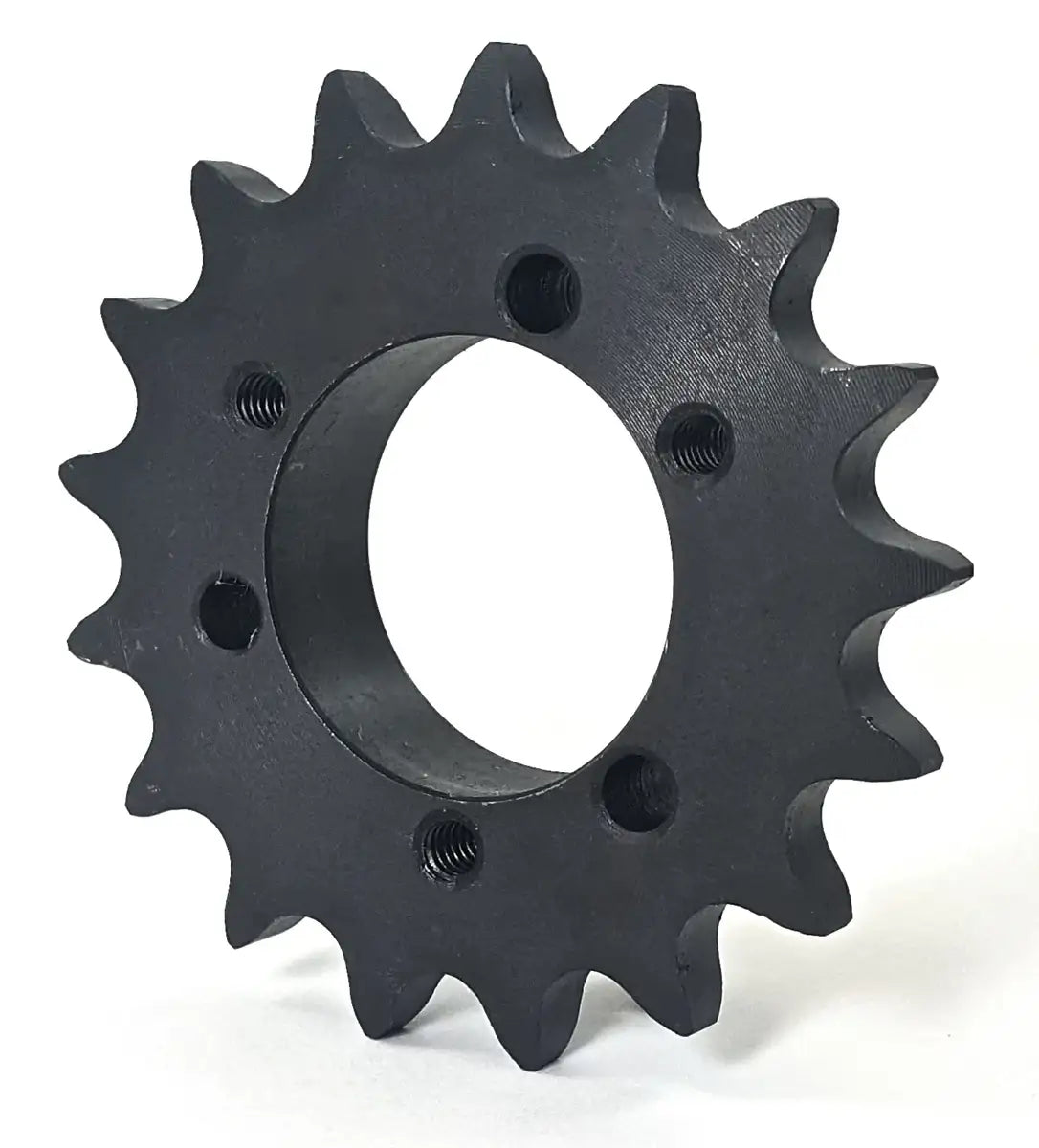

41JA15 Sprocket (QD Type)
41JA15 Sprocket (QD Type)
Note:
Custom Cut to Length Chain Also Available
Regular price
$15.99
$15.99
Unit price
per
In Stock
On Sale
Sold out
Product Code: 41JA15-SPROCKET
In Stock
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
This 41JA15 sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a JA bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #41 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated thus increasing resistance to the environment and will prevent early corrosion. 41JA15 sprockets are manufactured to accept a JA size QD bushing which, we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom sprocket we have the capabilities on providing them within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email:sales@usarollerchain.com
41JA15 Sprocket Dimensions
- Sprocket Size: 41JA15
- Tooth Count: 15
- Bushing Size: JA
- Outside Diameter: 2.650"
- Pitch Diameter: 2.405"
- Hub Type: B
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 49/64"
- Dimension (G): 25/64"
- Dimension (X): 5/8"
- Dimension (T): 0.227"
- Sprocket Weight: 0.32 LBS
- Weight With Hub: 1.22 LBS
Phone: (407) 347-3519
Email:
Feature
- Premium Quality Sprocket
- Fully Meets ANSI Standards
- QD-Type Configuration
- Manufactured Out Of High-Quality Steel
- Interchangeable With Other Brands
- Extremely Durable
- Sprocket Size: 41JA15
- Tooth Count: 15
- Bushing Size: JA
- Outside Diameter: 2.650"
- Pitch Diameter: 2.405"
- Hub Type: B
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 49/64"
- Dimension (G): 25/64"
- Dimension (X): 5/8"
- Dimension (T): 0.227"
- Sprocket Weight: 0.32 LBS
- Weight With Hub: 1.22 LBS
