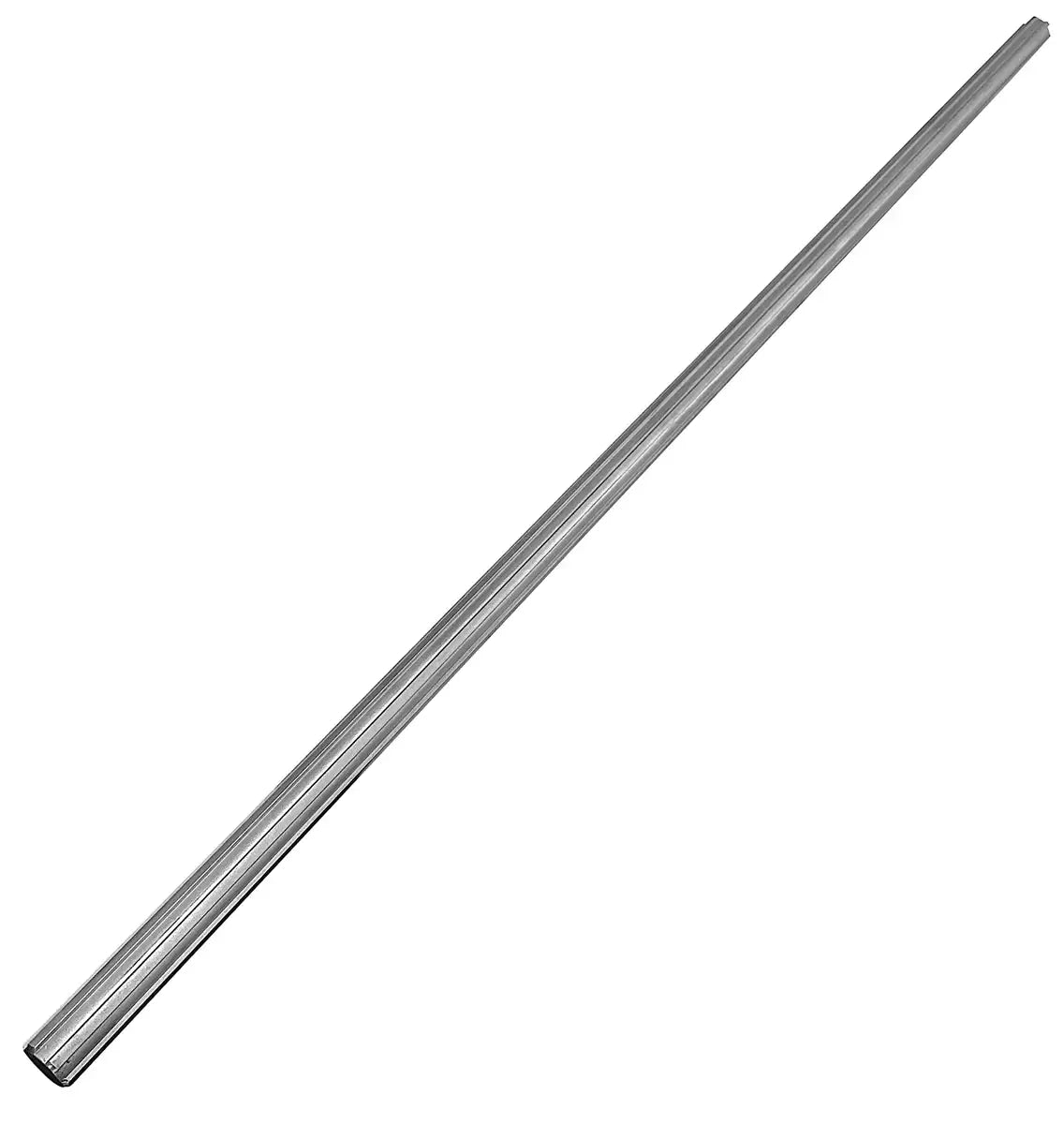

38mm Spline Shaft 8-Splines 304SS Material - 1000mm

38mm-spline-shaft-8-splines-304ss-1000mm

Alternative Views:

Our Price: $1,529.99

Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64899408-SHAFT

Qty:

Description

Technical Specs

Our premium stainless 38mm spline shaft, equipped with 8 splines and measuring 1000mm in length, is expertly machined from 304-grade stainless steel, offering excellent resistance to corrosion and abrasion. Ideal for food-grade, high-temperature, and low-temperature environments, this shaft adheres to DIN ISO 14 standards, ensuring compatibility and interchangeability with other brands and components such as hubs, collars, and couplings. Although it is available in a 1000mm length, we also provide other standard or custom lengths of stainless 38mm splined shafting. Engineered for precise and efficient torque transmission, it is perfect for industrial machinery, food processing equipment, and mechanical drives. Additionally, stainless 38mm spline shafts are effective for mechanically positioning components. For more information or to request a quote on our premium stainless 38mm spline shaft with 8 splines in a 1000mm length, please contact our customer service team, and we will be happy to assist you!

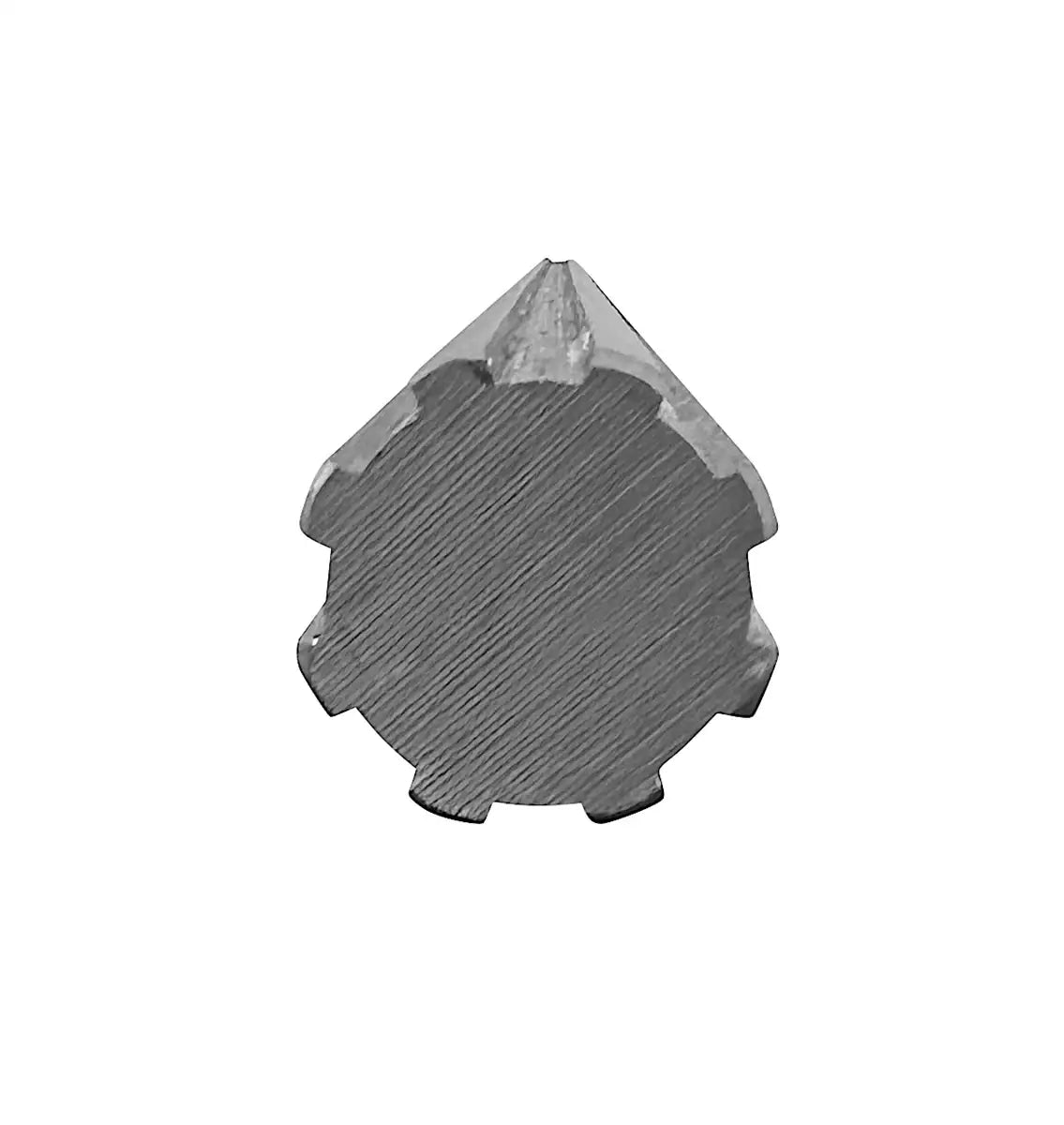

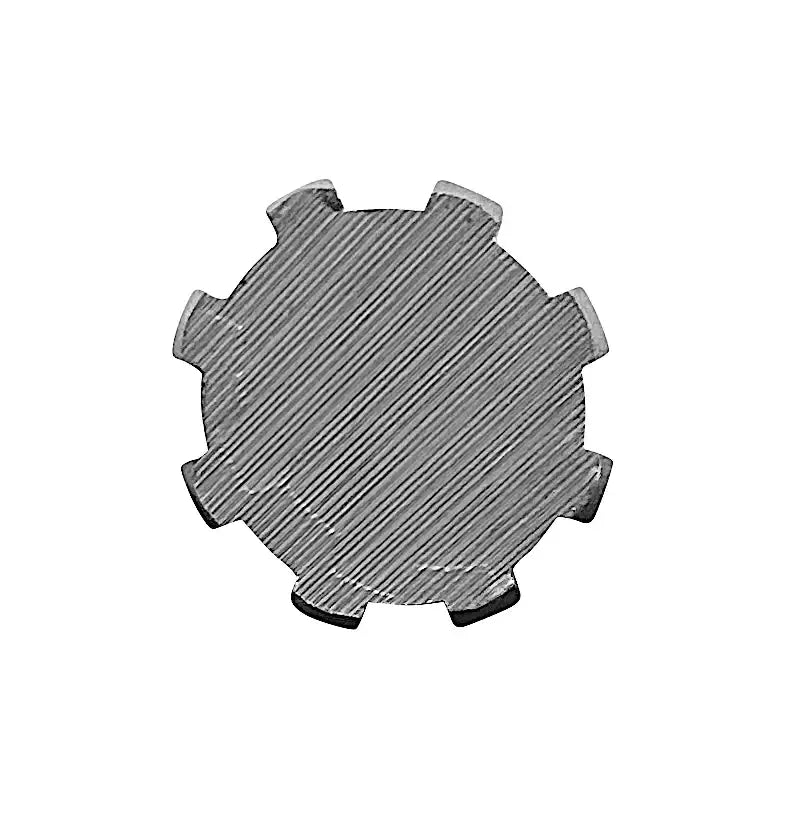

38mm Spline Shaft With 8-Splines Dimensions

Shaft Diameter (D): 38mm
Amount of Splines: 8
Dimension (d): 32mm
Dimension (b): 6mm
Length: 1000mm
Material: 304SS
Weight: 7.433 Kg/ Meter
Length Tolerance: 0.8mm/ Meter
Maximum Torsion: 0.5mm/ Meter

Features

- High Precision 38mm Splined Shaft
- Features 8-Splines
- Made From 304 Stainless Steel Material
- Cut to a 1000mm Length
- Conforms to ISO DIN 14 Dimensions
- Resistant to Corrosion & Abrasion
