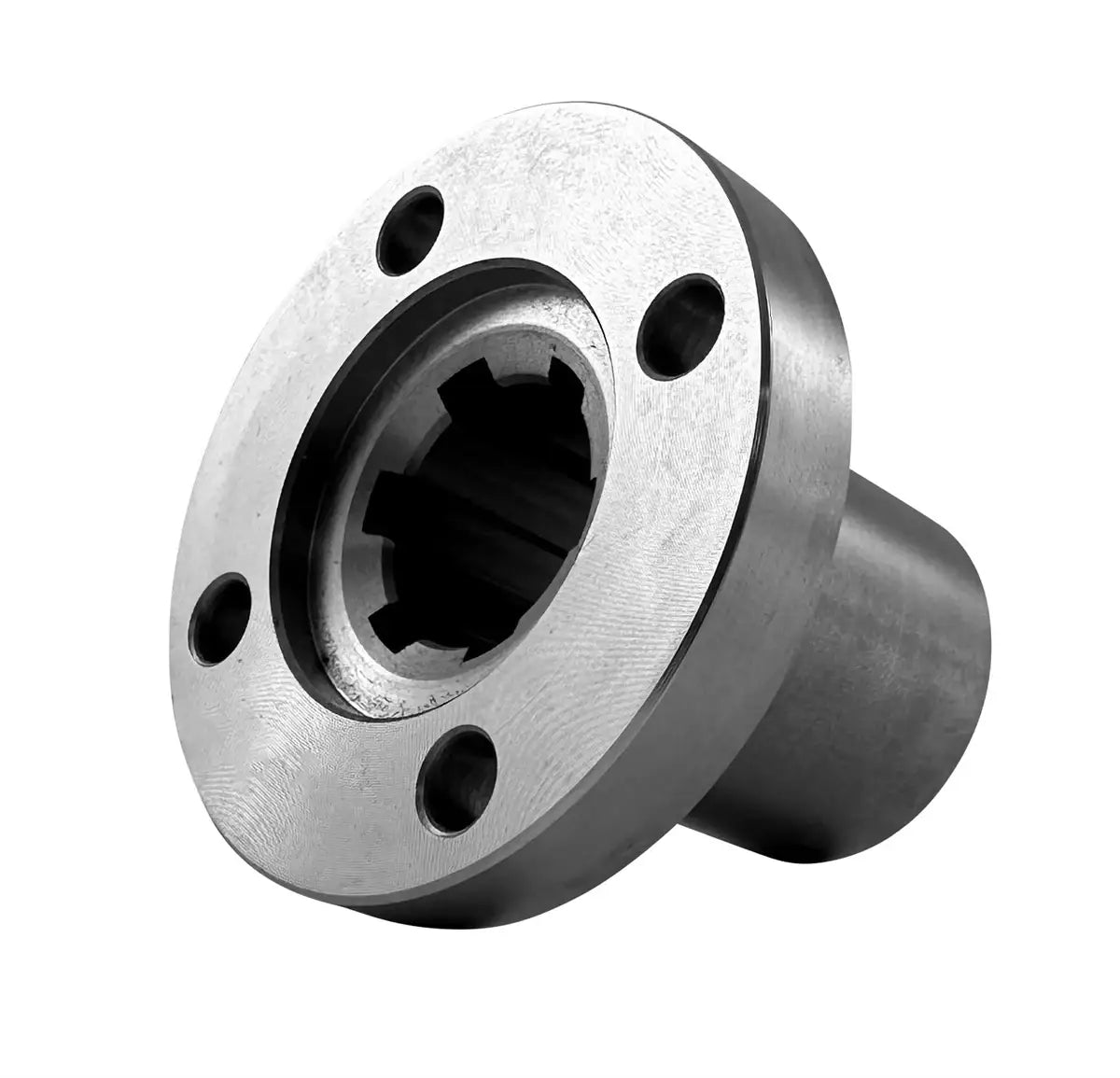

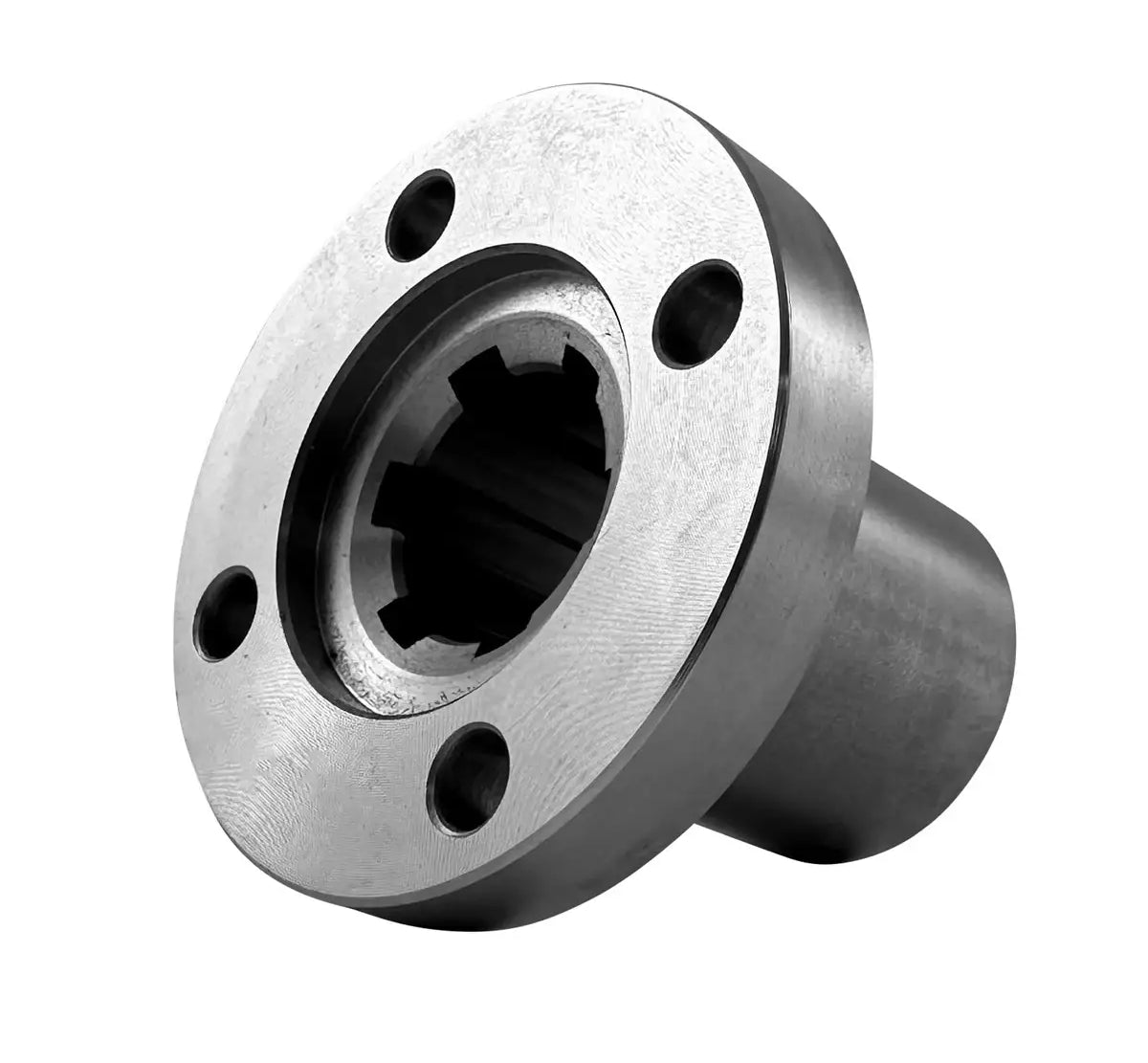

Splined Hub With Flange for 38mm Shaft With 8 Splines - Stainless Material

This premium splined hub with a flange is engineered for a 38mm shaft with 8 splines, made from precision stainless steel that aligns with ISO DIN 14 standards for easy interchangeability. Constructed from 303-grade stainless steel, this hub is well-suited for abrasive, corrosive, and food-grade environments. Flanged splined hubs are vital for precise torque transmission across diverse applications. Specifically designed for a 38mm diameter splined shaft with 8 splines, it ensures simple installation and reliable, long-term use. We also supply splined clamp collars with four pre-drilled holes to complement this hub. For additional information or to request a quote on our premium splined hub with flange for a 38mm shaft with 8 splines, please contact our customer service team, who will be pleased to assist you!

38mm With 8 Splines Hub With Flange Dimensions

• Made for Shaft Diameter: 38mm
• Profile Description: KN32x38
• Material: Stainless
• Part #: 64899508
• Dimension (A): 82mm
• Dimension (B): 65mm
• Dimension (B1): 9.0mm
• Dimension (C): 50mm
• Dimension (F): 50mm
• Dimension (d): 32mm
• Dimension (E): 12mm
• Dimension (h): 3.5mm
• Dimension (L): 60mm
• Weight:0.72 KG
