General Duty Plus #200-2 Cottered Roller Chain - 10ft Box
#200-2 Double Strand Cottered Roller Chain

Alternative Views:
Our Price: $2,969.99


Availability: Usually Ships Within 24 Hours
Product Code: GDP-200-2-COT-10FT
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

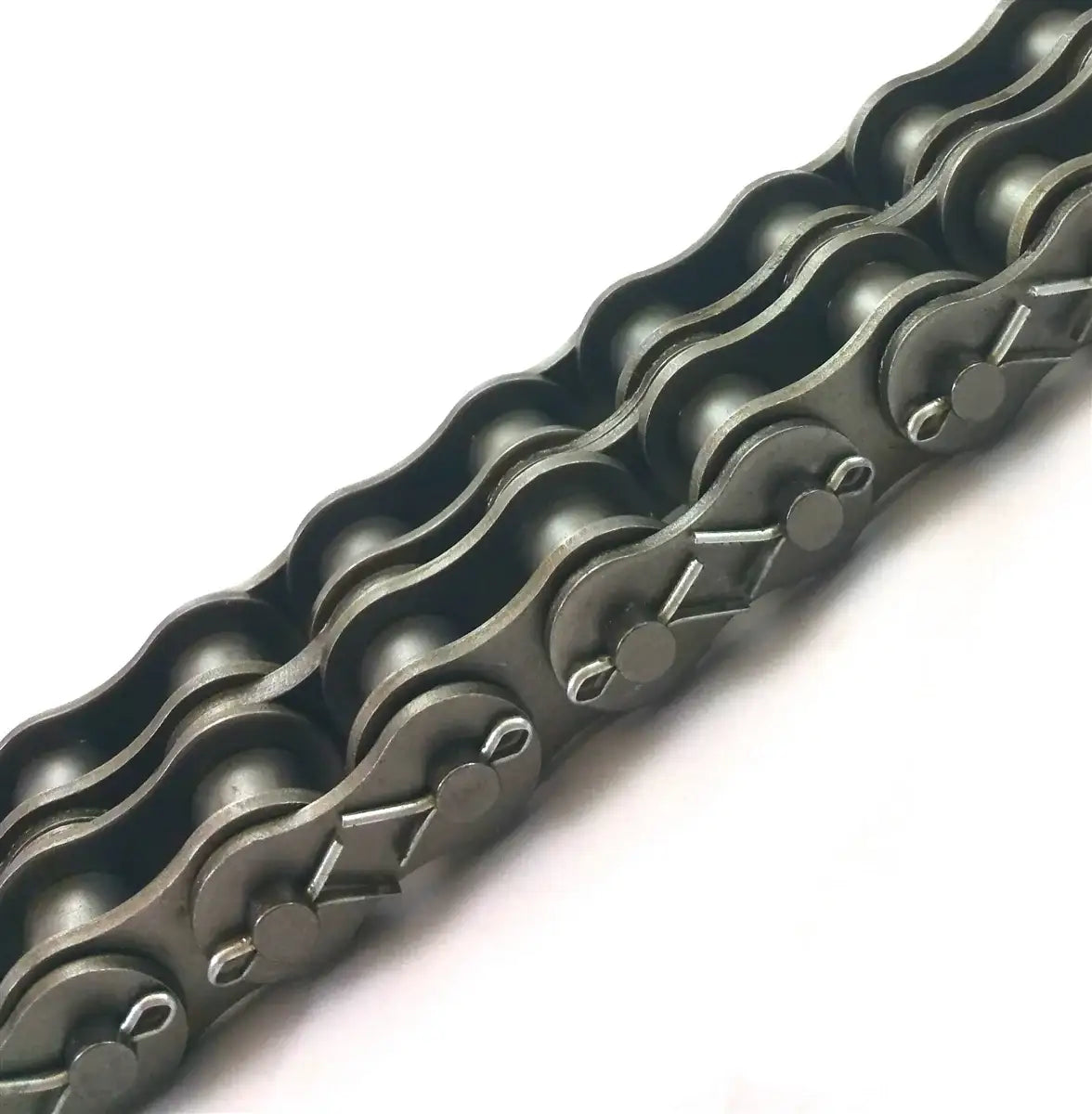

General Duty Plus #200-2 Double Strand Cottered Roller Chain

This #200-2 double strand cottered roller chain offers high strength, a long working life, and durability. Cottered style roller chain uses cotter pins instead of rivets; the benefit of this is that the chain is easier to take apart because there is not the hassle of cutting the rivet pins. General Duty Plus Series roller chains have shot peened and heat-treated components that drastically increase the chains strength, working life, and overall performance. This #200-2 double strand cottered roller chain has a tensile strength of 200,000lbs and is commonly supplied as 10ft boxes including one connecting link per box. But we also offer #200-2 double strand cottered roller chain at alternate lengths per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #200-2 Double Strand Cottered Roller chain or any of its accessories, please contact us and we will be happy to assist you.

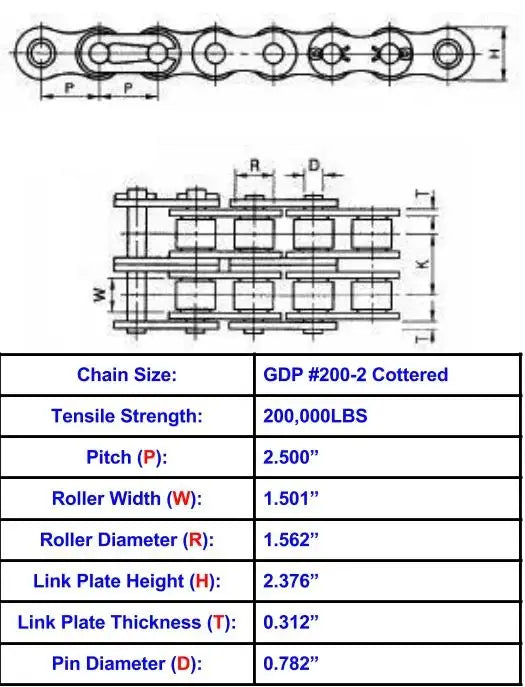

Dimensions:

  • Chain Size: #200-2 Cottered
  • Tensile Strength: 200,000lbs
  • Pitch (P): 2.500"
  • Roller Width (W): 1.501"
  • Roller Diameter (R): 1.562"
  • Link Plate Height (H): 2.376"
  • Link Plate Thickness (T): 0.312"
  • Pin Diameter (D): 0.782"
  • Specifications Met: ANSI Standards

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • High Quality And Durable
    • Double Strand Roller Chain
    • Tensile Strength: 200,000lbs
    • Cottered Style Construction
    • Constructed of Hardened Steel For Increased Strength & Performance
    • Shot Peened For Increased Fatigue & Durability
    • Pre-stretched For Higher Ware Resistance
    • Solid Rollers For Better Performance & Overall Operation
    • Fully Meets & Exceeds All ANSI Standards
