General Duty Plus #200-2 Cottered Roller Chain - 10ft Box

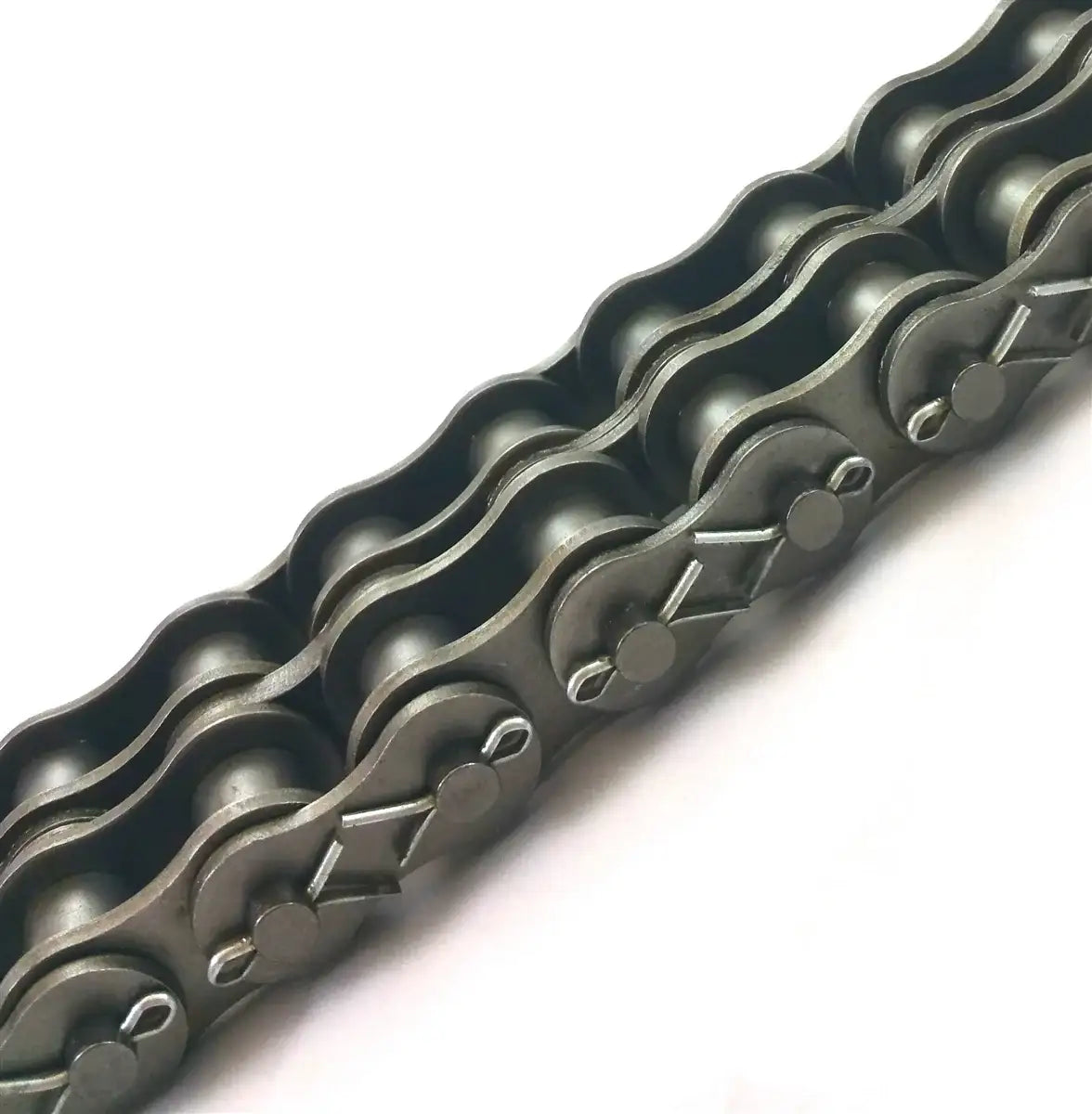

This #200-2 double strand cottered roller chain offers high strength, a long working life, and durability. Cottered style roller chain uses cotter pins instead of rivets; the benefit of this is that the chain is easier to take apart because there is not the hassle of cutting the rivet pins. General Duty Plus Series roller chains have shot peened and heat-treated components that drastically increase the chains strength, working life, and overall performance. This #200-2 double strand cottered roller chain has a tensile strength of 200,000lbs and is commonly supplied as 10ft boxes including one connecting link per box. But we also offer #200-2 double strand cottered roller chain at alternate lengths per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #200-2 Double Strand Cottered Roller chain or any of its accessories, please contact us and we will be happy to assist you.

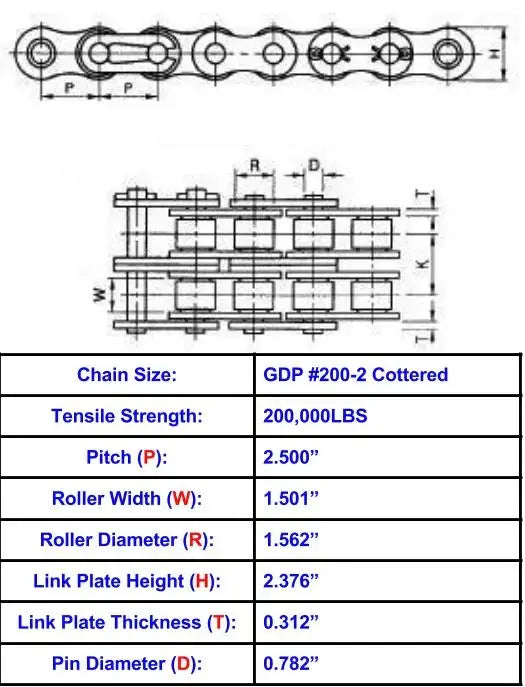

#200-2 Cottered Roller Chain Dimensions

• Chain Size: #200-2 Cottered
• Tensile Strength: 200,000lbs
• Pitch (P): 2.500"
• Roller Width (W): 1.501"
• Roller Diameter (R): 1.562"
• Link Plate Height (H): 2.376"
• Link Plate Thickness (T): 0.312"
• Pin Diameter (D): 0.782"
• Specifications Met: ANSI Standards
