General Duty Plus #140-2 Double Roller Chain - 10ft Box

General Duty Plus #140-2 Double Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$839.99
$839.99
In Stock
On Sale Sold out
Product Code: GDP-140-2-10FT
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
Spray On Chain Lube - 11oz Can
Spray On Chain Lube - 11oz Can
$54.99
Login
General Duty Plus #140-2 Roller Chain Connecting (Master) Link
General Duty Plus #140-2 Roller Chain Connecting (Master) Link
$39.99
Login
General Duty Plus #140-2 Offset Link
General Duty Plus #140-2 Offset Link
$64.99
Login
View full details
Description
Specification

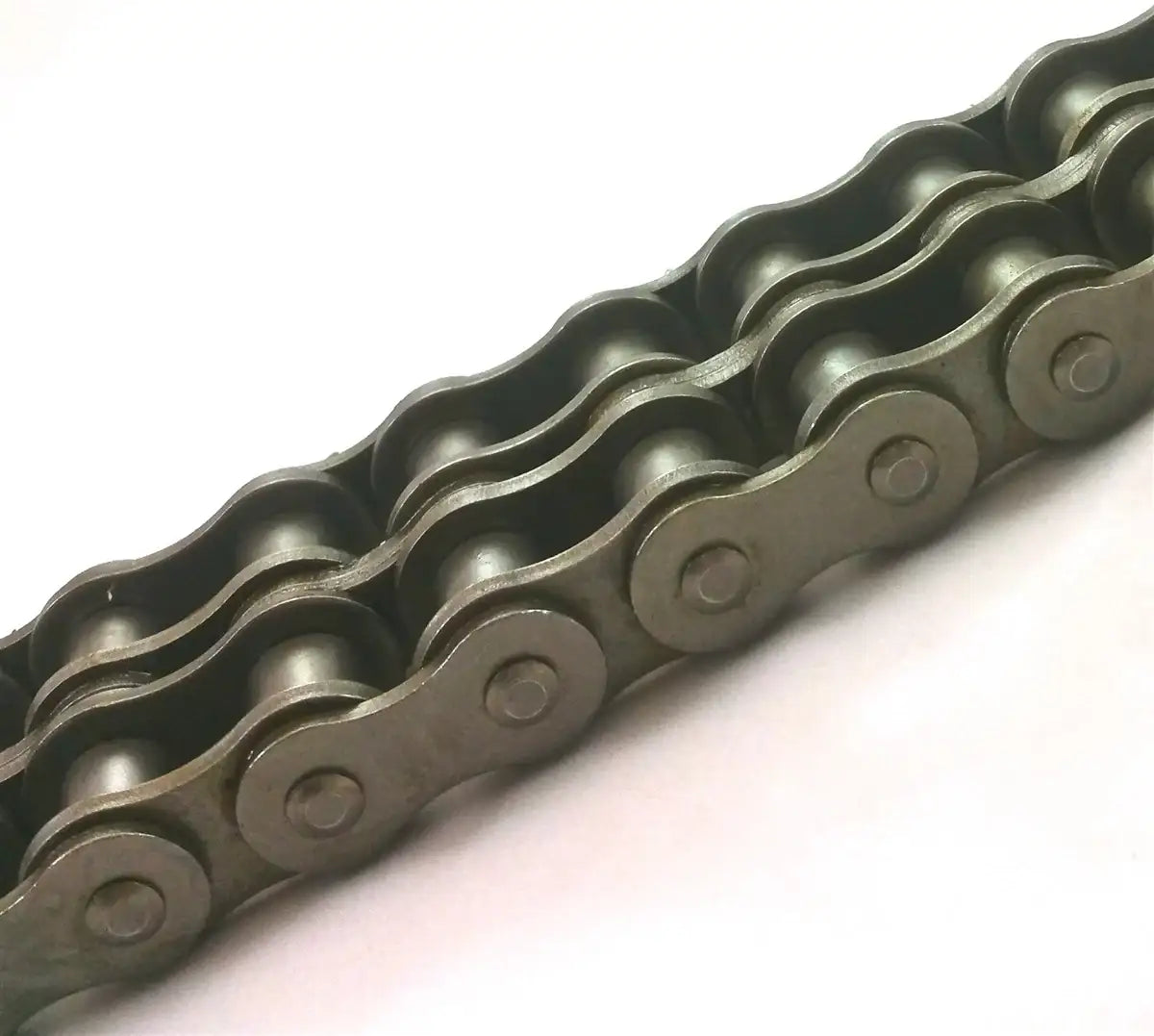

General Duty Plus #140-2 Double Strand Roller Chain

This #140-2 double strand roller chain offers high strength, a long working life, and durability. General Duty Plus Series roller chains have shot peened and heat-treated components that drastically increase the chains strength, working life, and overall performance. This #140-2 double strand roller chain has a tensile strength of 94,000lbs and is commonly supplied as 10ft boxes including one connecting link per box. But we also offer #140-2 double strand roller chain at alternate lengths per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #140-2 Double Strand Roller chain or any of its accessories, please contact us and we will be happy to assist you.

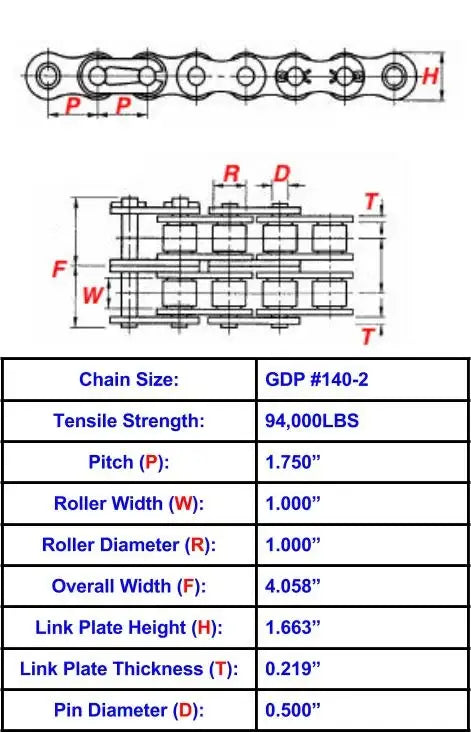

Dimensions:

  • Chain Size: #140-2
  • Tensile Strength: 94,000lbs
  • Pitch (P): 1.750"
  • Roller Width (W): 1.000"
  • Roller Diameter (R): 1.000"
  • Overall Chain Width (F): 4.058"
  • Link Plate Height (H): 1.663"
  • Link Plate Thickness (T): 0.219"
  • Pin Diameter (D): 0.500"
  • Specifications Met: ANSI Standards

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality And Durable
  • Double Strand Roller Chain
  • Tensile Strength: 94,000lbs
  • Constructed of Hardened Steel For Increased Strength & Performance
  • Shot Peened For Increased Fatigue & Durability
  • Pre-stretched For Higher Ware Resistance
  • Solid Rollers For Better Performance & Overall Operation
  • Fully Meets & Exceeds All ANSI Standards
Featured image
  • Chain Size: #140-2
  • Tensile Strength: 94,000lbs
  • Pitch (P): 1.750"
  • Roller Width (W): 1.000"
  • Roller Diameter (R): 1.000"
  • Overall Chain Width (F): 4.058"
  • Link Plate Height (H): 1.663"
  • Link Plate Thickness (T): 0.219"
  • Pin Diameter (D): 0.500"
  • Specifications Met: ANSI Standards
