Roller Chain > Roller Chain by Size > #140 Roller Chain

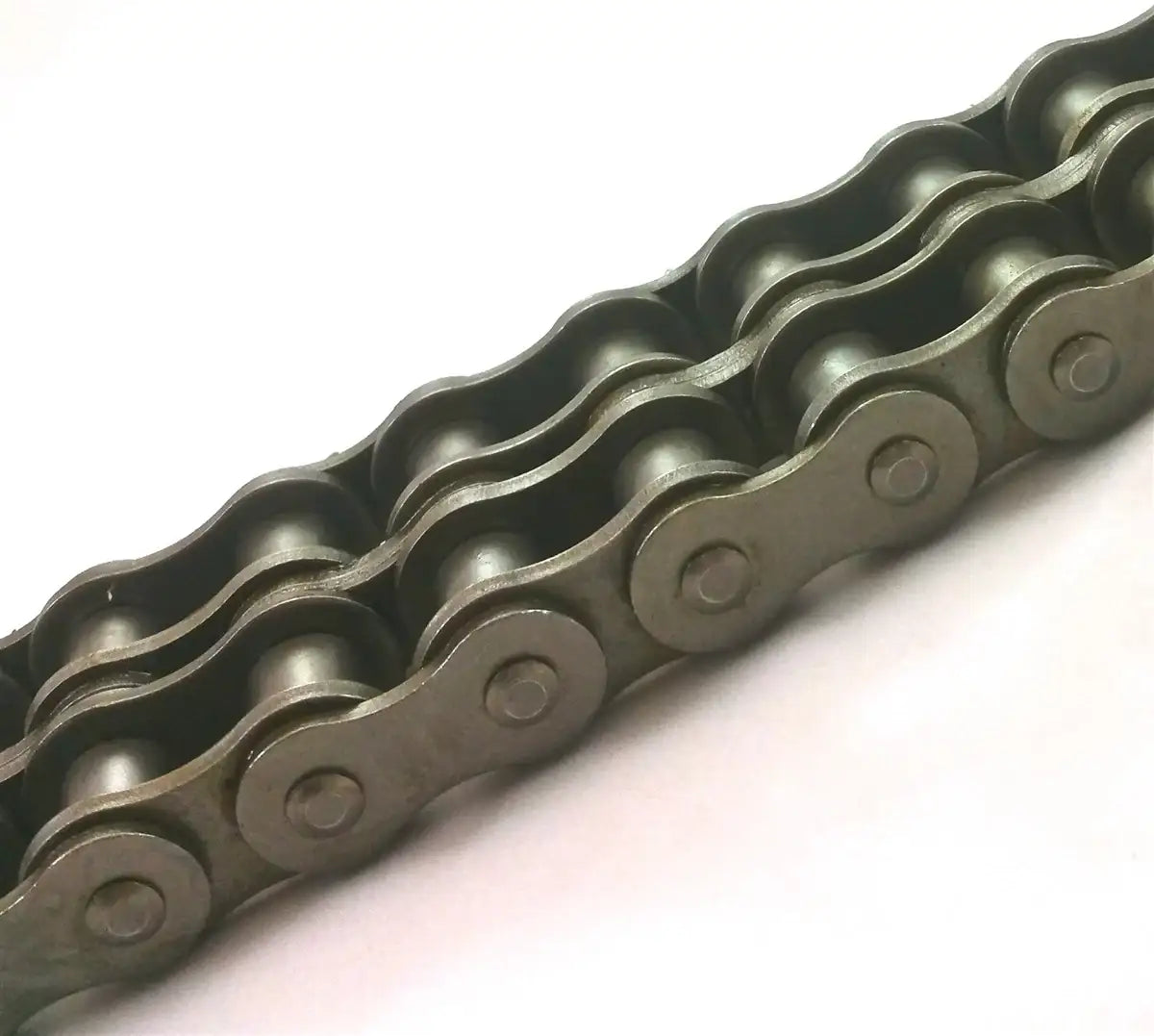

General Duty Plus #140-2 Double Roller Chain - 10ft Box
Login to Request a Quote
This #140-2 double strand roller chain offers high strength, a long working life, and durability. General Duty Plus Series roller chains have shot peened and heat-treated components that drastically increase the chains strength, working life, and overall performance. This #140-2 double strand roller chain has a tensile strength of 94,000lbs and is commonly supplied as 10ft boxes including one connecting link per box. But we also offer #140-2 double strand roller chain at alternate lengths per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #140-2 Double Strand Roller chain or any of its accessories, please contact us and we will be happy to assist you.

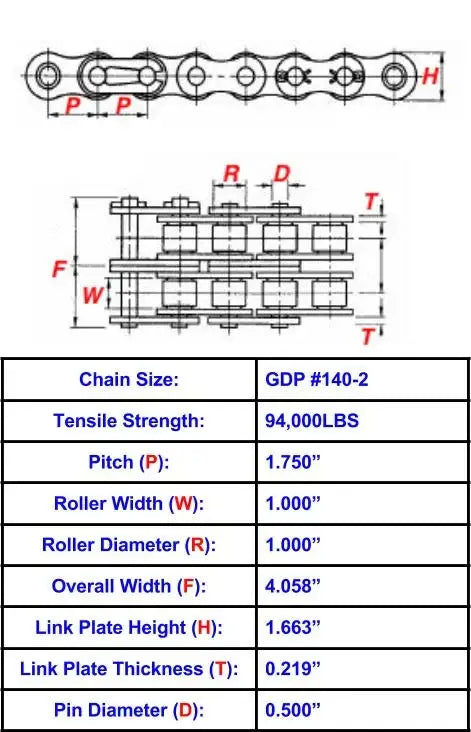

#140-2 Double Roller Chain Dimensions
Chain Size: #140-2 Tensile Strength: 94,000lbs Pitch (P): 1.750" Roller Width (W): 1.000" Roller Diameter (R): 1.000" Overall Chain Width (F): 4.058" Link Plate Height (H): 1.663" Link Plate Thickness (T): 0.219" Pin Diameter (D): 0.500" Specifications Met: ANSI Standards
Chain Size: #140-2 Tensile Strength: 94,000lbs Pitch (P): 1.750" Roller Width (W): 1.000" Roller Diameter (R): 1.000" Overall Chain Width (F): 4.058" Link Plate Height (H): 1.663" Link Plate Thickness (T): 0.219" Pin Diameter (D): 0.500" Specifications Met: ANSI Standards
