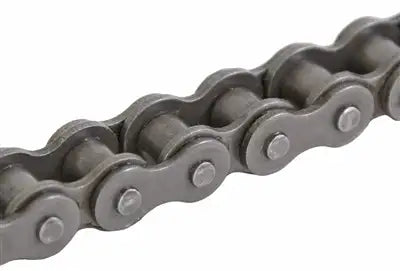

RE525 Chain (Metric Roller Chain)

RE525 Chain (Metric Roller Chain)

Note: Custom Cut to Length Chain Also Available
Product Code: RE525-CHIAN
Shipping calculated at checkout.
View full details
Description
Specification
RE525 chain is a metric roller chain that is primarily used in heavy-duty drive and lifting applications that require a high load roller chain. Due to the high quality and precision construction of the chain it offers a long service life and robust, economical operation. RE525 chain uses a high quality lubrication that makes the chain preform better and have less friction, in turn this reduces energy consumption and increases the wear life of the chain. Besides the chain, we also have a full line of RE525 sprockets as well as other PT and industrial components. For more information or to get a formal quote please contact us and we will be happy to assist you.

Dimensions:
RE525 Chain (Metric Roller Chain)
  • Chain Size: RE525
  • Pitch: 25.4 mm
  • Width Between Inner Plates (b1): 12.70 mm
  • Roller diameter (d1): 12.70 mm
  • Pin Diameter (d2): 7.00 mm
  • Overall Inner Link Width (b2): 19.07 mm
  • Plate Height (g): 20.8 mm
  • Pin Length (a1): 27.4 mm
  • Locking Pin Length (a3): 32.5 mm
  • Average Tensile Strength: 45,000 N
  • Chain Weight: 1.6 kg/m

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Chain
  • Supplied With One Connecting Link Per Box
  • Extremely High-Strength and Durable
Featured image
  • Chain Size: RE525
  • Pitch: 25.4 mm
  • Width Between Inner Plates (b1): 12.70 mm
  • Roller diameter (d1): 12.70 mm
  • Pin Diameter (d2): 7.00 mm
  • Overall Inner Link Width (b2): 19.07 mm
  • Plate Height (g): 20.8 mm
  • Pin Length (a1): 27.4 mm
  • Locking Pin Length (a3): 32.5 mm
  • Average Tensile Strength: 45,000 N
  • Chain Weight: 1.6 kg/m
