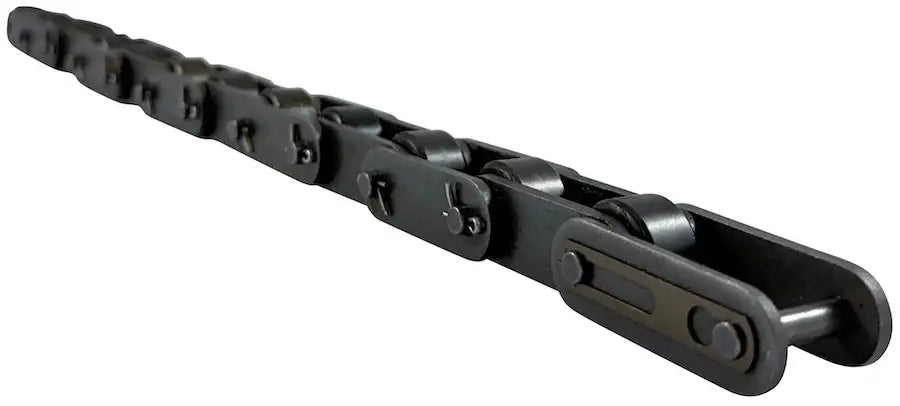

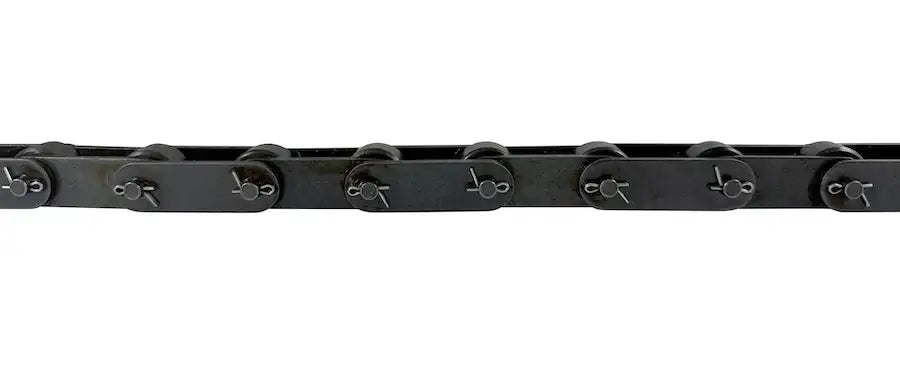

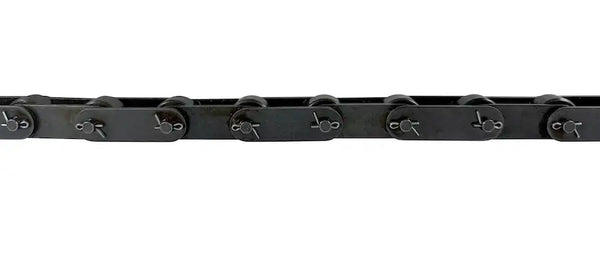

C2062H Cottered Roller Chain

C2062H cottered roller chain is manufactured using cotters instead of rivets. This creates a chain that is easier to disassemble than a standard riveted chain. Our C2062H cottered chain is manufactured in accordance with ANSI B29 Standards, meaning that it will directly interchange with other brands. This chain also uses heat-treated and shot peened components for an improved working life an durability, it also features solid rollers and is pre-stretched for a better long-term performance. Typically we supply C2060H cottered roller chain in 10ft boxes but alternate lengths are available upon request. We also supply double pitch sprockets and a full line of attachment options for this chain. For additional information or to get pricing please contact us.

C2062H Cottered Chain Dimensions

• Chain Size: C2062H
• Pitch (P): 1.500"
• Roller Width (W): 0.500"
• Roller Diameter (R): 0.875"
• Plate Height (H): 0.683"
• Plate Thickness (T): 0.125"
• Pin Diameter (D): 0.234"
• Weight: 1.46 LBS/ FT
