C2050-2 Roller Chain (Double Strand)

C2050-2 Roller Chain (Double Strand)

Note: Custom Cut to Length Chain Also Available
Product Code: C2050-2-CHAIN
Shipping calculated at checkout.
View full details
C2050-2 double strand double pitch roller chain is manufactured in accordance with ANSI Standards and is a conveyor style chain. Standard double pitch roller chain is a simplex chain but due to the increased demand of the chain, we are offering the duplex (double strand) version. What sets our chain above the standard is our solid roller design, heat-treated components, and top-quality carbon steel metallurgy. C2050-2 is dimensionally equal to a 50-2 chain with the exception of the pitch (C2050-2 = 1.250" vs 50-2= 0.625" pitch). We also supply sprockets and attachments for C2050-2 roller chain, to get pricing and availability simply contact us!

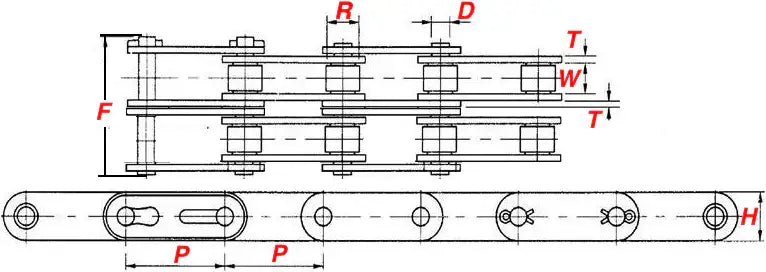

C2050-2 Roller Chain Dimensions


  • Pitch (P): 1.250"
  • Dimension (W): 0.375"
  • Dimension (R): 0.400"
  • Dimension (H): 0.593"
  • Dimension (T): 0.080"
  • Dimension (D): 0.200"
  • Dimension (F): 1.570"
  • Chain Weight: 1.12 LBS/ FT


Feature

  • High Strength Roller Chain
  • Manufactured to ANSI Standards
  • Heat-Treated
  • Shot-Peened
  • Available in Riveted or Cottered Construction
  • Solid Rollers
Featured image
  • Pitch (P): 1.250"
  • Dimension (W): 0.375"
  • Dimension (R): 0.400"
  • Dimension (H): 0.593"
  • Dimension (T): 0.080"
  • Dimension (D): 0.200"
  • Dimension (F): 1.570"
  • Chain Weight: 1.12 LBS/ FT
