BL2044 Leaf Chain

BL2044 Leaf Chain

Note: Custom Cut to Length Chain Also Available
Product Code: BL2044-CHAIN
Shipping calculated at checkout.
Other Customers Viewed

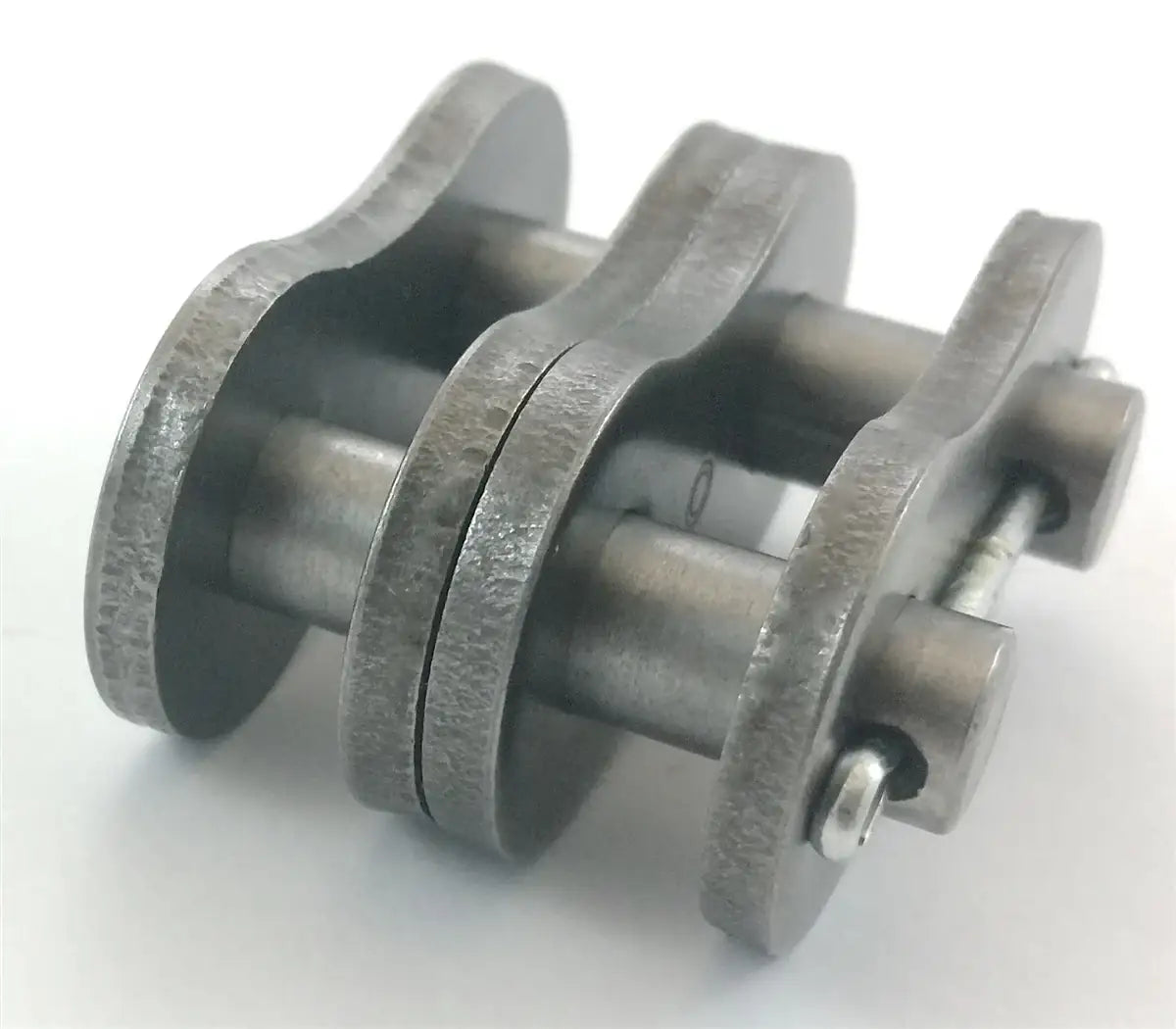

BL2044 Leaf Chain Connecting Link (Master Link)
BL2044 Leaf Chain Connecting Link (Master Link)
Login
View full details
Description
Specification

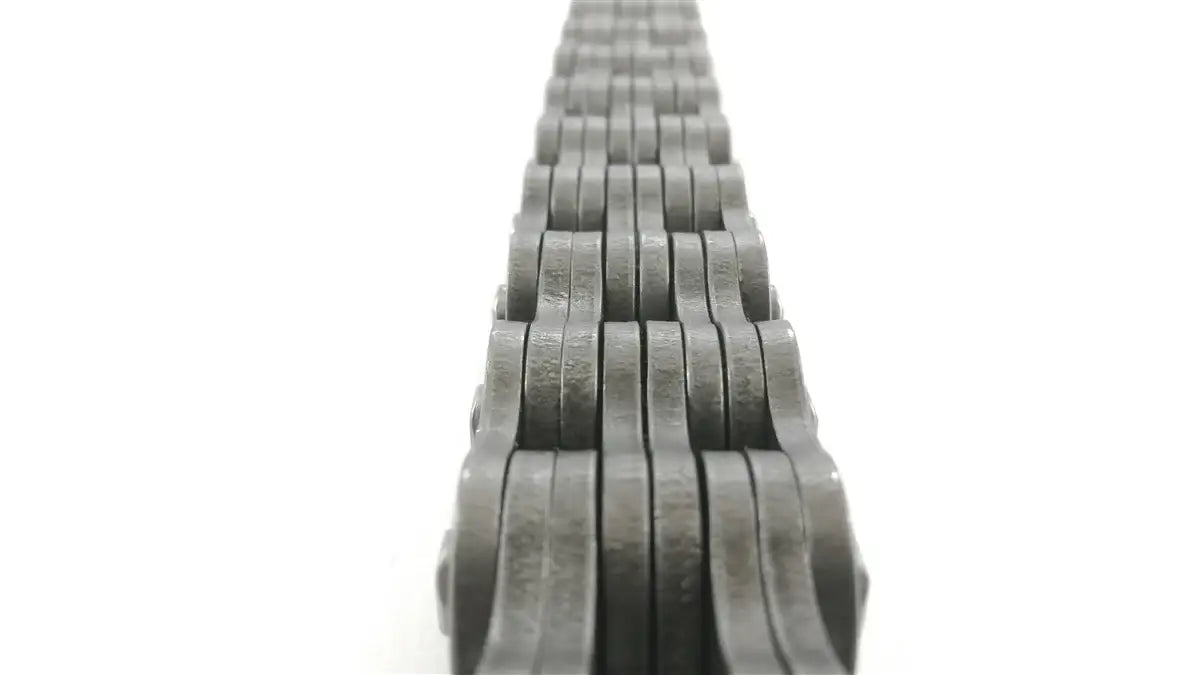

BL2044 Leaf Chain is manufactured to ANSI (American) standards and is a heavy-duty series of leaf chain. The most common applications for leaf chain is forklifts, material handling, and lifting applications that require a high strength and heavy duty chain. The standard BL2044 leaf chain that we offer is manufactured using high quality components (pins and plates) that have gone through special manufacturing processes to ensure strength and durability, more so than other leaf chains on the market. This chain has a 4X4 lacing and is supplied as 10ft boxes, reels (25ft - 100ft), and cut to length sections upon request.

Standard Series Specifications:
  • Chain Size: BL2044
  • Pitch (P): 2.500"
  • Pin Diameter (A): 0.938"
  • Plate thickness (B): 0.391"
  • Plate Height (C): 2.376"
  • Pin Length (D): 3.607"
  • Chain Weight: 21.24 LBS/ Ft
  • Tensile Strength: 204,000 LBS

BL2044 leaf chain usage may be limited compared to other BL series chains, but it can accommodate rigorous lifting, hoisting, and material handling applications. Its load capacity allows for deployment with port material handling equipment such as fork trucks, chassis flippers, top loaders, straddle carriers, side picks, top lifts, and log stackers.


USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get pricing and availability on BL2044 Leaf Chain please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!



Feature

  • Fully Meets ANSI Standards
  • Extremely Heavy-Duty
  • Heat-Treated Components
  • High Strength
  • 4X4 Lacing
Featured image
  • Chain Size: BL2044
  • Pitch (P): 2.500"
  • Pin Diameter (A): 0.938"
  • Plate thickness (B): 0.391"
  • Plate Height (C): 2.376"
  • Pin Length (D): 3.607"
  • Chain Weight: 21.24 LBS/ Ft
  • Tensile Strength: 204,000 LBS
