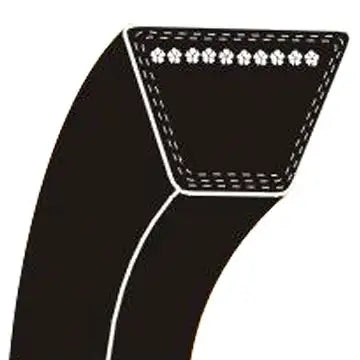

A80 V-Belt - A-Section 82" A80 Belt (4L820 Belt)
A80 V-Belt - A-Section 82" A80 Belt (4L820 Belt)
Note:
Custom Cut to Length Chain Also Available
Product Code: A80-V-BELT
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
For those specialty needs, rely on USA Roller Chain for in-stock purchases of the 4L820 belt. These extra-long belts are mainly used for lawn mower applications. Save time by adding several of these parts to your virtual shopping cart. The high-quality materials found in each 82-inch lawn mower belt will thrill both users and manufacturers alike. All of our belts come with 40-degree angle bases, cotton-poly blend covers and high-strength polyester cords. After activating your lawn mower, the A80 drive belt kicks into gear with reliable strength and agility for any upcoming project.
You don't have to compromise on quality to stay within budget. Each 82-inch V-belt meets ARPM standards. USA Roller Chain wants you to return again and again for each A80 V-belt purchase. Create a bulk order, or purchase items on the fly. You have many options on our user-friendly website when productivity and reliability are priorities.
A80 V-Belt Construction:
- Cover - High-quality cotton/ polyester blend
- Compound - Natural rubber/ styrene-butadiene rubber (SBR)
- Cord - High-strength polyester
A80 V-Belt Dimensions
- Belt Size: A80
- Top Width: 0.66"
- Thickness: 0.41"
- Angel: 40 Degrees
- Outside Length: 82"
- Weight: 0.40 LBS
- Interchanges: A-80, 4L820
A80 V-Belt Pulleys
Our A-section v-belt pulleys are made to ARPM standards, are extreme performance parts, and boast premium features at budget-friendly prices. The charts below show the standard pulley sizes, for additional or custom options, please contact us and we will be happy to assist you.AK V-Belt Pulleys:
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Pulley Weight |
|---|---|---|---|---|---|---|---|---|---|
| AK17 | 1.75" | 1.50" | 1.16" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.2 LBS |
| AK20 | 2.00" | 1.80" | 1.46" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.3 LBS |
| AK21 | 2.10" | 1.90" | 1.56" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.4 LBS |
| AK22 | 2.20" | 2.00" | 1.66" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK23 | 2.30" | 2.10" | 1.76" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK25 | 2.50" | 2.30" | 1.96" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK26 | 2.60" | 2.40" | 2.06" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK27 | 2.70" | 2.50" | 2.16" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.6 LBS |
| AK28 | 2.80" | 2.60" | 2.26" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK30 | 3.05" | 2.80" | 2.46" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK32 | 3.25" | 3.00" | 2.66" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK34 | 3.45" | 3.20" | 2.86" | 2 | 21/32" | 15/16" | 7/16" | 5/32" |
0.9 LBS |
| AK39 | 3.75" | 3.50" | 3.16" | 2 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.4 LBS |
| AK41 | 3.95" | 3.70" | 3.36" | 2 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK44 | 4.25" | 4.00" | 3.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK46 | 4.45" | 4.20" | 3.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK49 | 4.75" | 4.50" | 4.16" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.7 LBS |
| AK51 | 4.95" | 4.70" | 4.36" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.7 LBS |
| AK54 | 5.25" | 5.00" | 4.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.8 LBS |
| AK56 | 5.45" | 5.20" | 4.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.9 LBS |
| AK59 | 5.75" | 5.50" | 5.16" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.0 LBS |
| AK61 | 5.95" | 5.70" | 5.36" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.1 LBS |
| AK64 | 6.25" | 6.00" | 5.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.2 LBS |
| AK66 | 6.45" | 6.20" | 5.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.3 LBS |
| AK69 | 6.75" | 6.50" | 6.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.5 LBS |
| AK71 | 6.95" | 6.70" | 6.36" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.8 LBS |
| AK74 | 7.25" | 7.00" | 6.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.4 LBS |
| AK79 | 7.75" | 7.50" | 7.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.0 LBS |
| AK84 | 8.25" | 8.00" | 7.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.8 LBS |
| AK89 | 8.75" | 8.50" | 8.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.3 LBS |
| AK94 | 9.25" | 9.00" | 8.68" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.5 LBS |
| AK99 | 9.75" | 9.50" | 9.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.3 LBS |
| AK104 | 10.25" | 10.00" | 9.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.1 LBS |
| AK109 | 10.75" | 10.50" | 10.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.8 LBS |
| AK114 | 11.25" | 11.00" | 10.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.6 LBS |
| AK124 | 12.25" | 12.00" | 11.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 6.5 LBS |
| AK134 | 13.25" | 13.00" | 12.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 7.5 LBS |
| AK144 | 14.25" | 14.00" | 13.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 8.5 LBS |
| AK154 | 15.25" | 15.00" | 14.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 9.8 LBS |
| AK184 | 18.25" | 18.00" | 17.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- |
12.1 LBS |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Pulley Weight |
|---|---|---|---|---|---|---|---|---|---|
| 2AK20 | 2.00" | 1.80" | 1.46" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.8 LBS |
| 2AK21 | 2.15" | 1.90" | 1.56" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.9 LBS |
| 2AK22 | 2.25" | 2.00" | 1.66" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.9 LBS |
| 2AK23 | 2.35" | 2.10" | 1.76" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.1 LBS |
| 2AK25 | 2.55" | 2.30" | 1.96" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.3 LBS |
| 2AK26 | 2.65" | 2.40" | 2.06" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.4 LBS |
| 2AK27 | 2.75" | 2.50" | 2.16" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.5 LBS |
| 2AK28 | 2.85" | 2.60" | 2.26" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.8 LBS |
| 2AK30 | 3.05" | 2.80" | 2.46" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.8 LBS |
| 2AK32 | 3.25" | 3.00" | 2.66" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 2.1 LBS |
| 2AK34 | 3.45" | 3.20" | 2.86" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 2.3 LBS |
| 2AK39 | 3.75" | 3.50" | 3.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 2.6 LBS |
| 2AK41 | 3.95" | 3.70" | 3.36" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 2.9 LBS |
| 2AK44 | 4.25" | 4.00" | 3.66" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.0 LBS |
| 2AK46 | 4.45" | 4.20" | 3.86" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.1 LBS |
| 2AK49 | 4.75" | 4.50" | 4.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.6 LBS |
| 2AK51 | 4.95" | 4.70" | 4.36" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.8 LBS |
| 2AK54 | 5.25" | 5.00" | 4.66" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.3 LBS |
| 2AK56 | 5.45" | 5.20" | 4.86" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.4 LBS |
| 2AK59 | 5.75 " | 5.50" | 5.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.5 LBS |
| 2AK61 | 5.95" | 5.70" | 5.36" | 3 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.6 LBS |
| 2AK64 | 6.25" | 6.00" | 5.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 4.8 LBS |
| 2AK74 | 7.25" | 7.00" | 6.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 5.6 LBS |
| 2AK84 | 8.25" | 8.00" | 7.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 6.4 LBS |
| 2AK94 | 9.25" | 9.00" | 8.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 7.3 LBS |
| 2AK104 | 10.25" | 10.00" | 9.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 8.1 LBS |
| 2AK114 | 11.25" | 11.00" | 10.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 9.0 LBS |
| 2AK124 | 12.25" | 12.00" | 11.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 9.8 LBS |
| 2AK134 | 13.25" | 13.00" | 12.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 12.3 LBS |
| 2AK144 | 14.25" | 14.00" | 13.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 13.9 LBS |
| 2AK154 | 15.25" | 15.00" | 14.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 14.3 LBS |
| 2AK184 | 18.25" | 18.00" | 17.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" |
17.4 LBS |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (O.L.) | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Dimension (X) | Dimension (G) | Dimension (E) | Pulley Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AK30H | 3.05" | 2.80" | 2.46" | 1 | 1-13/16" | 3/4" | 1-1/4" | 7/8" | -- | 1-3/16" | 7/16" | 3/16" | 0.2 |
| AK32H | 3.25" | 3.00" | 2.66" | 1 | 1-13/16" | 3/4" | 1-1/4" | 7/8" | -- | 1-3/16" | 7/16" | 3/16" | 0.3 |
| AK34H | 3.45" | 3.20" | 2.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.4 |
| AK39H | 3.75" | 3.50" | 3.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK41H | 3.95" | 3.70" | 3.36" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK44H | 4.25" | 4.00" | 3.66" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK46H | 4.45" | 4.20" | 3.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK49H | 4.75" | 4.50" | 4.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.6 |
| AK51H | 4.95" | 4.70" | 4.36" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK54H | 5.25" | 5.00" | 4.66" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK56H | 5.45" | 5.20" | 4.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK59H | 5.75" | 5.50" | 5.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.9 |
| AK61H | 5.95" | 5.70" | 5.36" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.4 |
| AK64H | 6.25" | 6.00" | 5.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK66H | 6.45" | 6.20" | 5.86" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK69H | 6.75" | 6.50" | 6.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK71H | 6.95" | 6.70" | 6.36" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.7 |
| AK74H | 7.25" | 7.00" | 6.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.7 |
| AK79H | 7.75" | 7.50" | 7.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.8 |
| AK84H | 8.25" | 8.00" | 7.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.9 |
| AK89H | 8.75" | 8.50" | 8.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.0 |
| AK94H | 9.25" | 9.00" | 8.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.1 |
| AK99H | 9.75" | 9.50" | 9.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.2 |
| AK104H | 10.25" | 10.00" | 9.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.3 |
| AK109H | 10.75" | 10.50" | 10.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.5 |
| AK114H | 11.25" | 11.00" | 10.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.8 |
| AK124H | 12.25" | 12.00" | 11.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.4 |
| AK134H | 13.25" | 13.00" | 12.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 4.0 |
| AK144H | 14.25" | 14.00" | 13.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.8 |
| AK154H | 15.25" | 15.00" | 14.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 4.3 |
| AK184H | 18.25" | 18.00" | 17.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" |
4.5 |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (O.L.) | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Dimension (X) | Dimension (G) | Dimension (E) | Pulley Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2AK30H | 3.05" | 2.80" | 2.46" | 1 | 2-7/16" | 1-3/8" | 1-1/4" | 7/8" | 15/16" | 7/8" | 7/16" | 3/16" | 1.4 |
| 2AK32H | 3.25" | 3.00" | 2.66" | 1 | 2-7/16" | 1-3/8" | 1-1/4" | 7/8" | 15/16" | 7/8" | 7/16" | 3/16" | 1.7 |
| 2AK34H | 3.45" | 3.20" | 2.86" | 1 | 2" | 1-3/8" | 1-1/4" | 7/16" | 1/2" | 7/8" | 7/16" | 3/16" | 1.8 |
| 2AK39H | 3.75" | 3.50" | 3.16" | 1 | 2" | 1-3/8" | 1-1/4" | 7/16" | 1/2" | 7/8" | 7/16" | 3/16" | 1.8 |
| 2AK41H | 3.95" | 3.70" | 3.36" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 1.9 |
| 2AK44H | 4.25" | 4.00" | 3.66" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 2.4 |
| 2AK46H | 4.45" | 4.20" | 3.86" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 2.5 |
| 2AK49H | 4.75" | 4.50" | 4.16" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.1 |
| 2AK51H | 4.95" | 4.70" | 4.36" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.2 |
| 2AK54H | 5.25" | 5.00" | 4.66" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.4 |
| 2AK56H | 5.45" | 5.20" | 4.86" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.6 |
| 2AK59H | 5.75" | 5.50" | 5.16" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.4 |
| 2AK61H | 5.95" | 5.70" | 5.36" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.3 |
| 2AK64H | 6.25" | 6.00" | 5.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.9 |
| 2AK74H | 7.25" | 7.00" | 6.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 4.9 |
| 2AK84H | 8.25" | 8.00" | 7.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 5.8 |
| 2AK94H | 9.25" | 9.00" | 8.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 6.1 |
| 2AK104H | 10.25" | 10.00" | 9.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 7.7 |
| 2AK114H | 11.25" | 11.00" | 10.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 8.5 |
| 2AK124H | 12.25" | 12.00" | 11.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 9.5 |
| 2AK134H | 13.25" | 13.00" | 12.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 11.9 |
| 2AK144H | 14.25" | 14.00" | 13.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 11.9 |
| 2AK154H | 15.25" | 15.00" | 14.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 13.3 |
| 2AK184H | 18.25" | 18.00" | 17.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" |
16.8 |
Feature
- Premium V-Belt
- Conforms To ARPM Standard IP 20
- Extremely Durable
- Oil & Heat Resistant
- Belt Size: A80
- Top Width: 0.66"
- Thickness: 0.41"
- Angel: 40 Degrees
- Outside Length: 82"
- Weight: 0.40 LBS
- Interchanges: A-80, 4L820
