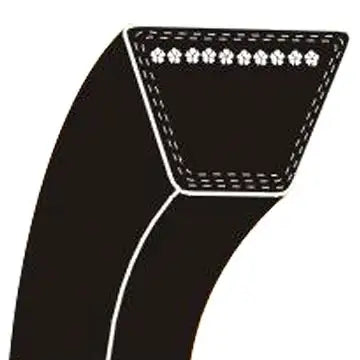

A33 V-Belt - A-Section 35" A33 Belt (4L350 Belt)
A33 V-Belt - A-Section 35" A33 Belt (4L350 Belt)
Note:
Custom Cut to Length Chain Also Available
Product Code: A33-V-BELT
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
Take pride in your production line with an A33 4L350 belt that's reasonably priced and made of the finest materials. Your belt drives rely on strength and durability for reliable operations. USA Roller Chain's 35-inch V-belt is constructed of a dual-rubber compound that includes both natural and styrene-butadiene materials. Hidden within the compound are high-strength polyester cords that can maintain stability on almost any assembly. If the environment is full of harsh conditions, our A33 belt is up to the task. Heat and natural oils seem to fade away from the belt as it drives your profits higher with each workday.
The secret to reliability lies in the belt's physical design. A 40-degree angle prevents slippage on every A33 V-belt. The cotton-poly blend cover can also make a difference in your system's success. Discover the 4L350 V-belt from USA Roller Chain today.
A33 V-Belt Construction:
- Cover - High-quality cotton/ polyester blend
- Compound - Natural rubber/ styrene-butadiene rubber (SBR)
- Cord - High-strength polyester
A33 V-Belt Dimensions
- Belt Size: A33
- Top Width: 0.66"
- Thickness: 0.41"
- Angel: 40 Degrees
- Outside Length: 35"
- Weight: 0.20 LBS
- Interchanges: A-33, 4L350
A33 V-Belt Pulleys
Our A-section v-belt pulleys are made to ARPM standards, are extreme performance parts, and boast premium features at budget-friendly prices. The charts below show the standard pulley sizes, for additional or custom options, please contact us and we will be happy to assist you.AK V-Belt Pulleys:
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Pulley Weight |
|---|---|---|---|---|---|---|---|---|---|
| AK17 | 1.75" | 1.50" | 1.16" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.2 LBS |
| AK20 | 2.00" | 1.80" | 1.46" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.3 LBS |
| AK21 | 2.10" | 1.90" | 1.56" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.4 LBS |
| AK22 | 2.20" | 2.00" | 1.66" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK23 | 2.30" | 2.10" | 1.76" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK25 | 2.50" | 2.30" | 1.96" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK26 | 2.60" | 2.40" | 2.06" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK27 | 2.70" | 2.50" | 2.16" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.6 LBS |
| AK28 | 2.80" | 2.60" | 2.26" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK30 | 3.05" | 2.80" | 2.46" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK32 | 3.25" | 3.00" | 2.66" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK34 | 3.45" | 3.20" | 2.86" | 2 | 21/32" | 15/16" | 7/16" | 5/32" |
0.9 LBS |
| AK39 | 3.75" | 3.50" | 3.16" | 2 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.4 LBS |
| AK41 | 3.95" | 3.70" | 3.36" | 2 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK44 | 4.25" | 4.00" | 3.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK46 | 4.45" | 4.20" | 3.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK49 | 4.75" | 4.50" | 4.16" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.7 LBS |
| AK51 | 4.95" | 4.70" | 4.36" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.7 LBS |
| AK54 | 5.25" | 5.00" | 4.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.8 LBS |
| AK56 | 5.45" | 5.20" | 4.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.9 LBS |
| AK59 | 5.75" | 5.50" | 5.16" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.0 LBS |
| AK61 | 5.95" | 5.70" | 5.36" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.1 LBS |
| AK64 | 6.25" | 6.00" | 5.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.2 LBS |
| AK66 | 6.45" | 6.20" | 5.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.3 LBS |
| AK69 | 6.75" | 6.50" | 6.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.5 LBS |
| AK71 | 6.95" | 6.70" | 6.36" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.8 LBS |
| AK74 | 7.25" | 7.00" | 6.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.4 LBS |
| AK79 | 7.75" | 7.50" | 7.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.0 LBS |
| AK84 | 8.25" | 8.00" | 7.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.8 LBS |
| AK89 | 8.75" | 8.50" | 8.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.3 LBS |
| AK94 | 9.25" | 9.00" | 8.68" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.5 LBS |
| AK99 | 9.75" | 9.50" | 9.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.3 LBS |
| AK104 | 10.25" | 10.00" | 9.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.1 LBS |
| AK109 | 10.75" | 10.50" | 10.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.8 LBS |
| AK114 | 11.25" | 11.00" | 10.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.6 LBS |
| AK124 | 12.25" | 12.00" | 11.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 6.5 LBS |
| AK134 | 13.25" | 13.00" | 12.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 7.5 LBS |
| AK144 | 14.25" | 14.00" | 13.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 8.5 LBS |
| AK154 | 15.25" | 15.00" | 14.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 9.8 LBS |
| AK184 | 18.25" | 18.00" | 17.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- |
12.1 LBS |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Pulley Weight |
|---|---|---|---|---|---|---|---|---|---|
| 2AK20 | 2.00" | 1.80" | 1.46" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.8 LBS |
| 2AK21 | 2.15" | 1.90" | 1.56" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.9 LBS |
| 2AK22 | 2.25" | 2.00" | 1.66" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.9 LBS |
| 2AK23 | 2.35" | 2.10" | 1.76" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.1 LBS |
| 2AK25 | 2.55" | 2.30" | 1.96" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.3 LBS |
| 2AK26 | 2.65" | 2.40" | 2.06" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.4 LBS |
| 2AK27 | 2.75" | 2.50" | 2.16" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.5 LBS |
| 2AK28 | 2.85" | 2.60" | 2.26" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.8 LBS |
| 2AK30 | 3.05" | 2.80" | 2.46" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.8 LBS |
| 2AK32 | 3.25" | 3.00" | 2.66" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 2.1 LBS |
| 2AK34 | 3.45" | 3.20" | 2.86" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 2.3 LBS |
| 2AK39 | 3.75" | 3.50" | 3.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 2.6 LBS |
| 2AK41 | 3.95" | 3.70" | 3.36" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 2.9 LBS |
| 2AK44 | 4.25" | 4.00" | 3.66" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.0 LBS |
| 2AK46 | 4.45" | 4.20" | 3.86" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.1 LBS |
| 2AK49 | 4.75" | 4.50" | 4.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.6 LBS |
| 2AK51 | 4.95" | 4.70" | 4.36" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.8 LBS |
| 2AK54 | 5.25" | 5.00" | 4.66" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.3 LBS |
| 2AK56 | 5.45" | 5.20" | 4.86" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.4 LBS |
| 2AK59 | 5.75 " | 5.50" | 5.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.5 LBS |
| 2AK61 | 5.95" | 5.70" | 5.36" | 3 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.6 LBS |
| 2AK64 | 6.25" | 6.00" | 5.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 4.8 LBS |
| 2AK74 | 7.25" | 7.00" | 6.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 5.6 LBS |
| 2AK84 | 8.25" | 8.00" | 7.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 6.4 LBS |
| 2AK94 | 9.25" | 9.00" | 8.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 7.3 LBS |
| 2AK104 | 10.25" | 10.00" | 9.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 8.1 LBS |
| 2AK114 | 11.25" | 11.00" | 10.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 9.0 LBS |
| 2AK124 | 12.25" | 12.00" | 11.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 9.8 LBS |
| 2AK134 | 13.25" | 13.00" | 12.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 12.3 LBS |
| 2AK144 | 14.25" | 14.00" | 13.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 13.9 LBS |
| 2AK154 | 15.25" | 15.00" | 14.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 14.3 LBS |
| 2AK184 | 18.25" | 18.00" | 17.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" |
17.4 LBS |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (O.L.) | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Dimension (X) | Dimension (G) | Dimension (E) | Pulley Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AK30H | 3.05" | 2.80" | 2.46" | 1 | 1-13/16" | 3/4" | 1-1/4" | 7/8" | -- | 1-3/16" | 7/16" | 3/16" | 0.2 |
| AK32H | 3.25" | 3.00" | 2.66" | 1 | 1-13/16" | 3/4" | 1-1/4" | 7/8" | -- | 1-3/16" | 7/16" | 3/16" | 0.3 |
| AK34H | 3.45" | 3.20" | 2.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.4 |
| AK39H | 3.75" | 3.50" | 3.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK41H | 3.95" | 3.70" | 3.36" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK44H | 4.25" | 4.00" | 3.66" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK46H | 4.45" | 4.20" | 3.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK49H | 4.75" | 4.50" | 4.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.6 |
| AK51H | 4.95" | 4.70" | 4.36" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK54H | 5.25" | 5.00" | 4.66" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK56H | 5.45" | 5.20" | 4.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK59H | 5.75" | 5.50" | 5.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.9 |
| AK61H | 5.95" | 5.70" | 5.36" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.4 |
| AK64H | 6.25" | 6.00" | 5.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK66H | 6.45" | 6.20" | 5.86" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK69H | 6.75" | 6.50" | 6.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK71H | 6.95" | 6.70" | 6.36" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.7 |
| AK74H | 7.25" | 7.00" | 6.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.7 |
| AK79H | 7.75" | 7.50" | 7.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.8 |
| AK84H | 8.25" | 8.00" | 7.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.9 |
| AK89H | 8.75" | 8.50" | 8.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.0 |
| AK94H | 9.25" | 9.00" | 8.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.1 |
| AK99H | 9.75" | 9.50" | 9.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.2 |
| AK104H | 10.25" | 10.00" | 9.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.3 |
| AK109H | 10.75" | 10.50" | 10.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.5 |
| AK114H | 11.25" | 11.00" | 10.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.8 |
| AK124H | 12.25" | 12.00" | 11.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.4 |
| AK134H | 13.25" | 13.00" | 12.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 4.0 |
| AK144H | 14.25" | 14.00" | 13.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.8 |
| AK154H | 15.25" | 15.00" | 14.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 4.3 |
| AK184H | 18.25" | 18.00" | 17.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" |
4.5 |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (O.L.) | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Dimension (X) | Dimension (G) | Dimension (E) | Pulley Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2AK30H | 3.05" | 2.80" | 2.46" | 1 | 2-7/16" | 1-3/8" | 1-1/4" | 7/8" | 15/16" | 7/8" | 7/16" | 3/16" | 1.4 |
| 2AK32H | 3.25" | 3.00" | 2.66" | 1 | 2-7/16" | 1-3/8" | 1-1/4" | 7/8" | 15/16" | 7/8" | 7/16" | 3/16" | 1.7 |
| 2AK34H | 3.45" | 3.20" | 2.86" | 1 | 2" | 1-3/8" | 1-1/4" | 7/16" | 1/2" | 7/8" | 7/16" | 3/16" | 1.8 |
| 2AK39H | 3.75" | 3.50" | 3.16" | 1 | 2" | 1-3/8" | 1-1/4" | 7/16" | 1/2" | 7/8" | 7/16" | 3/16" | 1.8 |
| 2AK41H | 3.95" | 3.70" | 3.36" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 1.9 |
| 2AK44H | 4.25" | 4.00" | 3.66" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 2.4 |
| 2AK46H | 4.45" | 4.20" | 3.86" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 2.5 |
| 2AK49H | 4.75" | 4.50" | 4.16" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.1 |
| 2AK51H | 4.95" | 4.70" | 4.36" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.2 |
| 2AK54H | 5.25" | 5.00" | 4.66" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.4 |
| 2AK56H | 5.45" | 5.20" | 4.86" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.6 |
| 2AK59H | 5.75" | 5.50" | 5.16" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.4 |
| 2AK61H | 5.95" | 5.70" | 5.36" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.3 |
| 2AK64H | 6.25" | 6.00" | 5.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.9 |
| 2AK74H | 7.25" | 7.00" | 6.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 4.9 |
| 2AK84H | 8.25" | 8.00" | 7.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 5.8 |
| 2AK94H | 9.25" | 9.00" | 8.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 6.1 |
| 2AK104H | 10.25" | 10.00" | 9.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 7.7 |
| 2AK114H | 11.25" | 11.00" | 10.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 8.5 |
| 2AK124H | 12.25" | 12.00" | 11.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 9.5 |
| 2AK134H | 13.25" | 13.00" | 12.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 11.9 |
| 2AK144H | 14.25" | 14.00" | 13.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 11.9 |
| 2AK154H | 15.25" | 15.00" | 14.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 13.3 |
| 2AK184H | 18.25" | 18.00" | 17.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 16.8 |
Feature
- Premium V-Belt
- Conforms To ARPM Standard IP 20
- Extremely Durable
- Oil & Heat Resistant
- Belt Size: A33
- Top Width: 0.66"
- Thickness: 0.41"
- Angel: 40 Degrees
- Outside Length: 35"
- Weight: 0.20 LBS
- Interchanges: A-33, 4L350
