106-030-01 Roll Ring Tensioner
106-030-01 Roll Ring Tensioner
Note:
Custom Cut to Length Chain Also Available
Product Code: RR375M-30
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

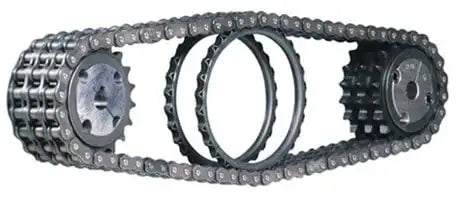

106-030-01 Roll Ring Tensioner is a high quality, maintenance free, and self adjusting chain tensioner. The chain tensioner installs in seconds and even works in reversing applications. The 106-030-01 size tensioner works with 06B chain, and features 30-teeth. It's manufactured out of a specially formulated polymer that has a resistance to ultra violet rays, radiation, temperatures, a wide range of chemicals, abrasion, and doesn't change chemically under vacuum conditions.
Dimensions:
Static and Dynamic Tension
With regard to the chain speed, all roll ring tensioners can be used up to the maximum chain speed specified by the manufacture specified for manual lubrication and for drip lubrication. The laterally open teeth on the toothed cog of the chain tensioner dampen the roll impact in the chain intake. For additional information or to get a quote please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Tensioner Size: RR375M-30 Chain Size: 06B Pitch: 0.375" Article #: 106-030-01 Teeth: 30 d0: 3.59" di: 2.87" S: 0.98" A: 4.80" D=d0-s: 2.60" Expansion Force: 3.34 LBS Maximum Chain Speed: 17.1 ft/sec
Static and Dynamic Tension
With regard to the chain speed, all roll ring tensioners can be used up to the maximum chain speed specified by the manufacture specified for manual lubrication and for drip lubrication. The laterally open teeth on the toothed cog of the chain tensioner dampen the roll impact in the chain intake. For additional information or to get a quote please contact us and we will be happy to assist you.
Email:
Feature
- Maintenance Free and Self Adjusting
- Extends Roller chain Life
- Dampens Noise
- Works With Reversing Drives
- Operating Tempitrues From -04°F to + 150°F
Tensioner Size: RR375M-30 Chain Size: 06B Pitch: 0.375" Article #: 106-030-01 Teeth: 30 d0: 3.59" di: 2.87" S: 0.98" A: 4.80" D=d0-s: 2.60" Expansion Force: 3.34 LBS Maximum Chain Speed: 17.1 ft/sec
