Metric 06B Roller Chain - 10ft Box
Login to Request a Quote

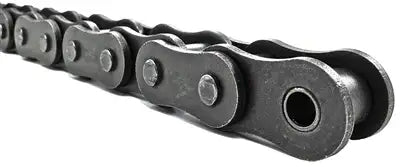

06B roller chain is a 9.525mm pitch ISO metric roller chain that conforms to British Standards (BS). Our high-quality 06B chain is manufactured from high-grade carbon and alloy steels for superior performance, strength, and lifespan. We also utilize specific manufacturing techniques for improved function and reduced elongation when creating our precision 06B chain. Something important to note is that this chain uses straight sidebars, much like a conveyor series roller chain, but maintains the same function as a drive-type roller chain. Dimensionally the same as other brands, our 06B chain demonstrates above-average features and benefits at an economical price point. For additional information or bulk quantities of the 06B roller chain, contact our customer support team, and we will gladly assist you!
06B Roller Chain Dimensions
|
Chain Size
|
Pitch (P)
|
Roller Width (W)
|
Roller Diameter (D)
|
Pin Diameter (E)
|
Plate Height (H)
|
C/L Width (A)
|
Breaking Load
|
Weight (Per Ft)
|
|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9.525mm | 5.72mm | 6.35mm | 3.28mm | 8.2mm | 14.1mm | 10.4 kN | 0.41 kg/m |
Specifications Met:
- International Organization for Standardization - ISO 606B
- BS 228 British Standard
- DIN 8187 German Standard
Superior performance, the highest standard of precision parts, and the longest working life, that's what our Premier Series 06B roller chain represents. With an ultra-high tensile strength of 2,354 LBS and through-hardened components, this is the best quality metric roller chain on the market. For more information click here!
| Chain Size | Pitch (P) | Roller Width (W) | Roller Diameter (D) | Pin Diameter (E) | Plate Height (H) | C/L Width (A) | Breaking Load | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9.525mm | 5.72mm | 6.35mm | 3.28mm | 8.2mm | 14.1mm | 10.4 kN | 0.41 kg/m |
