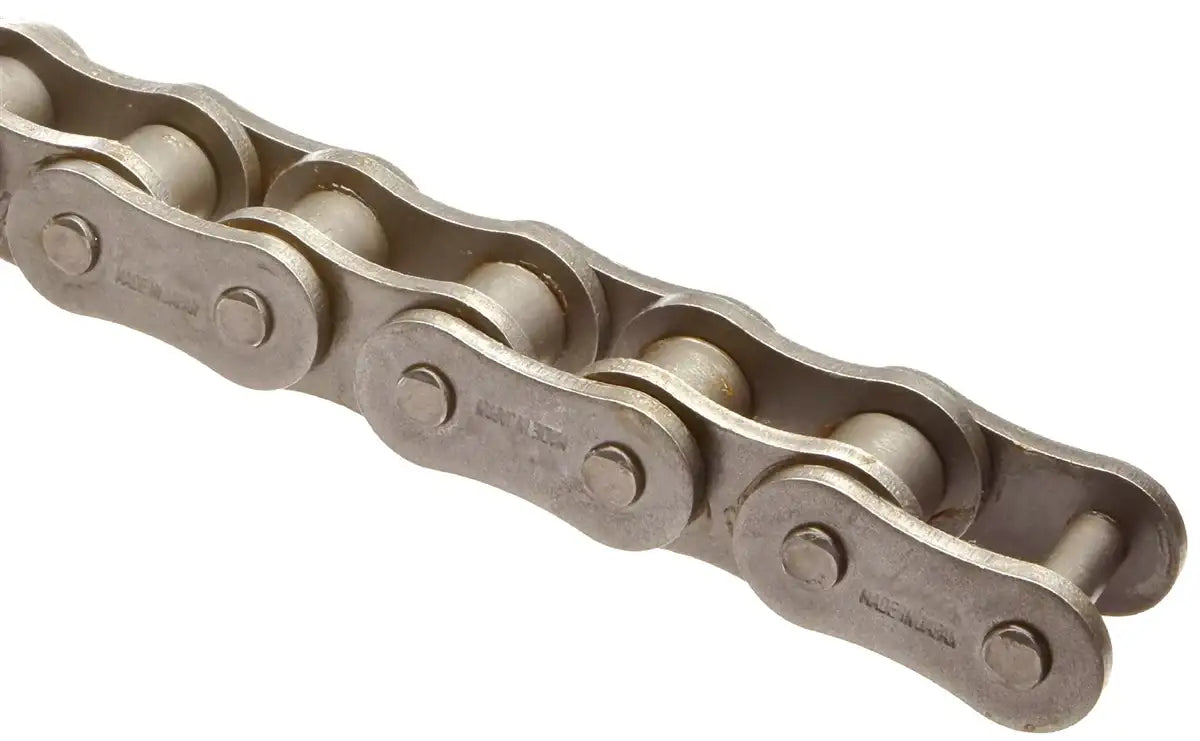

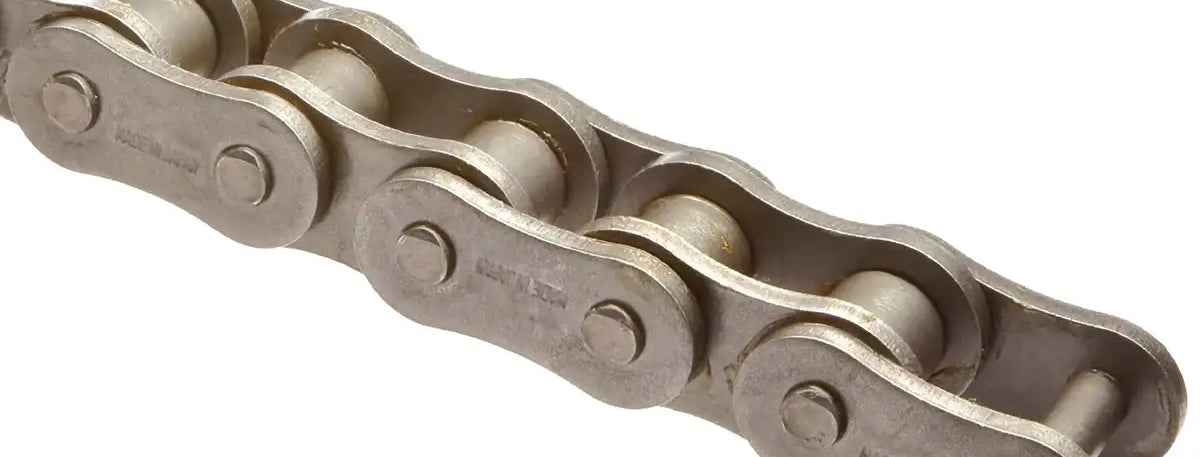

Premium 06B Roller Chain - 10ft Box
$77.99
SKU: P-06B-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Premium 06B Roller Chain - 10ft Box Description/Features
Premium 06B Roller Chain - 10ft Box Specifications
Premier Series 06B roller chain provides the best in class performance, working life, and strength. This 06B roller chain features fully heat-treated and shot peened components that are manufactured using a high quality carbon steel, along with solid bushings and solid rollers and high precision construction. Heat-treated and shot peened high quality carbon steel precision components make the chain much stronger and increases the overall shock load and durability. Adding solid rollers and solid bushings to the roller chain dramatically increases the performance and longevity of the chain due to its ability to operate with less friction and absolute minimal stretch. Additionally, we offer a full line of 06B sprockets and attachments.
Dimensions:
Dimensions:
- Part Number: 06B
- Tensile Strength: 2,354 LBS
- Pitch (P): 0.375"
- Transverse Pitch (K): 0.403"
- Roller Link Width (W): 0.225"
- Roller Diameter (R): 0.250"
- Pin Diameter (D): 0.129"
- Overall Width (F): 0.535"
- Plate Thickness (T1): 0.039"
- Plate Thickness (T2): 0.051"
- Plate Height (H): 0.323"
- Weight: 0.262 LBS/ FT
- Part Number: 06B
- Tensile Strength: 2,354 LBS
- Pitch (P): 0.375"
- Transverse Pitch (K): 0.403"
- Roller Link Width (W): 0.225"
- Roller Diameter (R): 0.250"
- Pin Diameter (D): 0.129"
- Overall Width (F): 0.535"
- Plate Thickness (T1): 0.039"
- Plate Thickness (T2): 0.051"
- Plate Height (H): 0.323"
- Weight: 0.262 LBS/ FT
