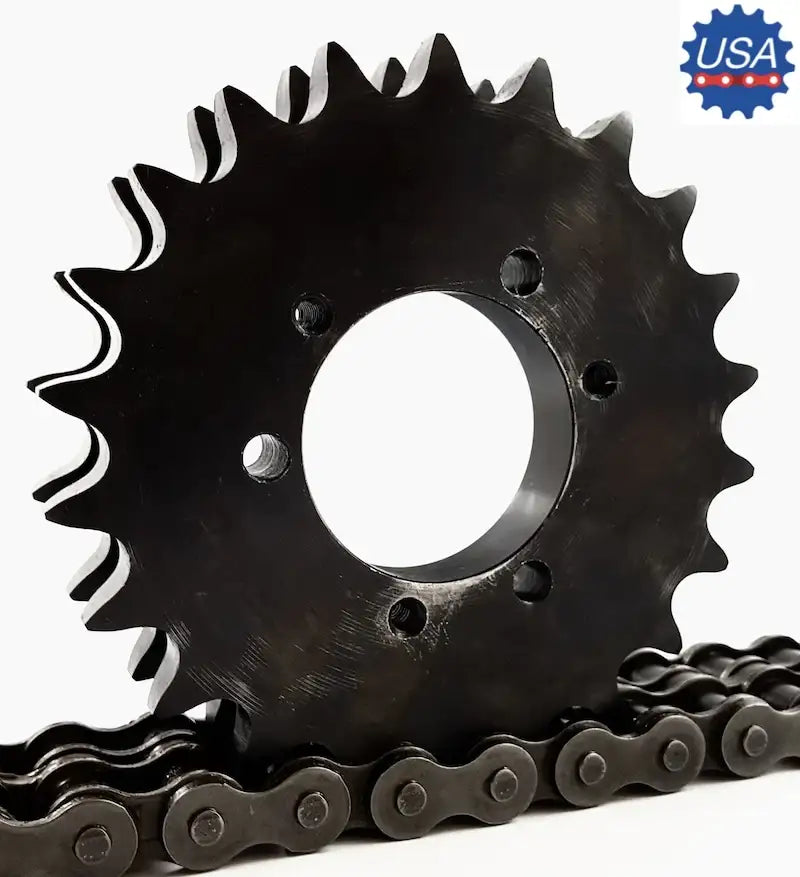

D60SDS22H Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$149.99
SKU: D60SDS22H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715075703151" , "metafield_value":""}]
D60SDS22H Sprocket (QD Type) Features
D60SDS22H Sprocket (QD Type) Specifications
This D60SDS22H sprocket is a high-quality, precision, and durable QD type sprocket that has 22 hardened teeth. D60SDS22H sprockets use an SDS Type QD Bushing and are a solid construction sprocket. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. Along with the D60SDS22H sprocket, we offer a full line of premium SDS Type QD bushings right off the shelf and at great pricing. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

Dimensions:
Sprocket Size: D60SDS22H
Tooth Count: 22
Bushing Size: SDS
Outside Diameter: 5.670"
Pitch Diameter: 5.270"
Sprocket Type: B
Dimension (L1): 1-17/32"
Dimension (L2): 1-15/32"
Dimension (C): 3-3/16"
Dimension (X): 3/4"
Dimension (T): 0.444"
Dimension (W): 1.341"
Sprocket Weight: 4.44 LBS
Bushing Weight: 1.00 LBS


Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: D60SDS22H
  • Tooth Count: 22
  • Bushing Size: SDS
  • Outside Diameter: 5.670"
  • Pitch Diameter: 5.270"
  • Sprocket Type: B
  • Dimension (L1): 1-17/32"
  • Dimension (L2): 1-15/32"
  • Dimension (C): 3-3/16"
  • Dimension (X): 3/4"
  • Dimension (T): 0.444"
  • Dimension (W): 1.341"
  • Sprocket Weight: 4.44 LBS
  • Bushing Weight: 1.00 LBS
