60-2 Roller Chain - 10ft Box

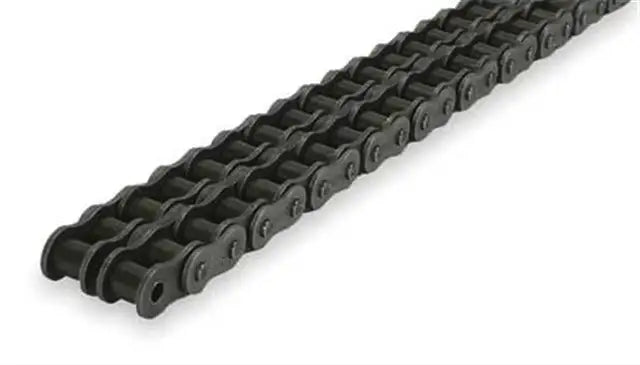

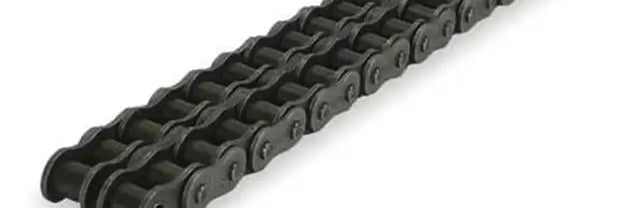

60-2 roller chain is a duplex roller chain with a 3/4" pitch. This chain is manufactured to ANSI B29.1 standards and directly interchanges with other manufactures. Our 60-2 chain is manufactured using heat-treated components for added strength, that are also shot peened for fatigue resistance, then the chain is pre-stretched at the factory so there is reduced long term elongation. We supply this chain as 10' boxes but also stock 50' and 100' reels for customers who need longer lengths of chain.

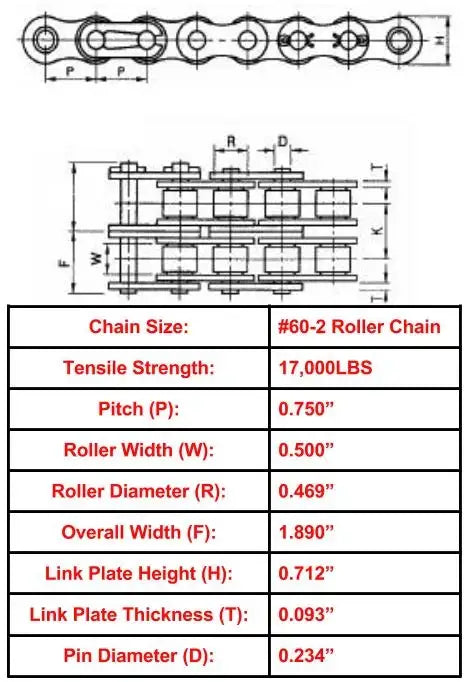

60-2 Roller Chain Dimensions

• Chain Size: #60-2 Riv
• Tensile Strength: 17,000lbs
• Pitch (P): 0.750"
• Roller Width (W): 0.500"
• Roller Diameter (R): 0.469"
• Overall Chain Width (F): 1.890"
• Link Plate Height (H): 0.712"
• Link Plate Thickness (T): 0.093"
• Pin Diameter (D): 0.234"
• Specifications Met: ANSI Standards

Roller Chain Sprockets

In addition to the 60-2 roller chain, we also have a full line of premium 60-2 Sprockets in stock. All of these sprockets meet or exceed ANSI standards and have hardened teeth under 30-teeth, these sprockets are also black oxide coated for corrosion resistance.

Chain Attachments

Duplex chain attachments can be difficult to source however, USA Roller Chain and Sprockets can supply 60-2 roller chain attachments right off the shelf. We can also supply a complete chain with the attachments already assembled onto it. To get a quote on 60-2 attachments or attachment roller chain you can give us a call or submit a request for quote form on our roller chain attachments section.

60-2 Chain Accessories

If you need to pull, break, or tension your 60-2 roller chain we can supply the tools and accessories necessary to do so. We also stock roller chain guides for double strand roller chains, as well as chain lube.
