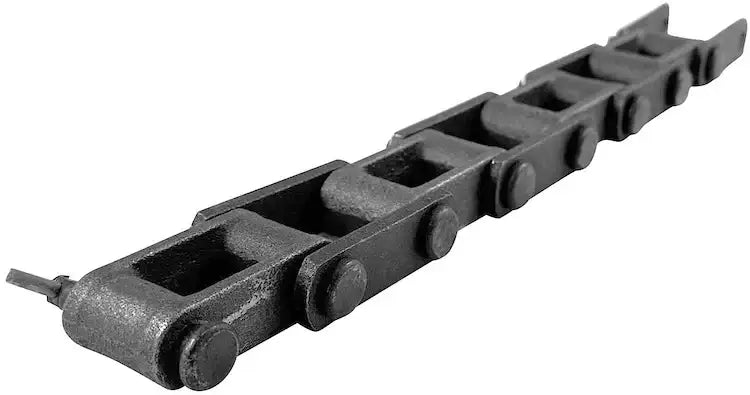

C55L Conveyor Chain

C55L Conveyor Chain

Note: Custom Cut to Length Chain Also Available
Product Code: C55L-CONVEYOR-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification
C55L conveyor chain is known as a cast combination chain. This C55L conveyor chain is a high quality, durable, and long lasting conveyor chain that is manufactured using high quality components. C55L chain is used in a wide range of applications including; bucket elevators, flight conveyors, forest products, grain handling, sugar processing, and more! C55L combination chain links are manufactured to be symmetrical which means that this chain can travel in either direction. This C55L conveyor chain has the capability of conveying both abrasive and non-abrasive materials which greatly broadens its range of applications that it can be used in. Typically this chain is supplied as cottered construction furnished with pin heads all on the same side, but riveted construction is available upon request. We also offer a full line of C55L attachments, sprockets, and other accessories. For pricing and availability please contact us and we will be happy to assist you.

Dimensions:

  • Chain Number: C55L
  • Pitch (P): 1.631"
  • Overall Width Cottered (C): 2.060"
  • Overall Width Riveted: 1.970"
  • Pin Diameter (E): 0.375"
  • Sidebar Height (F): 0.750"
  • Barrel Diameter (H): 0.720"
  • Head Of Pin To Center Line (J): 0.970"
  • End Of Pin To Center Line Cottered (K): 1.090"
  • End Of Pin To Center Line Riveted: 1.000"
  • Sidebar Thickness (T): 0.190"
  • Maximum Allowable Sprocket Face (A): 0.690"
  • Barrel Length (X): 1.250"
  • Ultimate Strength: 12,150 LBS
  • Working Load: 1,400 LBS
  • Links Per 10ft Box: 74
  • Weight Per Foot: 2.5 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • C55L Conveyor Chain
  • High Quality C55L Chain
  • Extremely Durable
  • C55L Attachments Available
  • C55L Sprockets Available
  • Able To Travel In Both Directions
Featured image
  • Chain Number: C55L
  • Pitch (P): 1.631"
  • Overall Width Cottered (C): 2.060"
  • Overall Width Riveted: 1.970"
  • Pin Diameter (E): 0.375"
  • Sidebar Height (F): 0.750"
  • Barrel Diameter (H): 0.720"
  • Head Of Pin To Center Line (J): 0.970"
  • End Of Pin To Center Line Cottered (K): 1.090"
  • End Of Pin To Center Line Riveted: 1.000"
  • Sidebar Thickness (T): 0.190"
  • Maximum Allowable Sprocket Face (A): 0.690"
  • Barrel Length (X): 1.250"
  • Ultimate Strength: 12,150 LBS
  • Working Load: 1,400 LBS
  • Links Per 10ft Box: 74
  • Weight Per Foot: 2.5 LBS
