#50 Straight Sidebar Roller Chain - 10ft Box
#50 Straight Sidebar Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
Regular price
$199.99
$199.99
Unit price
per
In Stock
On Sale
Sold out
Product Code: C50-CHAIN
In Stock
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
C50 Straight Sidebar Roller Chain

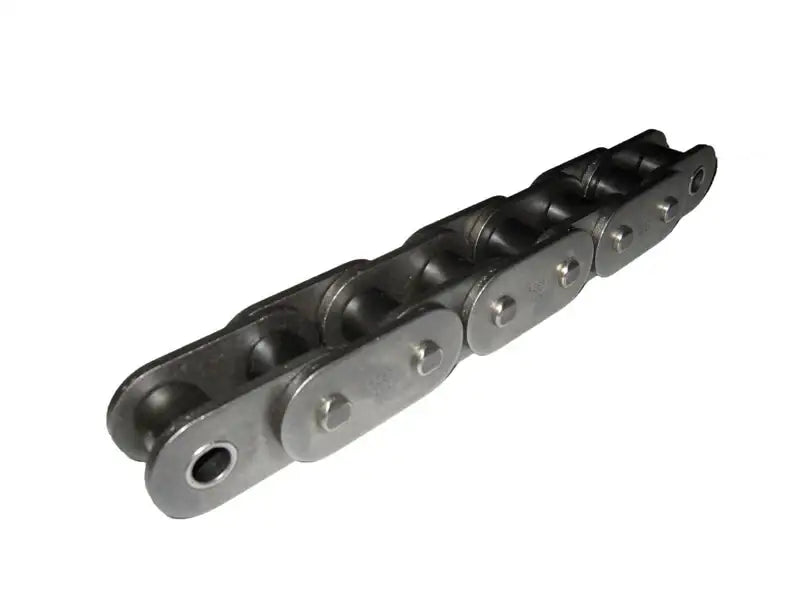

This #50 straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. This chain can run on ANSI #50 standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box or on 50ft reels, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. If you have any questions or are in need of a custom length please contact us.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
Chain Size: #50 Straight Sidebar Roller Chain Tensile Strength: 6,620lbs Pitch (P): 0.625" Roller Width (W): 0.375" Roller Diameter (R): 0.400" Plate Height (H): 0.545" Plate Thickness (T): 0.080" Pin Diameter (D): 0.200" Overall Width (F): 0.802" Weight Per Foot: 0.771 lbs/FT
Email:
Feature
- Size: #50 Straight Sidebar Roller Chain
- Ultimate Strength: 6,620lbs
- Heat Treated For Increased Fatigue
- Solid Rollers For Smooth Operation
- Straight Sidebars Increase Strength, Working Life, and Fatigue
- Runs On Standard Sprockets
- High Strength & High Quality
Chain Size: #50 Straight Sidebar Roller Chain Tensile Strength: 6,620lbs Pitch (P): 0.625" Roller Width (W): 0.375" Roller Diameter (R): 0.400" Plate Height (H): 0.545" Plate Thickness (T): 0.080" Pin Diameter (D): 0.200" Overall Width (F): 0.802" Weight Per Foot: 0.771 lbs/FT
