80B47 Sprocket | 80B47 Sprocket - Stock Bore Sprocket
Note:
Custom Cut to Length Chain Also Available
$275.99
SKU: 80B47-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
80B47 Sprocket | 80B47 Sprocket - Stock Bore Sprocket Features
80B47 Sprocket | 80B47 Sprocket - Stock Bore Sprocket Specifications

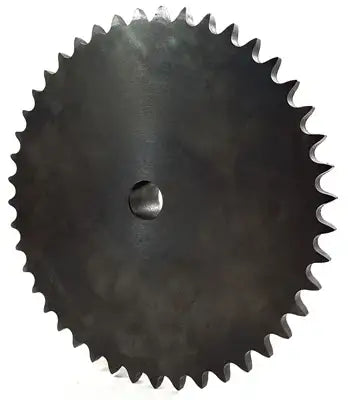

Our 80B47 sprocket is a high-quality precision industrial power transmission component made from premium C1045 steel and a black oxide coating. The 47 precision-machined teeth on this 80B47 sprocket are designed to mate perfectly with ANSI 80 roller chains while improving overall performance and wear life. At the same time, the base material of our 80B47 sprocket is 1045-carbon steel, which provides higher tensile strength, Brinell hardness, and yield strength compared to the standard 1018 steel used by other brands. Finally, this sprocket undergoes specific black oxide coating processes to protect it in mildly corrosive environments, such as outdoor or humid applications. More specific to this sprocket itself, it is 15.540" in diameter (O.D.) and is a b-hub configuration (hub on one side), and is supplied with a plain stock bore. Stock bore b-hub sprockets can be bored to specific shaft sizes and typically include a key-way and two set screws for drive applications or utilize a bearing type for idler applications. We also supply custom 80B47 sprockets upon request. Discover the difference today when you choose our genuine tier-one 80B47 sprockets or one of our premium roller chain products! For additional information or to get a large quantity quote on 80B47 sprockets, contact our customer support team, and we will be happy to assist you!
80B47 Sprocket Dimensions
- Part #: 80B47
- Tooth Count: 47
- Outside Diameter (O.D.): 15.540"
- Type: B
- Stock Bore: 1.25"
- Recommended Max. Bore: 3.25"
- Hub Diameter: 4.75"
- Length Thru Bore: 2"
- Weight: 34 LBS
- Part #: 80B47
- Tooth Count: 47
- Outside Diameter (O.D.): 15.540"
- Type: B
- Stock Bore: 1.25"
- Recommended Max. Bore: 3.25"
- Hub Diameter: 4.75"
- Length Thru Bore: 2"
- Weight: 34 LBS
