RCSM-14 Bearing | RCSM-14 Vibration Damping Insert Bearing

RCSM-14 Bearing | RCSM-14 Vibration Damping Insert Bearing

Note: Custom Cut to Length Chain Also Available
Regular price $34.77
$34.77
In Stock
On Sale Sold out
Product Code: 5652-RCSM-14-BEARING
In Stock
Shipping calculated at checkout.

Login to Request a Quote

View full details

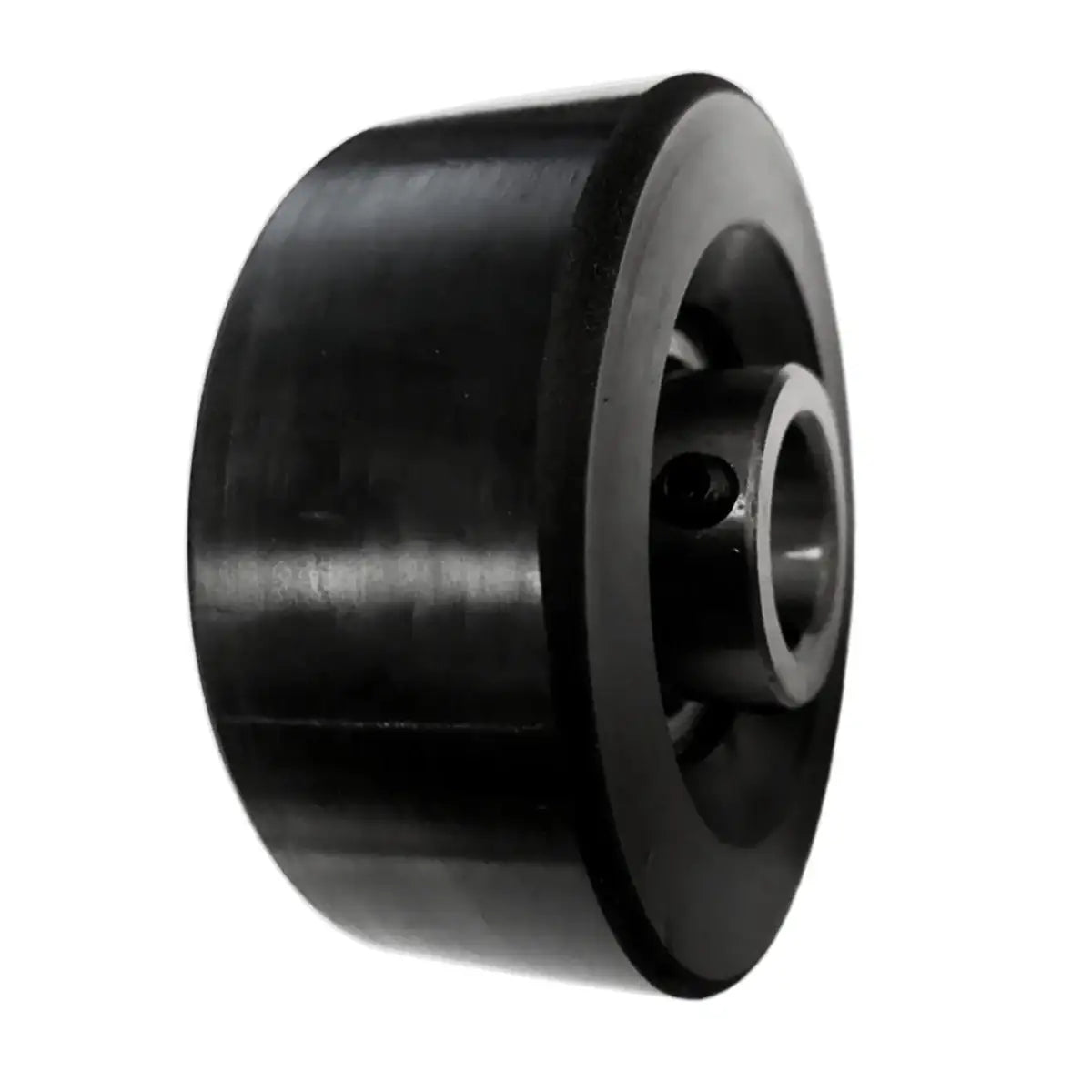

Our vibration-damping RCSM-14 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 7/8" bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The RCSM-14 bearing utilises an eccentric locking collar for securing onto a 7/8" shaft and a static conductive rubber cushion that dampens vibrations. For additional information or to get a quote on RCSM-14 bearings, contact our customer support team, and we will be happy to assist you!

RCSM-14 Bearing Dimensions


  • Unit Part #: RCSM-14
  • Bearing I.D: 7/8"
  • Dimension (D): 2-17/32"
  • Dimension (A): 1"
  • Dimension (M): 1-25/32"
  • Dimension (d1): 1-1/2"
  • Dimension (S1): 59/64"
  • Dimension (T): 1/2"
  • Bearing Part #: CSA205-14
  • Rubber Part #: RCSM 52/65
  • Housing Radial Load Rating: 300 LBF
  • Weight: 1.19 LBS

Feature

  • High-Performance Insert Bearing
  • C3 Precision Rating
  • Interchanges With Other Brands
  • Vibration Damping
Featured image
  • Unit Part #: RCSM-14
  • Bearing I.D: 7/8"
  • Dimension (D): 2-17/32"
  • Dimension (A): 1"
  • Dimension (M): 1-25/32"
  • Dimension (d1): 1-1/2"
  • Dimension (S1): 59/64"
  • Dimension (T): 1/2"
  • Bearing Part #: CSA205-14
  • Rubber Part #: RCSM 52/65
  • Housing Radial Load Rating: 300 LBF
  • Weight: 1.19 LBS
