SAF534 Housing | SAF 534 Split Pillow Block Housing

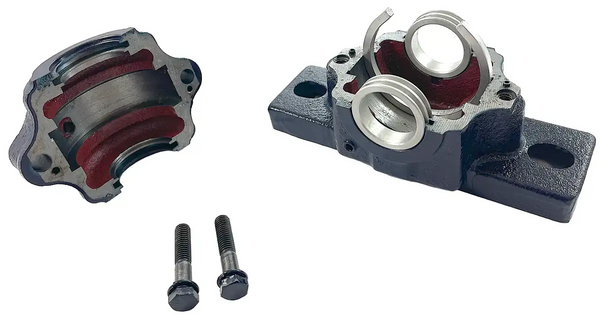

SAF 534 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a SAF534 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our SAF534 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. SAF534 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our SAF 534 housing, contact our customer support team, and we will be happy to assist you!

SAF 534 Housing Dimensions

• Housing #: SAF534
• Dimension (D): 310mm
• Dimension (a): 24-3/4"
• Dimension (b): 6-3/4"
• Dimension (c): 2-3/4"
• Dimension (h): 7-1/16"
• Dimension (W): 14-3/16"
• Dimension (M - max.): 21-5/8"
• Dimension (M - min.): 19-3/8"
• Dimension (n): 4-1/4"
• Dimension (S): 1"
• Cap Bolt Size: 3/4-10
• Style: 3

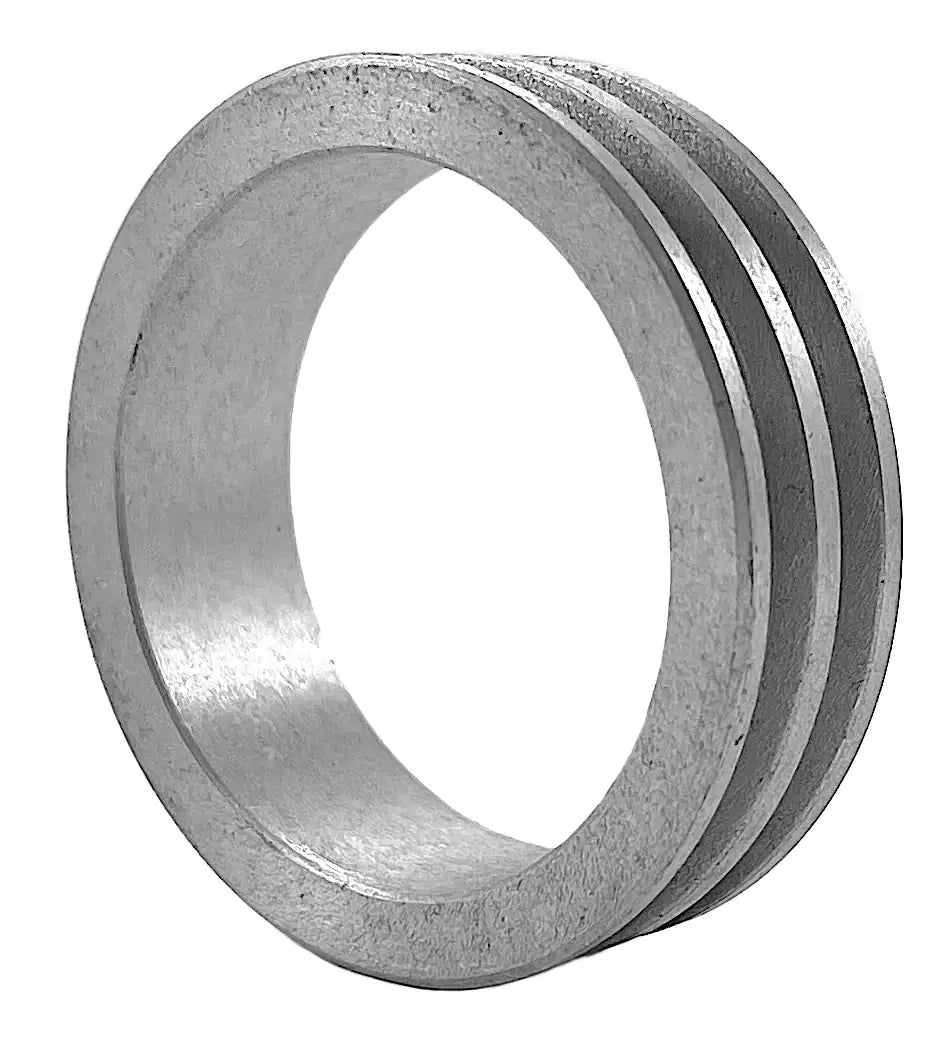

• Labyrinth Seal Ring: LER140
• Stabilizing Ring: SR34-0
• Weight (LBS): 207.20
