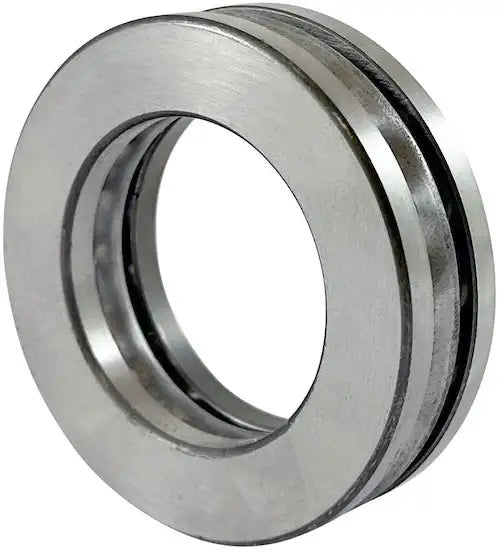

The 902 thrust bearing is a single direction, thrust ball bearing with a 15mm bore and grooved races. What separates this bearing from some of the other 902 bearings on the market is its precision-made components, 52100 thru-hardened steel rings and balls, and high-quality, low-carbon steel band. This bearing is also supplied with light oil lubrication from the factory and features an oil hole in the band for relubricating. Thrust ball bearings are rotary bearings designed to support a predominately axial load. 902 bearings are composed of bearing balls that are supported in a ring and allow for use in applications with low thrust and little axial load. For additional information or to get a quote on 902 thrust ball bearings, contact our customer support team, and we will be happy to assist you!
902 Thrust Bearing Dimensions
- Bearing Part #: 902
- Dimension (A): 15mm
- Dimension (A): 0.5906"
- Dimension (A1): 0.598"
- Dimension (B): 35mm
- Dimension (B): 1.378"
- Dimension (H): 14mm
- Dimension (H): 0.551"
- Number of Balls: 9
- Ball Size: 0.281"
- Static Load Rating: 5500 LBS
- Dynamic Load Rating: 4850 LBS
- Speed Limit: 6800 RPM
- Weight: 0.15 LBS
Feature
- Premium Thrust Ball Bearing
- Interchanges With Other Brands
- Precision Manufactured
- Made From High-Quality Steel
- High Performance and Durable
- Bearing Part #: 902
- Dimension (A): 15mm
- Dimension (A): 0.5906"
- Dimension (A1): 0.598"
- Dimension (B): 35mm
- Dimension (B): 1.378"
- Dimension (H): 14mm
- Dimension (H): 0.551"
- Number of Balls: 9
- Ball Size: 0.281"
- Static Load Rating: 5500 LBS
- Dynamic Load Rating: 4850 LBS
- Speed Limit: 6800 RPM
- Weight: 0.15 LBS
