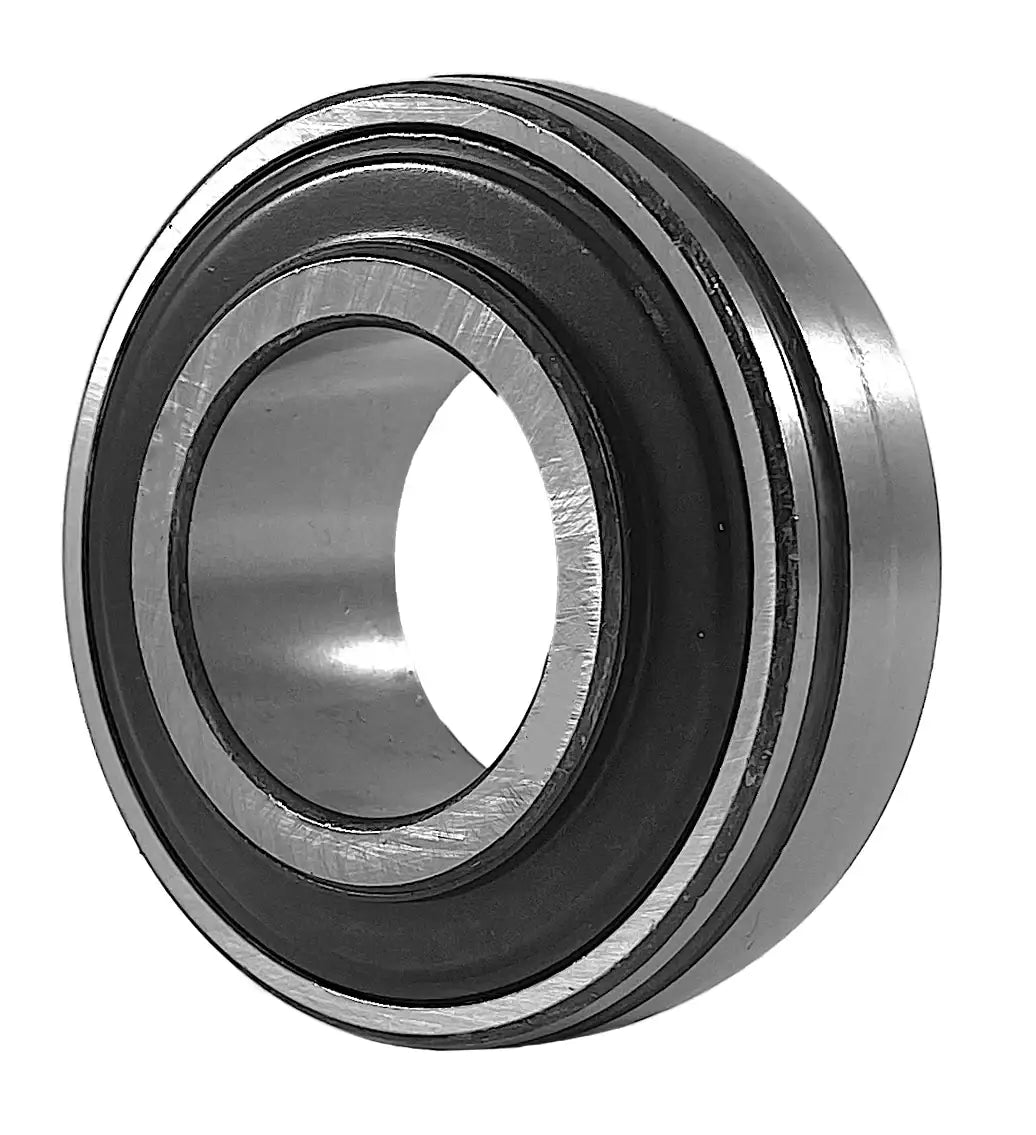

UK216-234 Insert Bearing | 2-3/4" Tapered Adapter Insert Bearing

UK216-234 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 2-3/4" bore. Our UK216-234 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK216-234 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK216-234 bearings, contact our customer service and, we will be happy to assist you!

UK216-234 Bearing Dimensions

• Part #: UK 216
• Shaft Diameter (d): 2-3/4"
• Dimension (d): 3.1496"
• Dimension (D): 5.5118"
• Dimension (Bi): 1.7717"
• Dimension (Be): 1.2992"
• Dimension (T): 0.3740"
• Dynamic Load Rating (LBS): 16,325
• Static Load Rating (LBS): 11,992
• Fits Housing Size: 217 / X16
• Weight (LBS): 6.1
