14X50 Round Link Chain | 50mm X 14mm Chain - Mining Chain

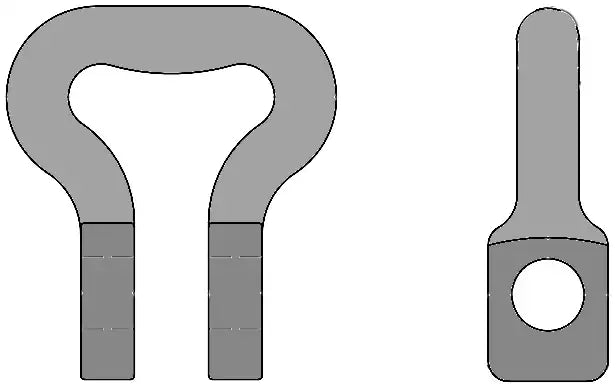

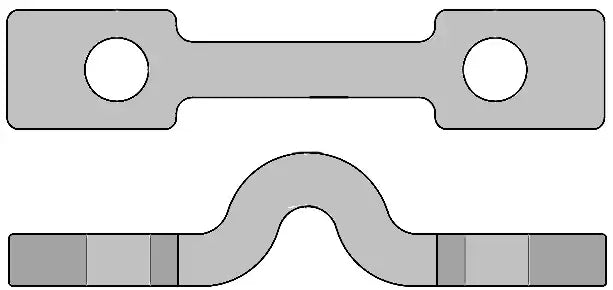

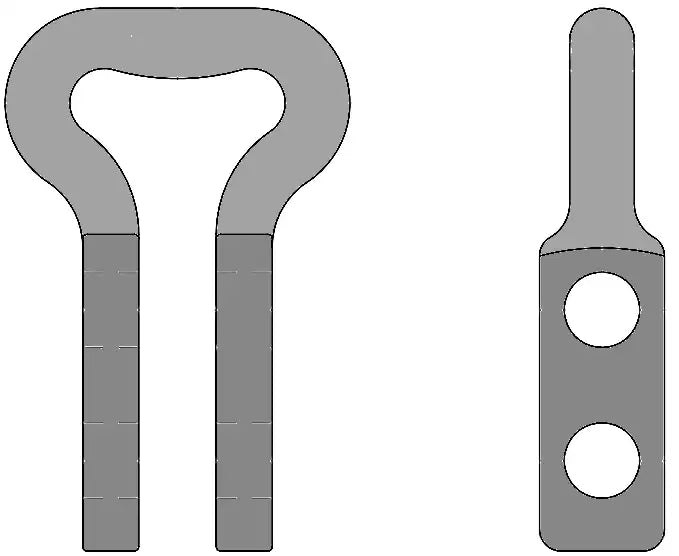

14X50 chain is a link chain used in mining, ash handling, cement production, and other heavy-duty applications. Link chains provide ample flexibility because of their highly versatile design and are high strength! Our 14X50 round link chain has a 50mm pitch and 14mm link bar circumference. Additionally, it is precision made from high-quality steel alloys and is built to exceed standards with superior dimensional consistency and interchangeability. We also supply a range of accessories for 14X50 round link chains like sprockets, master links, shackles, and mounting hardware. For additional information or a quote on the 14X50 link chain, contact our customer support team; we will be happy to assist you!

14X50 Chain Dimensions

• Chain Size: 14X50
• Pitch (P): 1.97"
• Dimension (D): 0.55"
• Dimension (B2): 1.81"
• Hardness: 40.00 RC
• Hardness: 375.00 BHN
• Minimum Units: 55,000 LBS
• Weight: 2.70 LBS/ FT
• Note 1: Dimensions are +/- 0.039"
• Note 2: Chain is Through-Hardened
